Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Service and Repair >> Overhaul >> Repair Instructions >> 54. Water Pump Installation

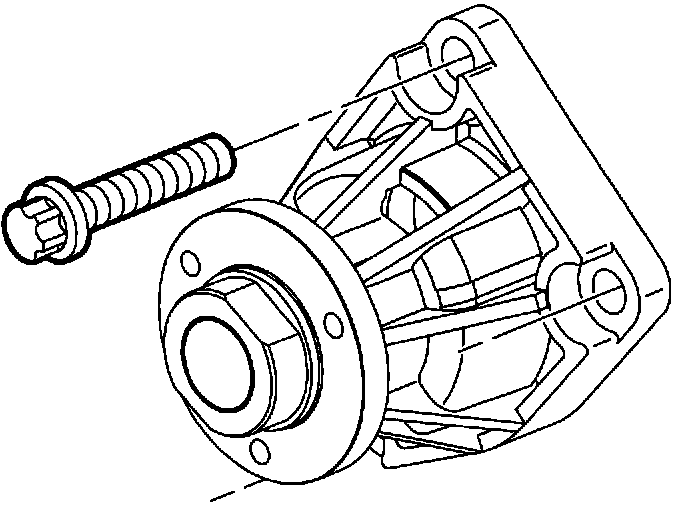

54. Water Pump Installation






1. Coat water pump seal ring with silicone grease.
2. Install water pump seal.
3. Install water pump.
4. Install water pump bolts.
- Torque: 25 Nm (18 ft. lbs.)
