25. Piston, Connecting Rod, and Bearing Removal

REMOVAL

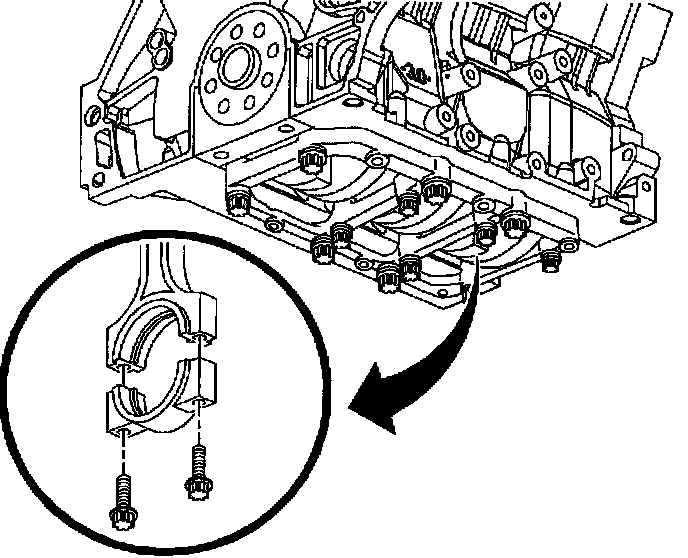

1. Rotate crankshaft until the rod bearing cap bolts are accessible.
2. Remove rod bearing cap bolts.
3. Remove rod bearing cap.

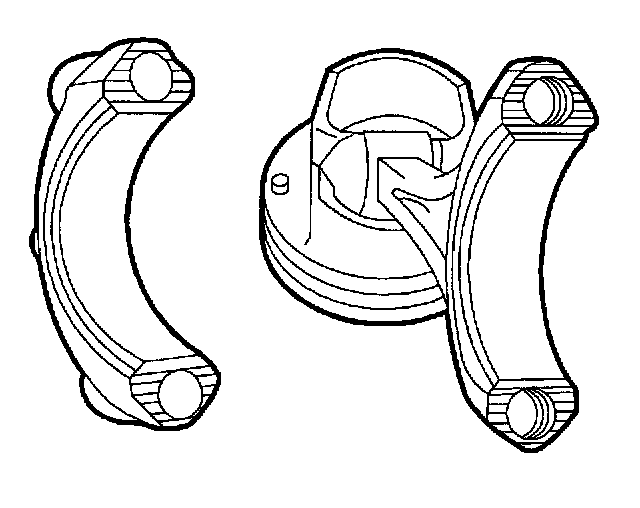

IMPORTANT: Re-install the rod cap to the rod when the piston is removed from the engine block. The rod and the cap are not interchangeable. The mating surfaces must be protected from damage.

4. Use a block of wood or use a soft material to drive each piston out of cylinder.

CAUTION: DO NOT WIPE ROD CAP MATING SURFACES WITH RAG. LINT OR FOREIGN DEBRIS WILL NOT ALLOW PROPER SURFACE CONTACT.





5. Remove rod bearing cap insert.
