Oil Pan Replacement

REMOVAL

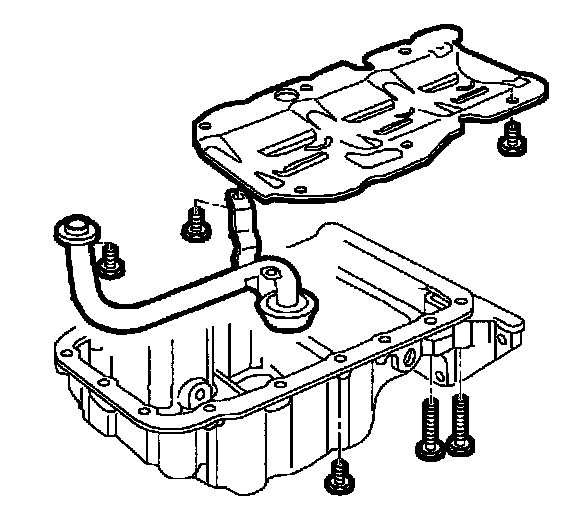

Note: The Saturn LS L81 uses RTV to seal oil pan to engine block not a gasket as shown in typical oil pan representation.





1. Remove nose cone bracket bolts from oil pan.
2. Remove lower transmission flange to oil pan bolts.

3. Remove oil pan bolts.

IMPORTANT: When removing oil pan, use only sedinated pry points to prevent damage to sealing flange. RTV cutter tool SA9123 may be used to brake the oil pan loose from the engine block.

4. Use pry point to brake loose the seal. Bump the pan with a rubber mallet to loosen the pan from the engine block.
5. Remove oil pan.

INSTALLATION

IMPORTANT: Alignment of the oil pan is critical to ensure transaxle nose cone-to-oil pan and transaxle mating flange-to-oil pan alignment. Application of RTV is critical to ensure positive seal of the chamfered sealing flange on the oil pan-to-engine block mating surface. After pan has been placed on the engine block, it may not be moved as this will not allow the sealant to function properly in the chamfered flange.

1. Clean oil pan and engine block sealing flanges with a chlorinated solvent such as carburetor spray cleaner, brake clean, or alcohol Saturn P/N 21007432 (or equivalent).
2. Apply a 2 mm bead of Loctite (R) 5900 (or equivalent) 3 mm from the inside edge of the oil pan.

IMPORTANT: If the repair is being performed out of vehicle, attach the transaxle nose cone bracket to engine block and use strait edge at the transaxle-to-engine mating flange for positive oil pan alignment to the engine block.





3. Assemble oil pan to engine block.
a. Use the transaxle nose cone as guide for fore/aft alignment.
b. Use the transaxle-to-engine block (or straight edge if transaxle is removed) as left/right alignment.
c. Install nose cone bracket-to-oil pan bolts and tighten finger the in order align fore/aft position.
d. Install transaxle-to-oil pan bolts and tighten finger tight in order to align right/left position. (If transaxle is not installed, use straight edge for alignment.)
e. Install oil pan bolts, use thread locking compound threadlocker Loctite (R) 242 or equivalent.
