Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Schematics By Component Name >> Relays >> Fog Lamp

Fog Lamp

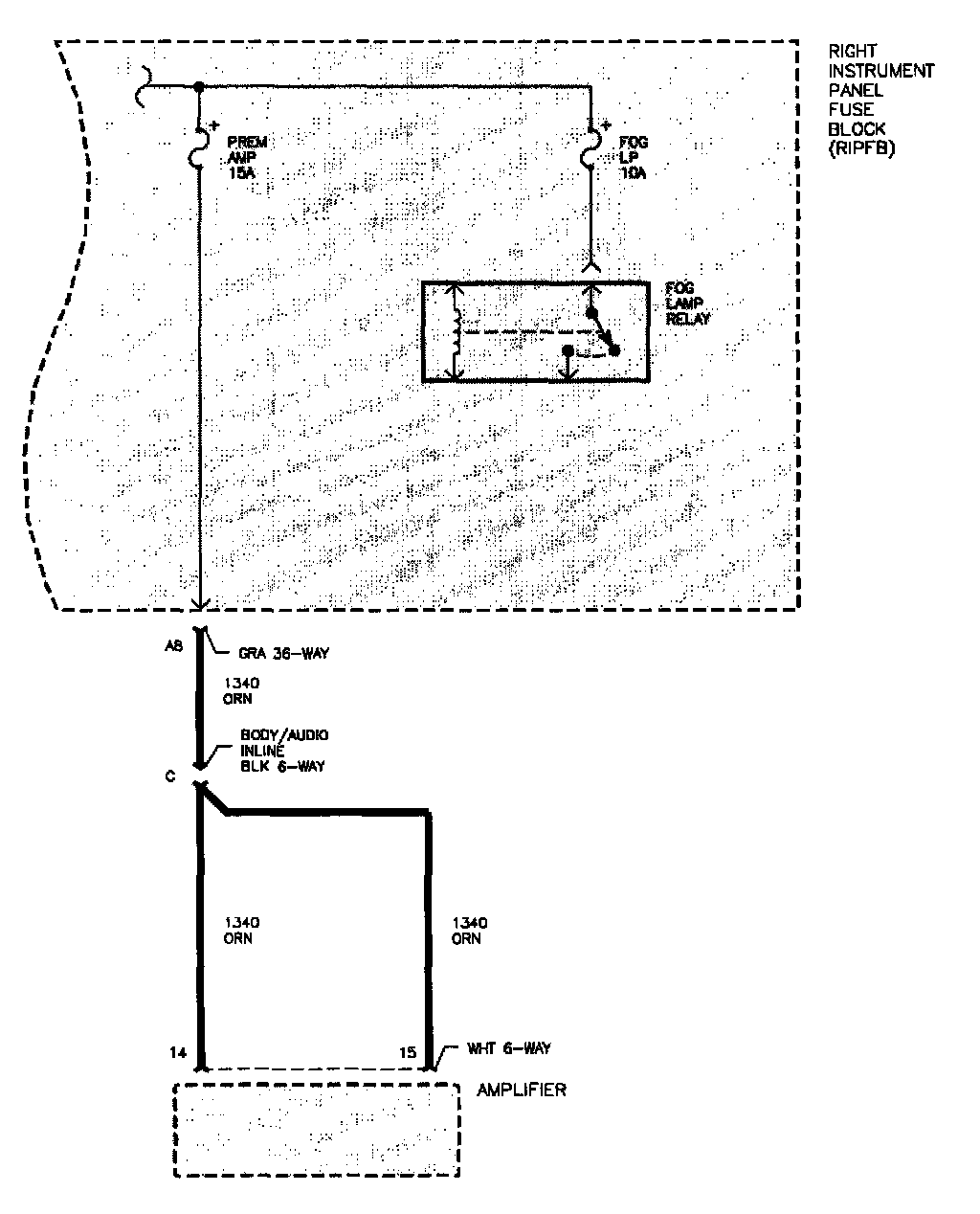

Fuse Block Details Schematics (Part 8 Of 16):
