Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Ground Distribution Diagrams >> Left Front Splice Pack

Left Front Splice Pack

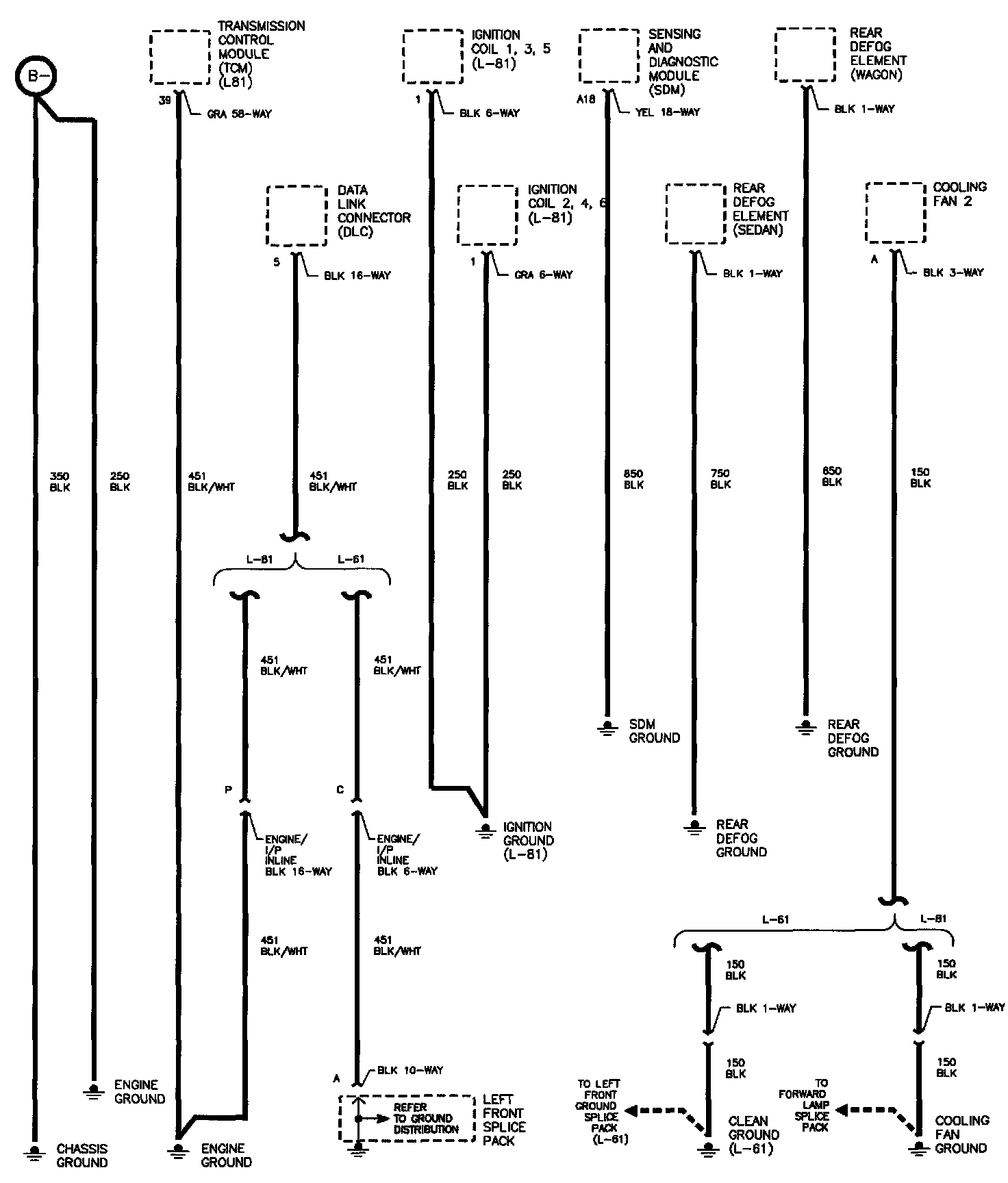

Ground Distribution Schematics (Part 5 Of 12):
