Radio (Audio) Uplevel Audio System Schematic

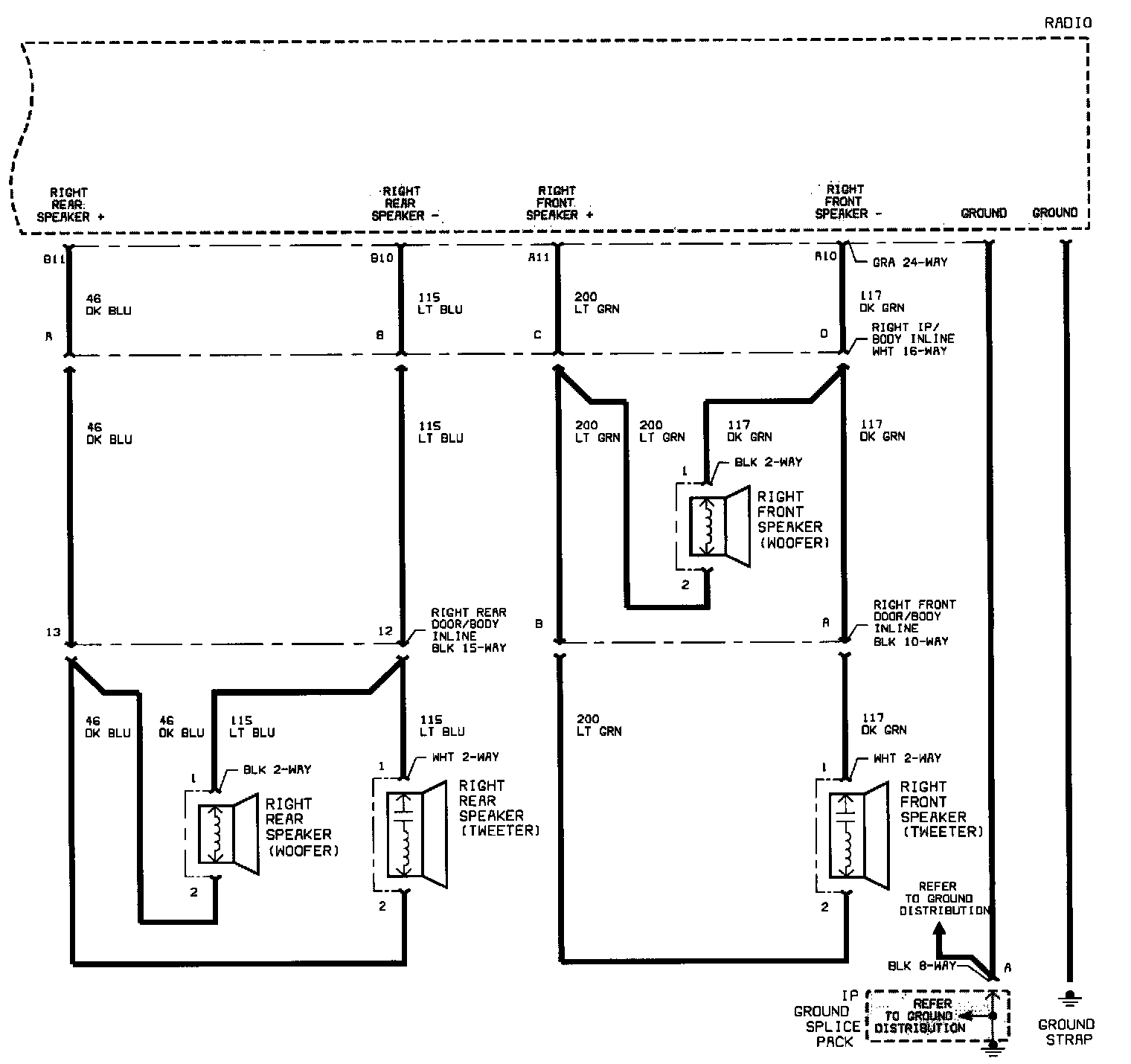

Radio (Audio) Uplevel Audio System Schematic (Part 1 Of 2):

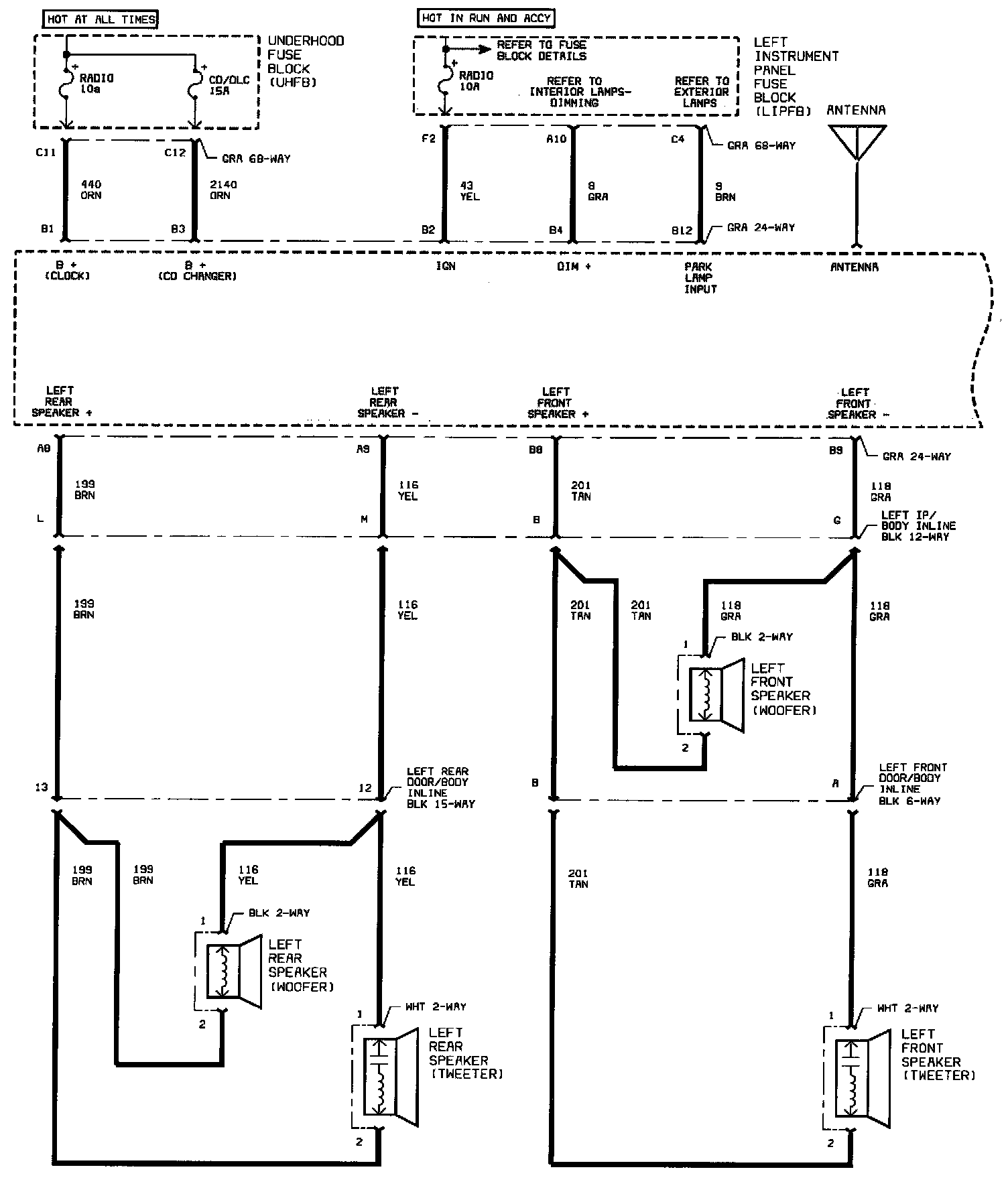

Radio (Audio) Uplevel Audio System Schematic (Part 2 Of 2):
