Radio (Audio) SYS W/ CD Changer/Player Schematic (Uplevel & Advanced Audio SYS)
Radio (Audio) SYS W/ CD Changer/Player Schematic (Uplevel & Advanced Audio SYS)

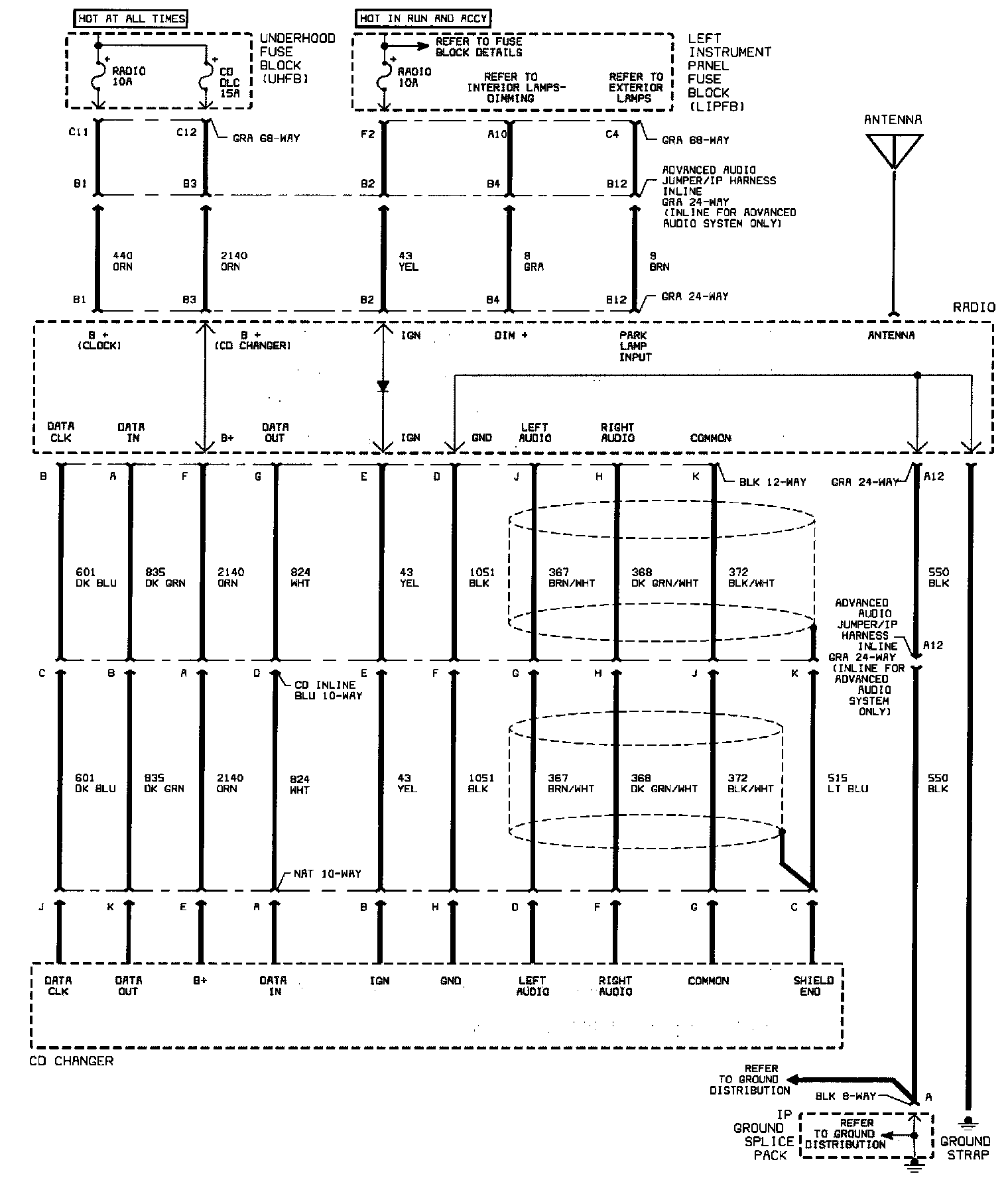

Radio (Audio) System With CD Changer/Player Schematic (Uplevel And Advanced Audio System):
