Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Emission Controls >> EGR Solenoid Control Circuit

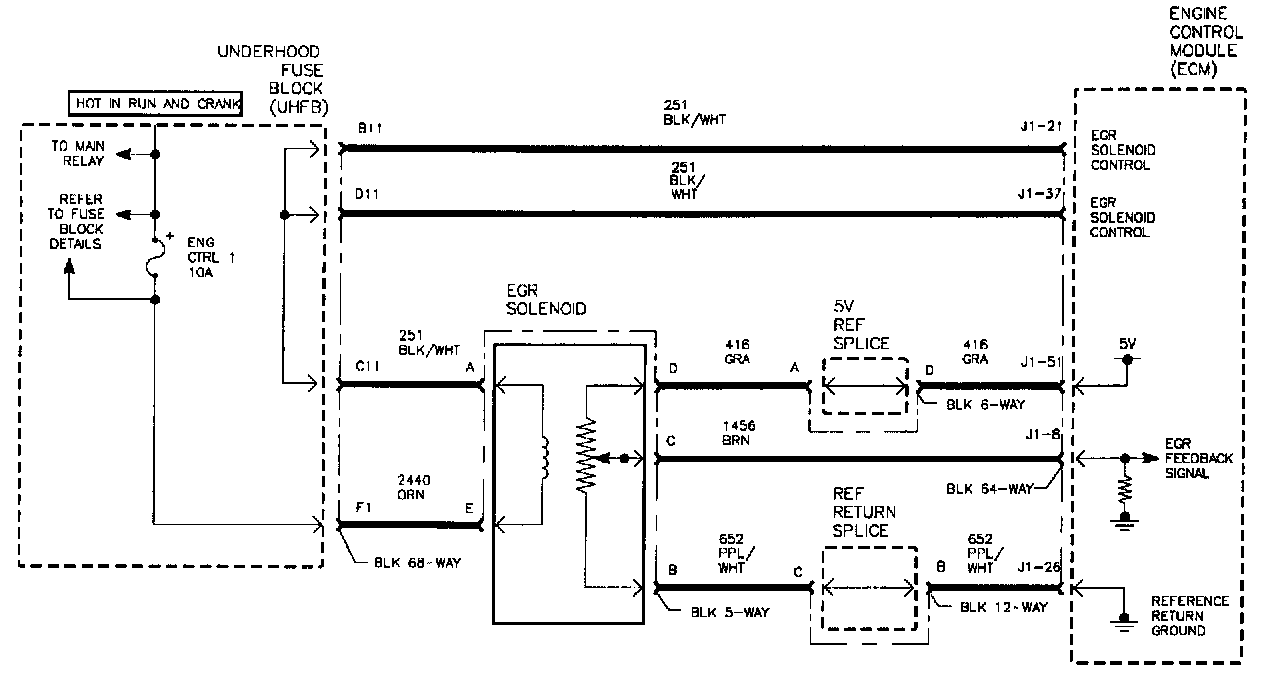

EGR Solenoid Control Circuit

Schematics:
