FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Fuse Block
>>
Underhood Fuse Block - Forward Lamp

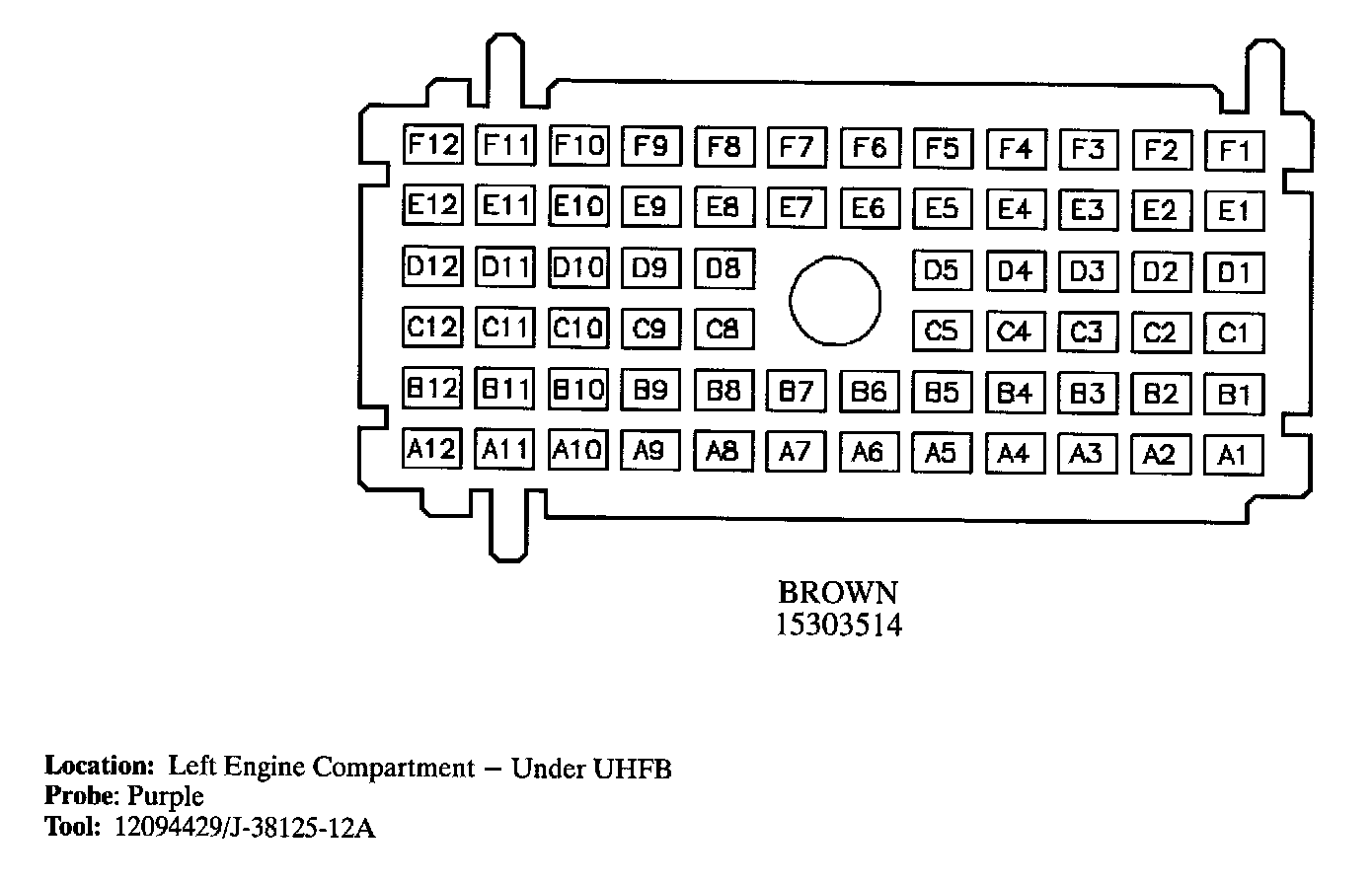

Underhood Fuse Block - Forward Lamp

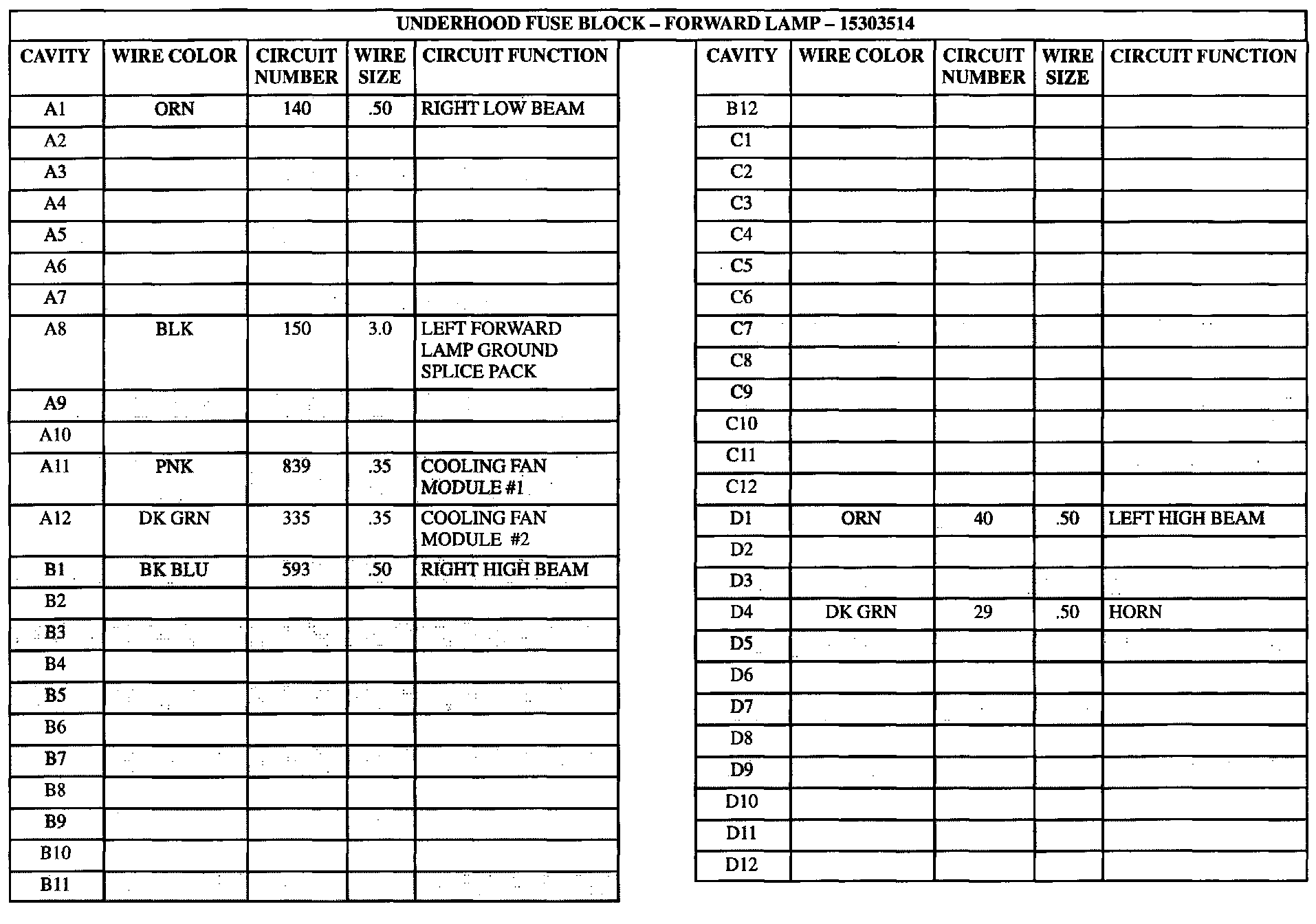

Underhood Fuse Block - Forward Lamp (Part 1 Of 3):
Underhood Fuse Block - Forward Lamp (Part 2 Of 3):

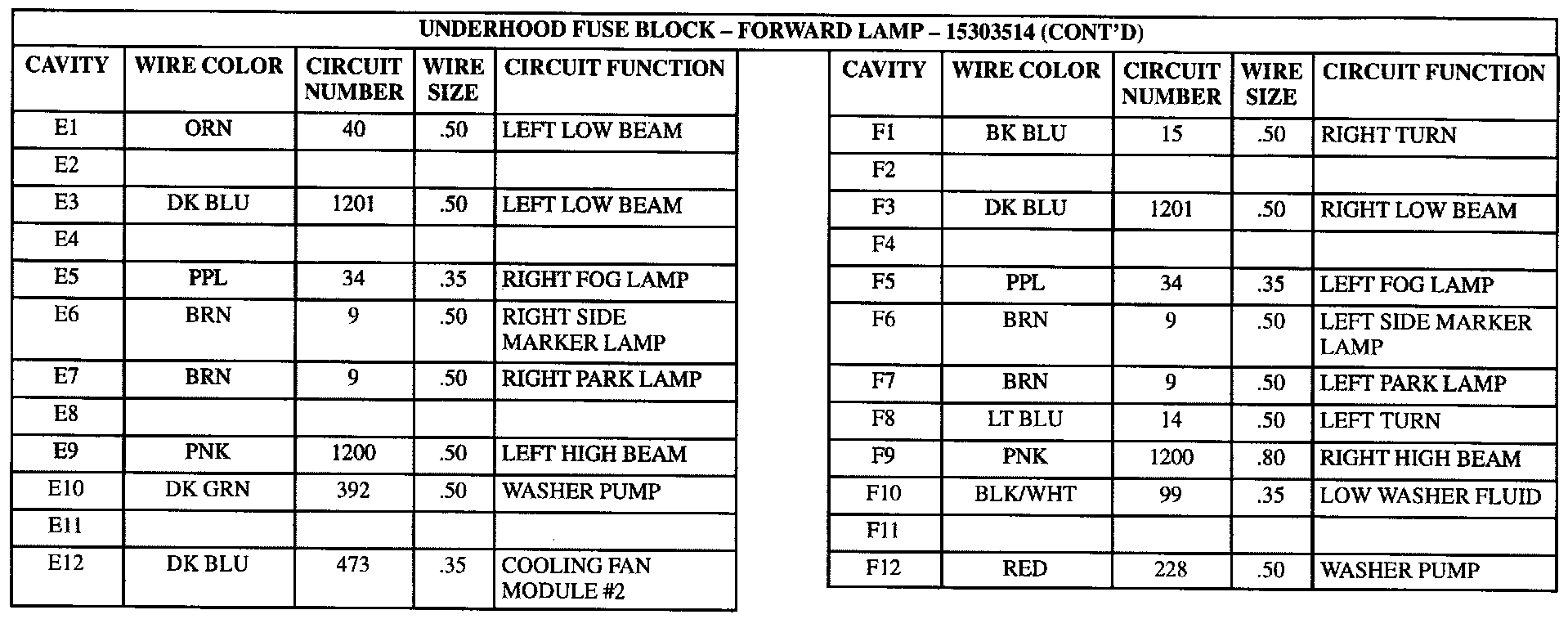

Underhood Fuse Block - Forward Lamp (Part 3 Of 3):
