Left I/P Fuse Block - I/P
Left I/P Fuse Block - I/P

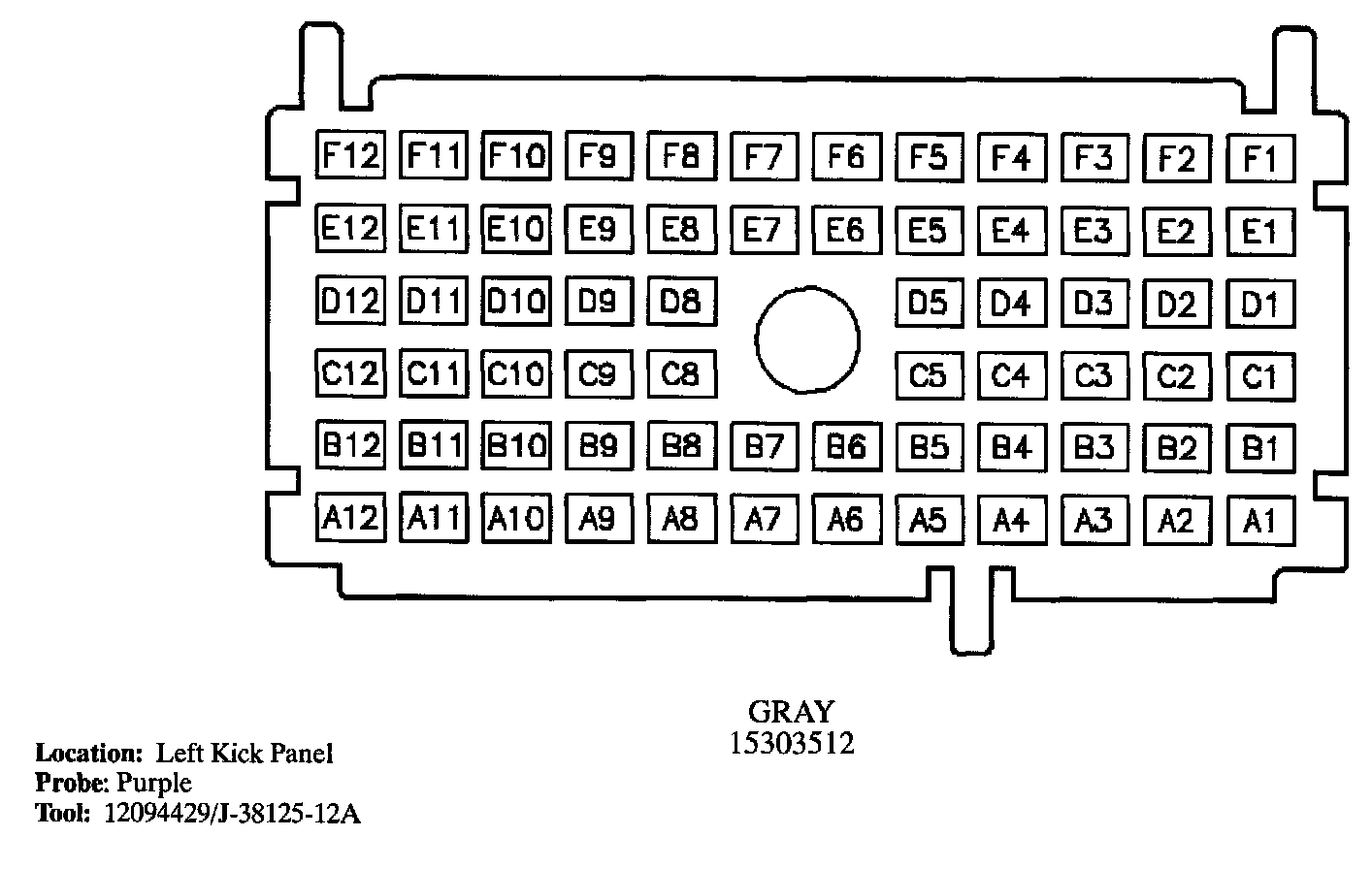

Left I/P Fuse Block - I/P (Part 1 Of 4):

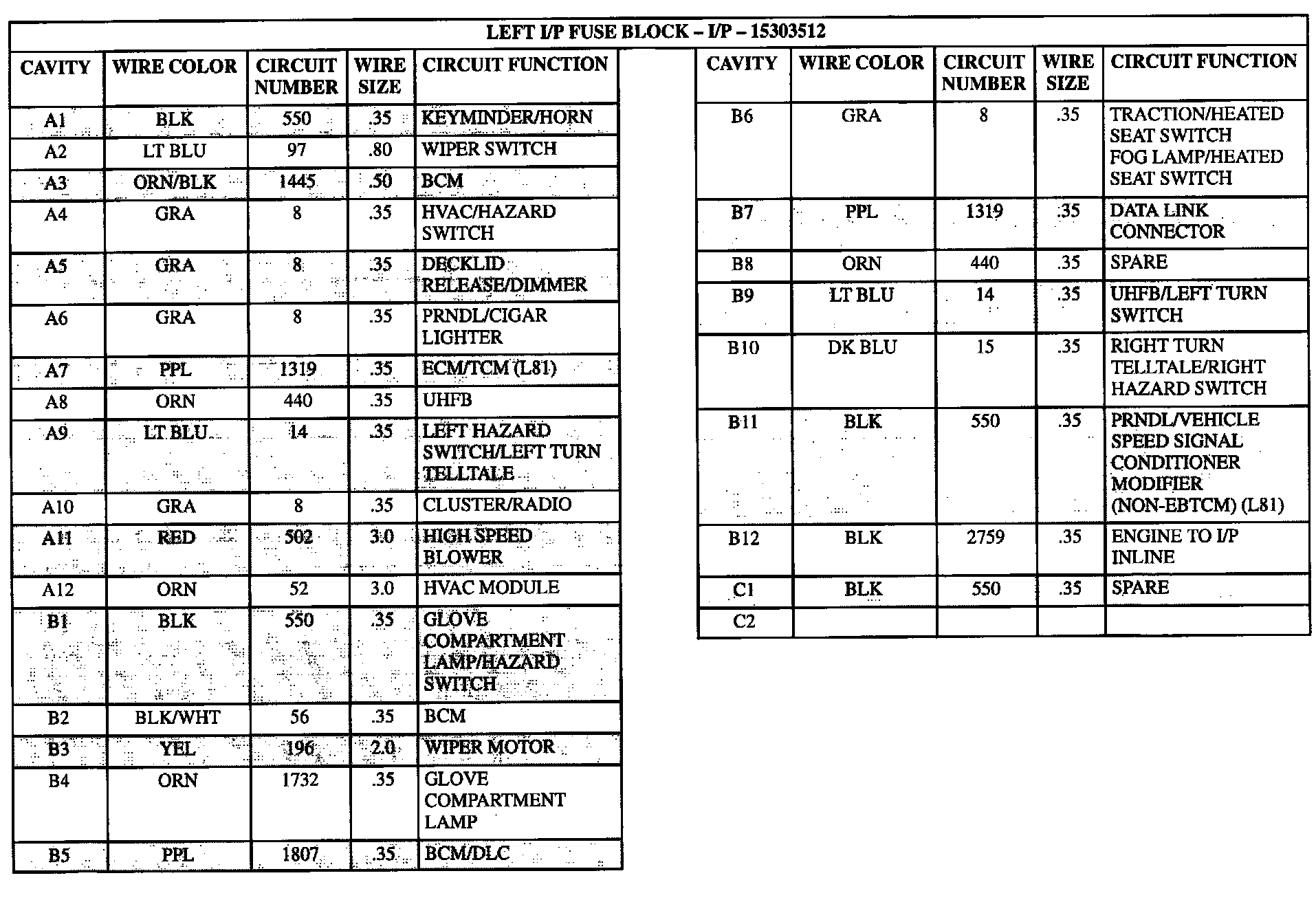

Left I/P Fuse Block - I/P (Part 2 Of 4):

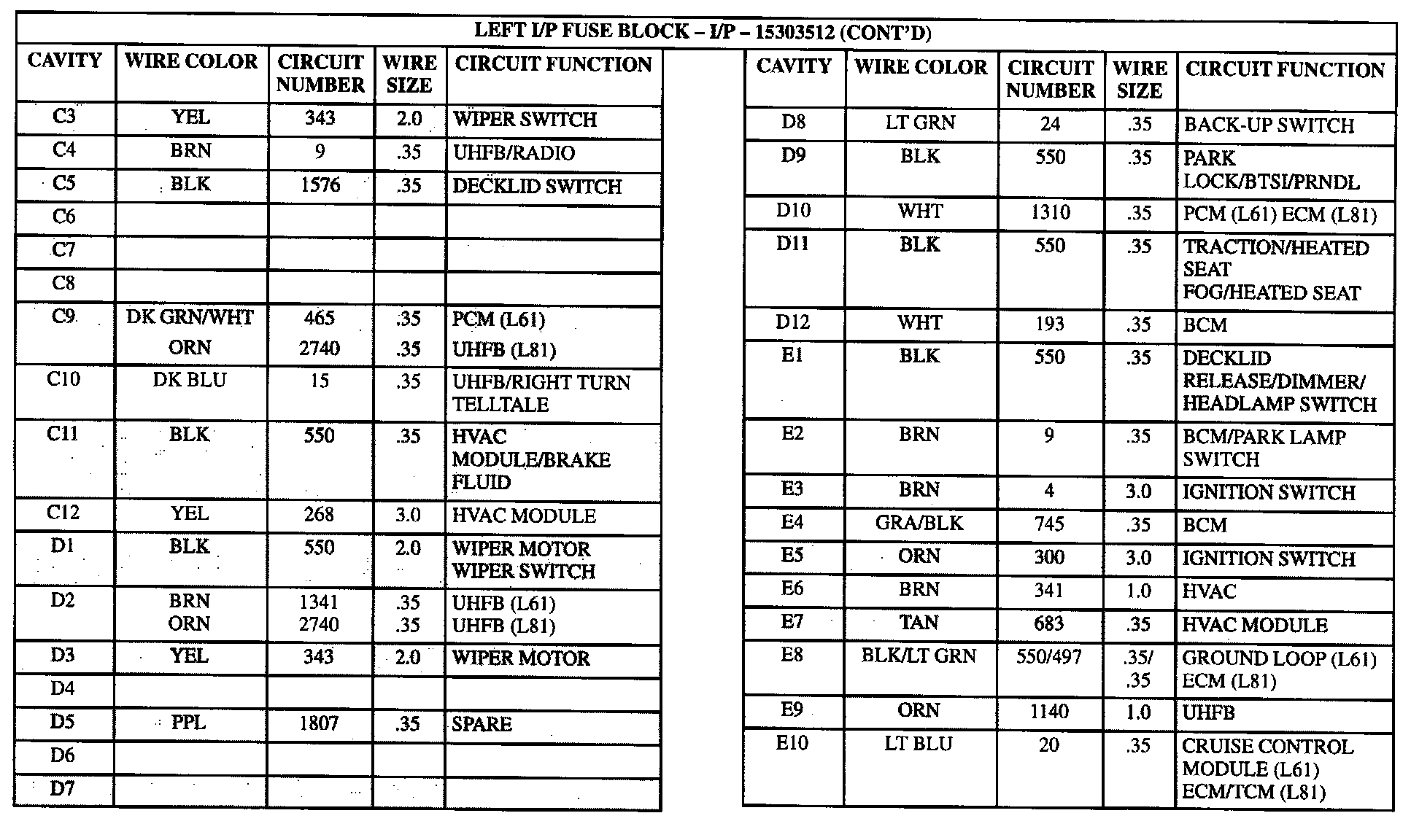

Left I/P Fuse Block - I/P (Part 3 Of 4):

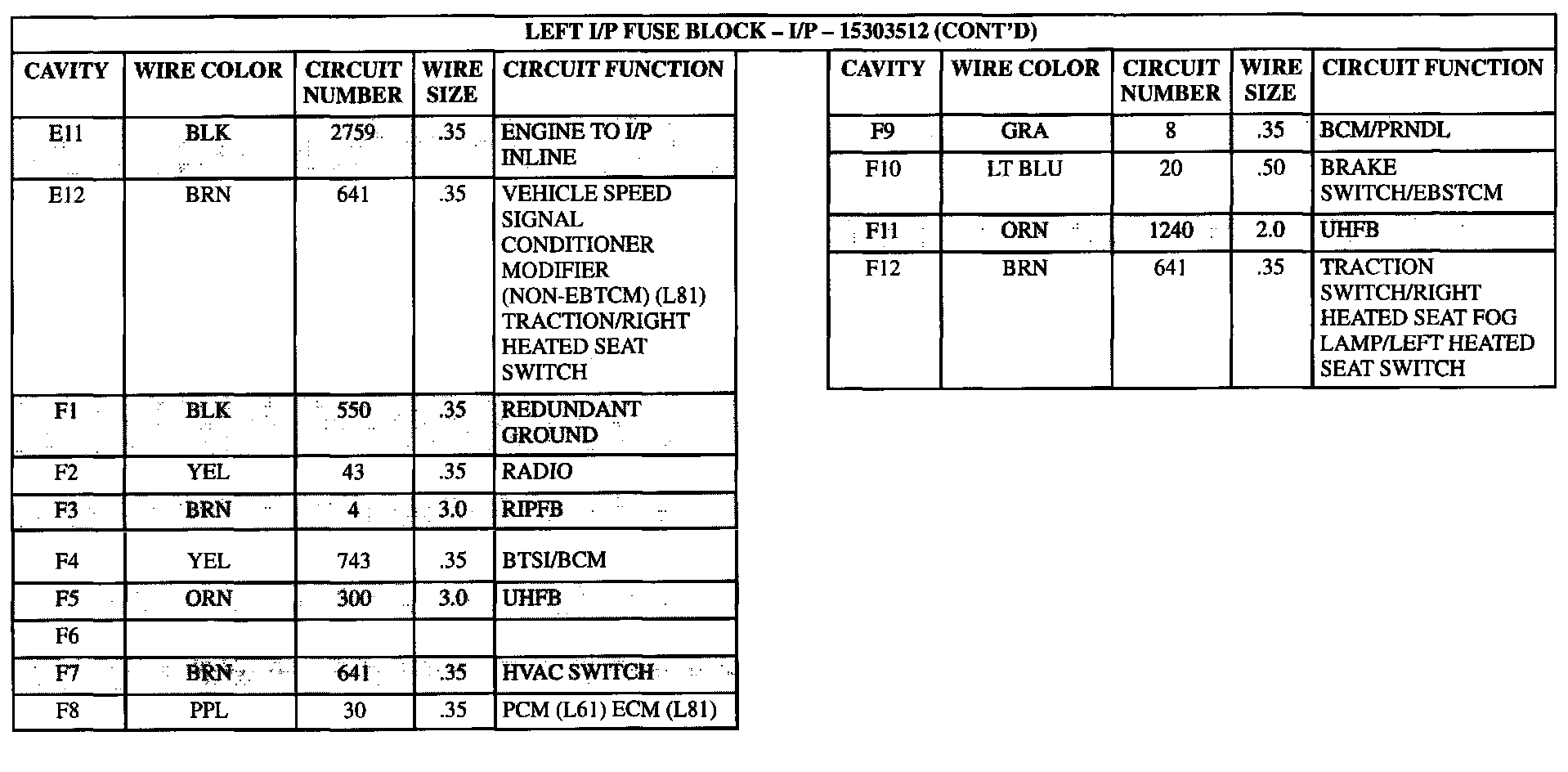

Left I/P Fuse Block - I/P (Part 4 Of 4):
