Home
>>
Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Premium Sound Inline To Radio
Premium Sound Inline To Radio

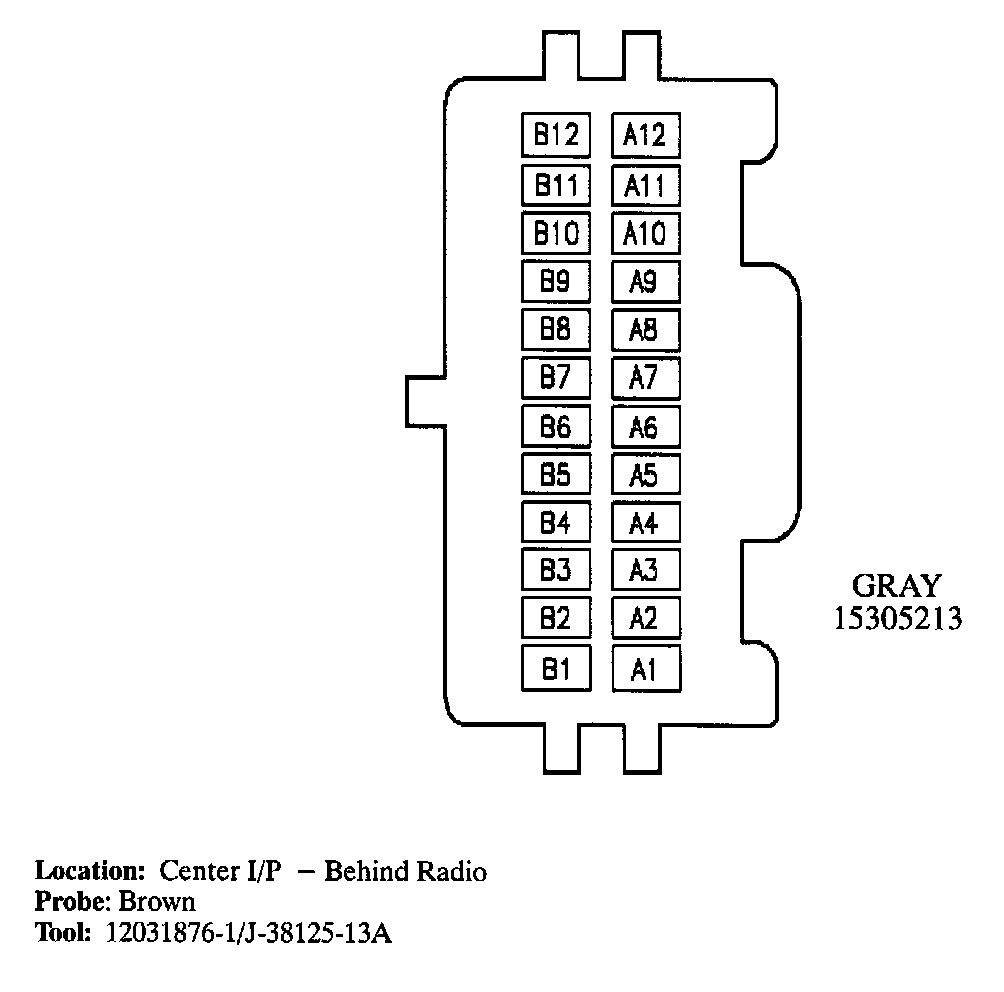

Premium Sound Inline To Radio (Part 1 Of 2):

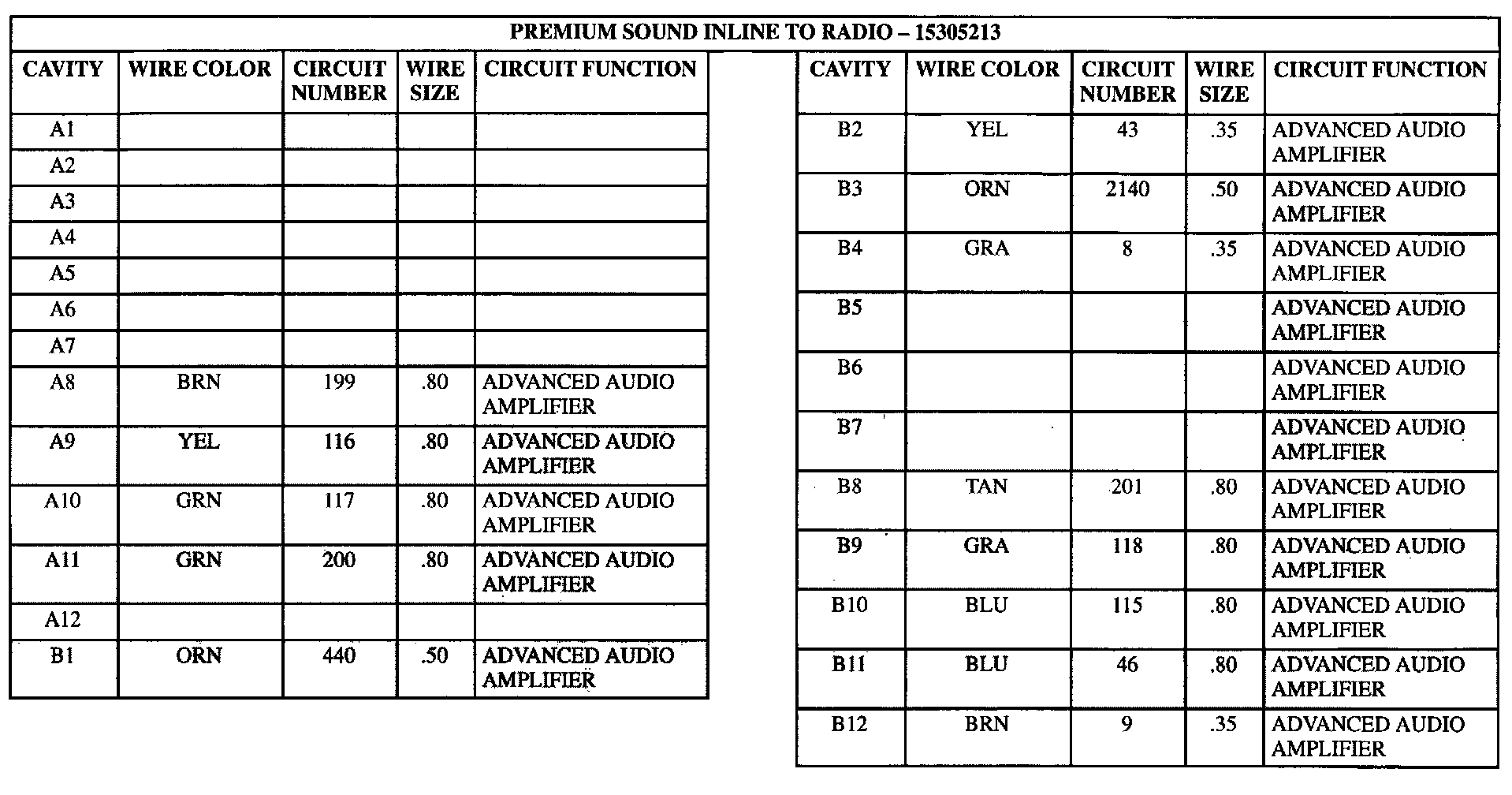

Premium Sound Inline To Radio (Part 2 Of 2):
