Inline Harness Connector Faces
Inline Harness Connector Faces

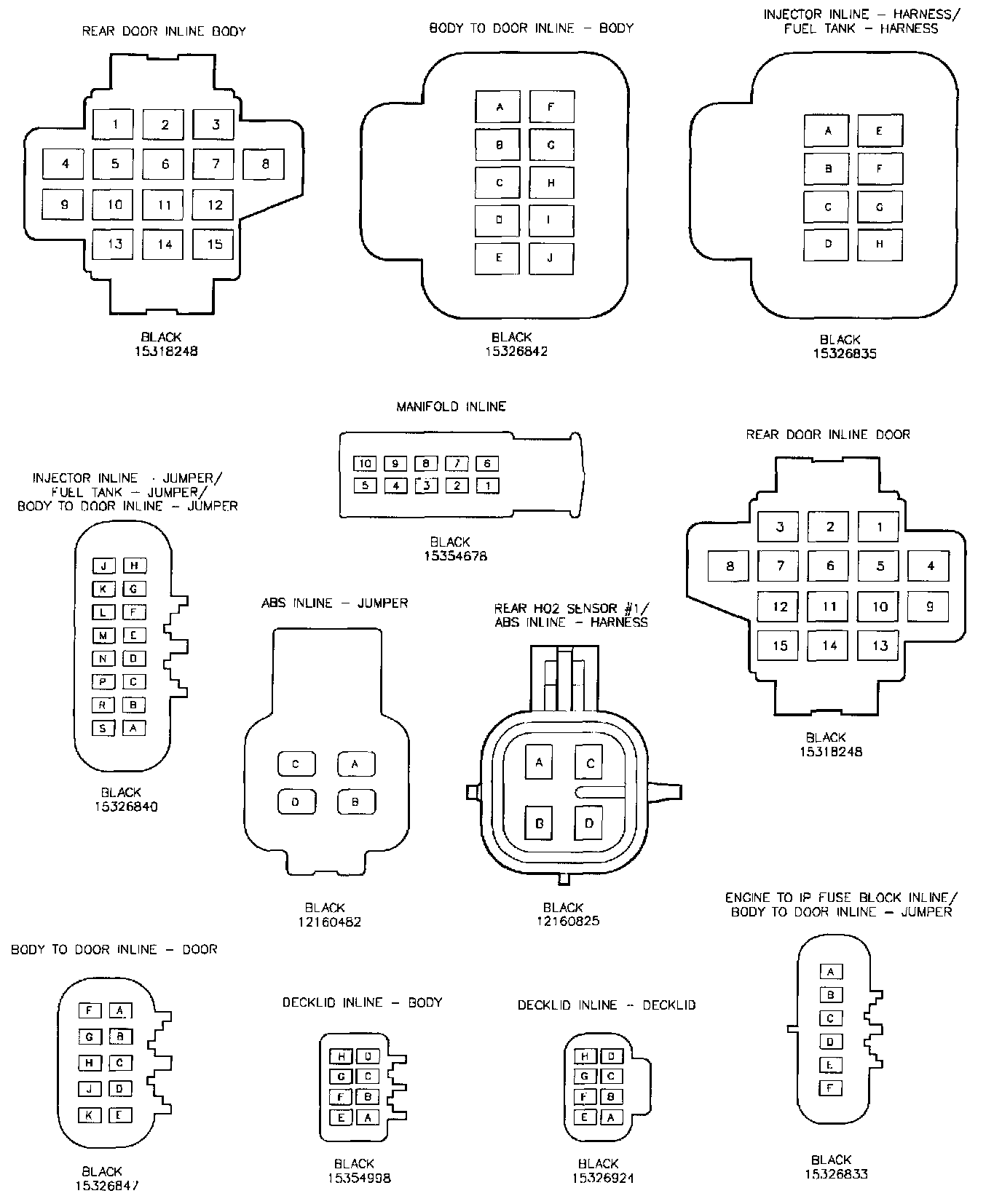

Inline Harness Connector Faces (Part 1 Of 2):

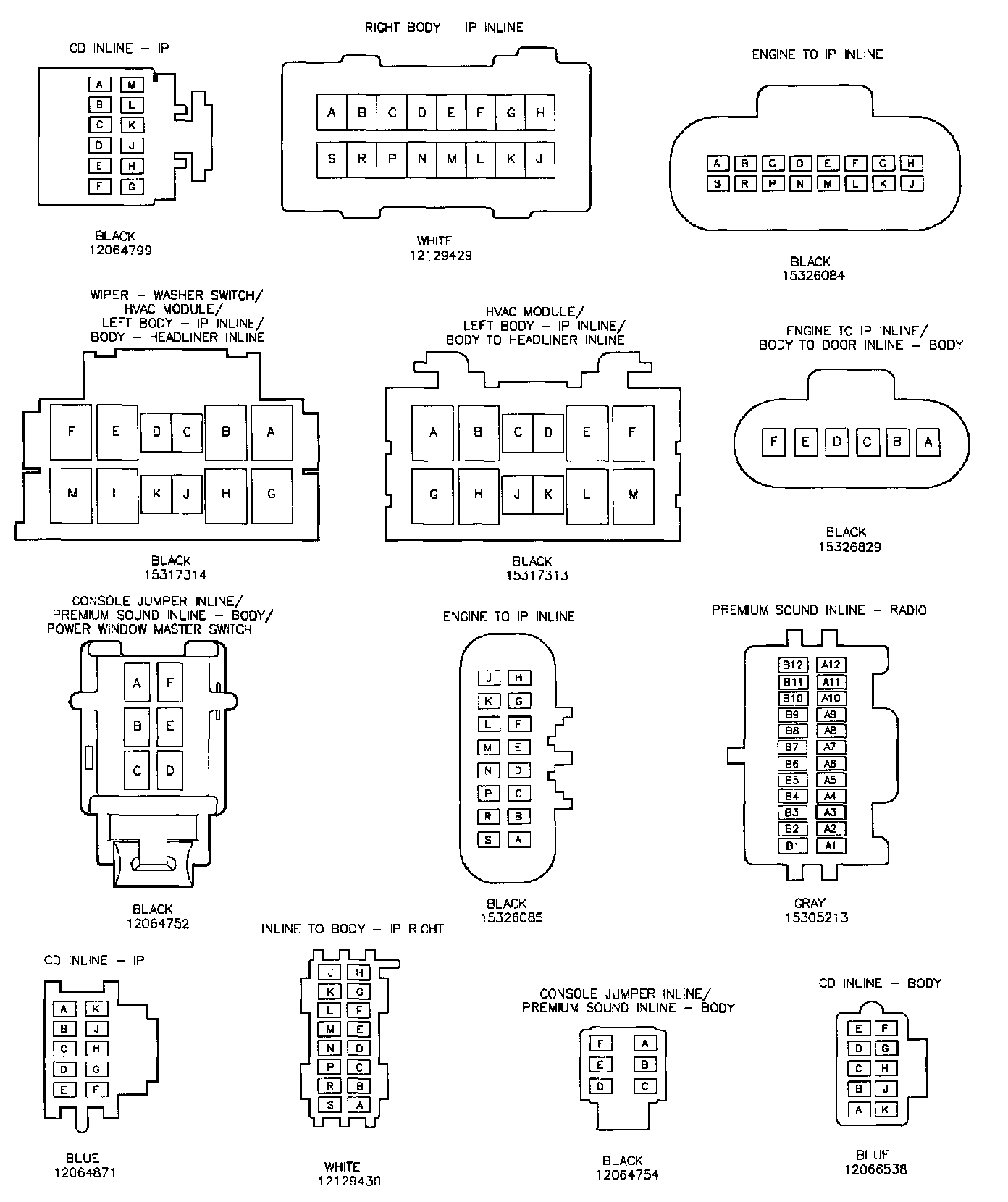

Inline Harness Connector Faces (Part 2 Of 2):
