FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Left Power Mirror/Heated Mirror
Left Power Mirror/Heated Mirror

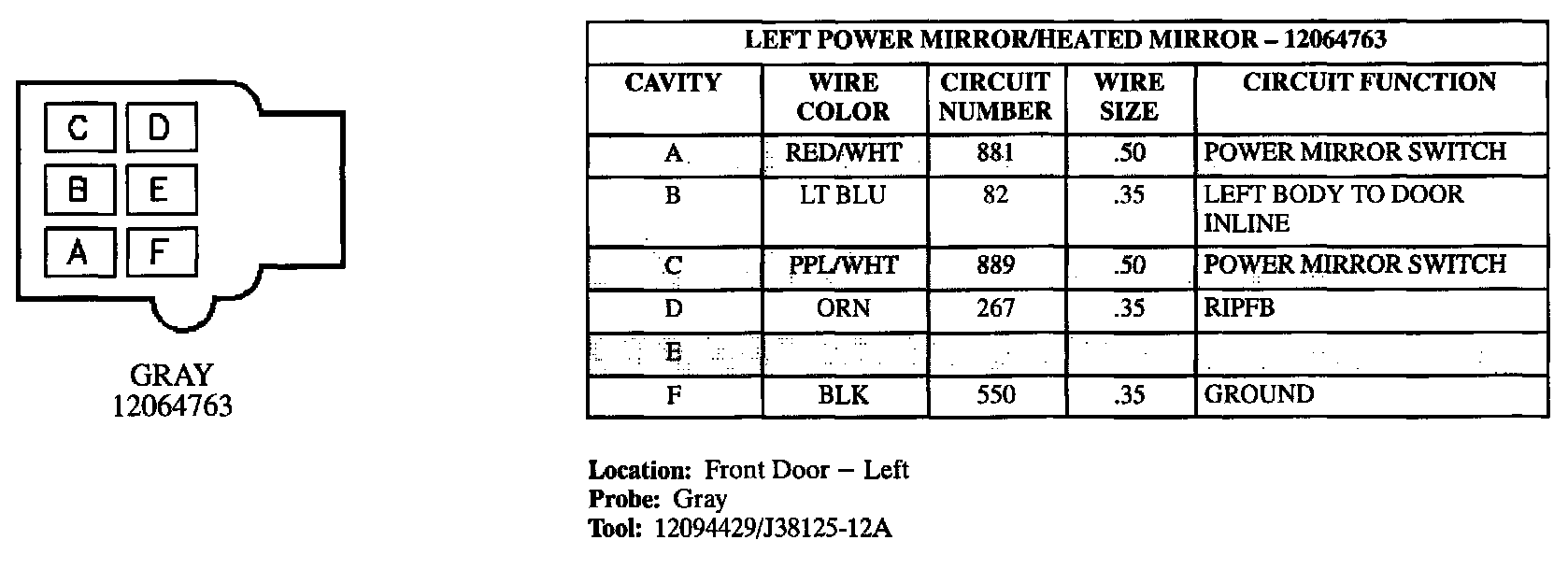

Left Power Mirror/Heated Mirror:
