Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Courtesy Lamp >> System Diagram >> Right Body To Courtesy Lamp - Body Side

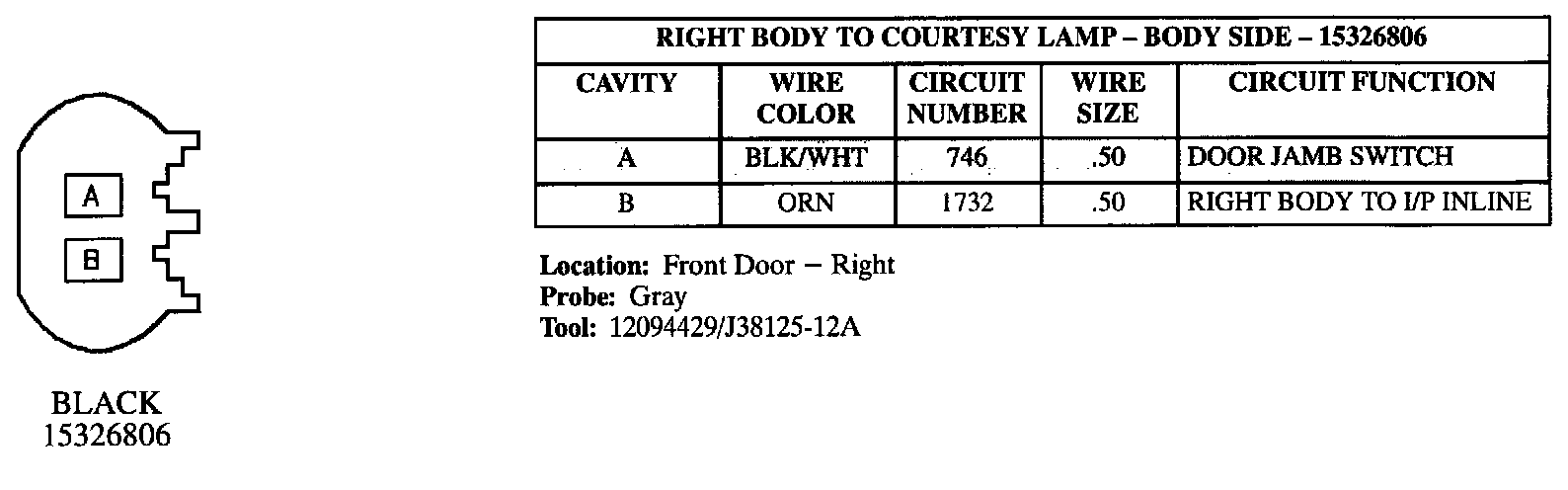

Right Body To Courtesy Lamp - Body Side

Right Body To Courtesy Lamp - Body Side:
