Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Courtesy Lamp >> System Diagram >> Left Body To Courtesy Lamp - Body Side

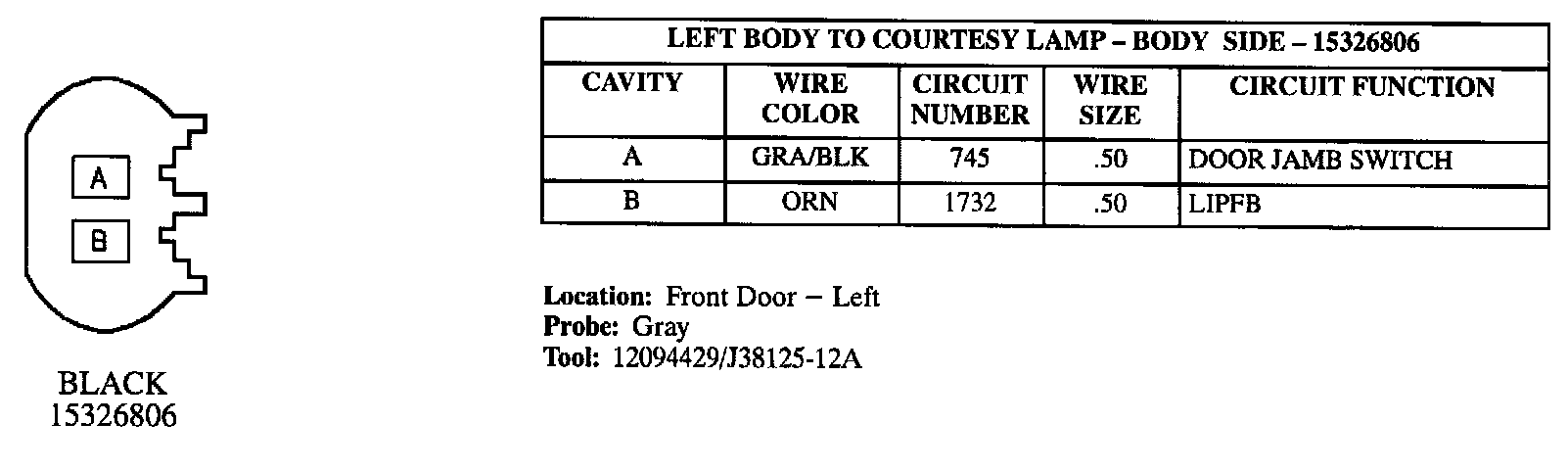

Left Body To Courtesy Lamp - Body Side

Left Body To Courtesy Lamp - Body Side:
