Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Left Body To I/P Inline

Left Body To I/P Inline

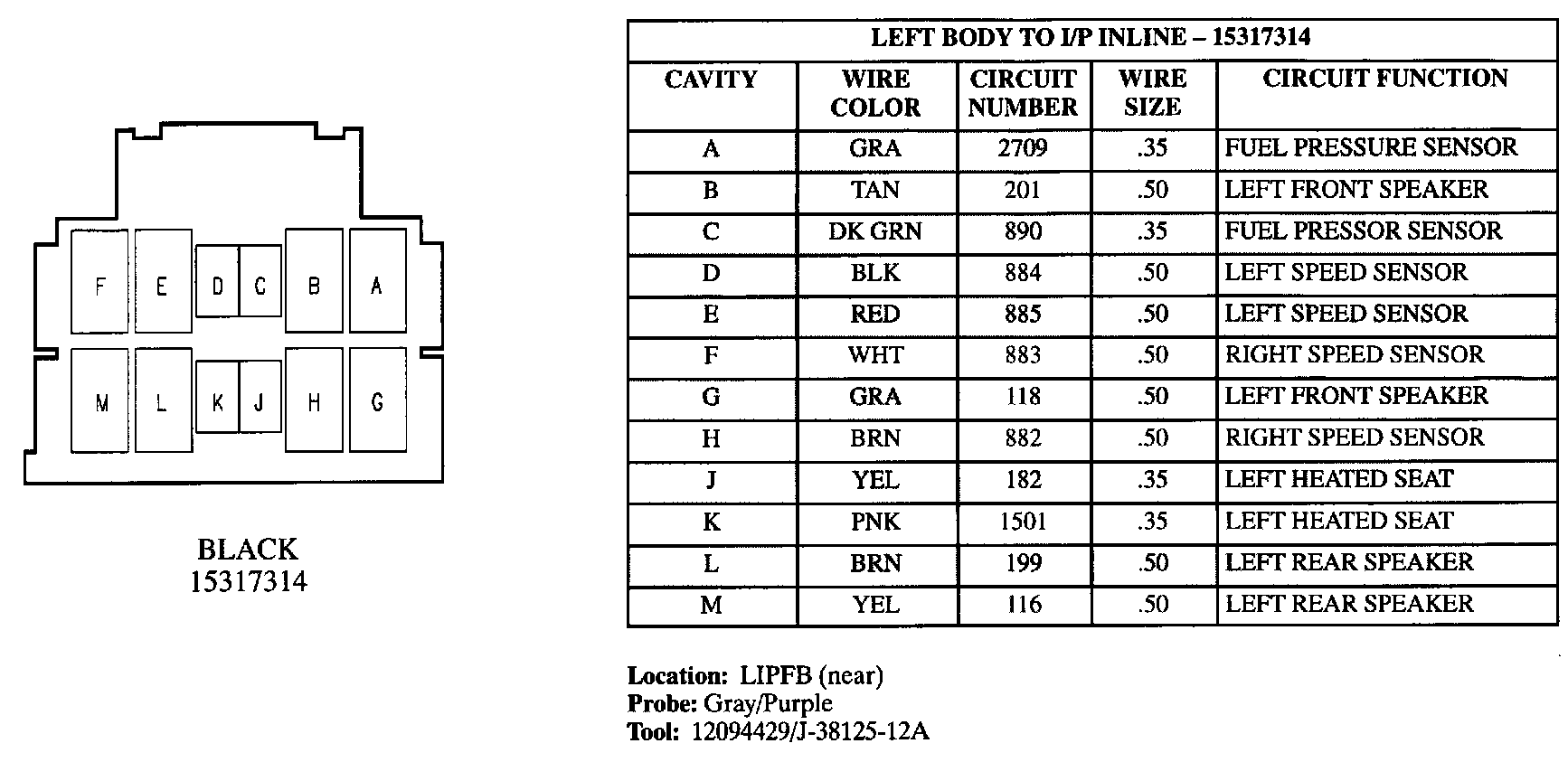

Left Body To I/P Inline:

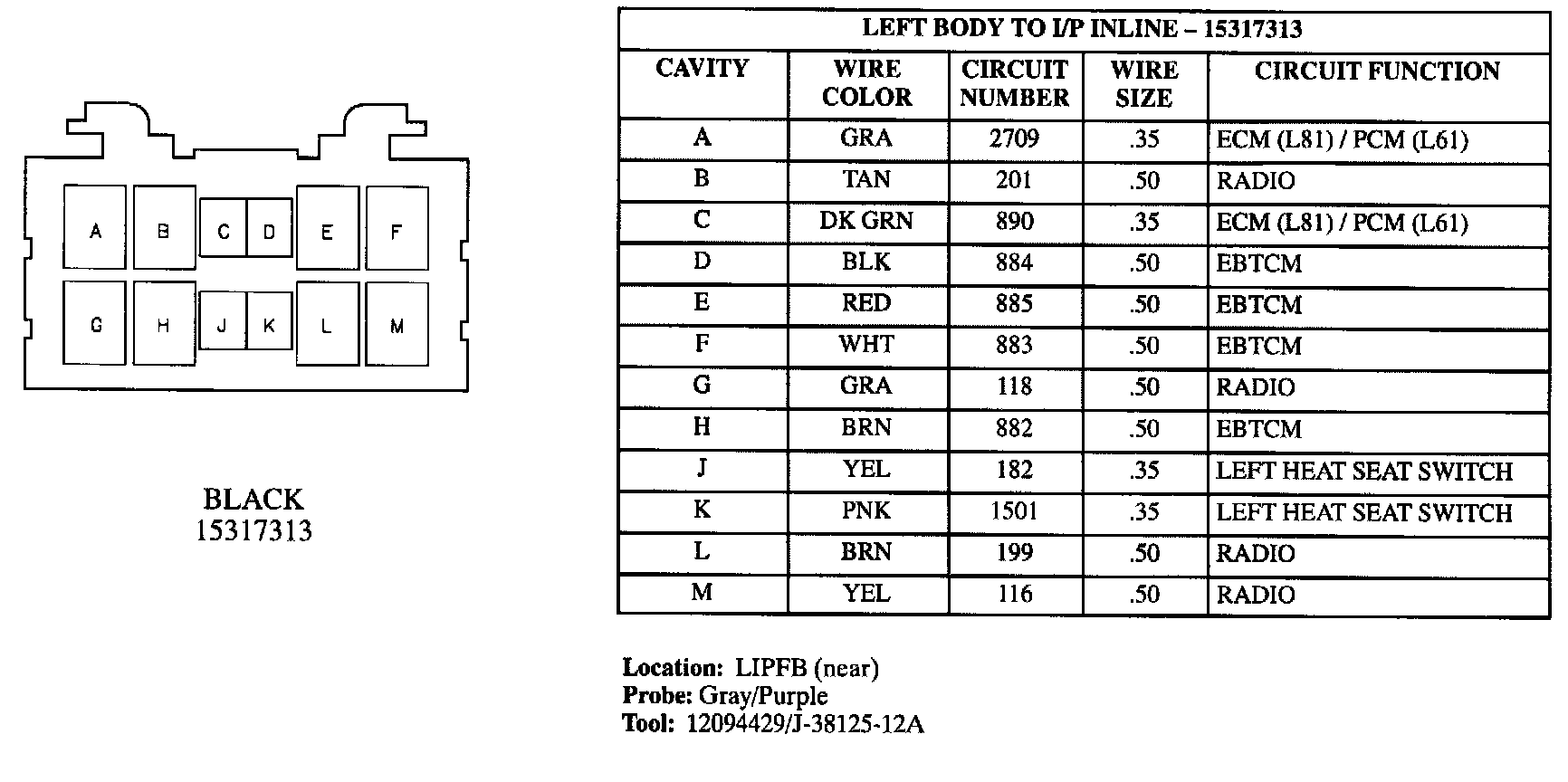

Left Body To I/P Inline:
