Left Body To Door Inline - Body Side
Left Body To Door Inline - Body Side

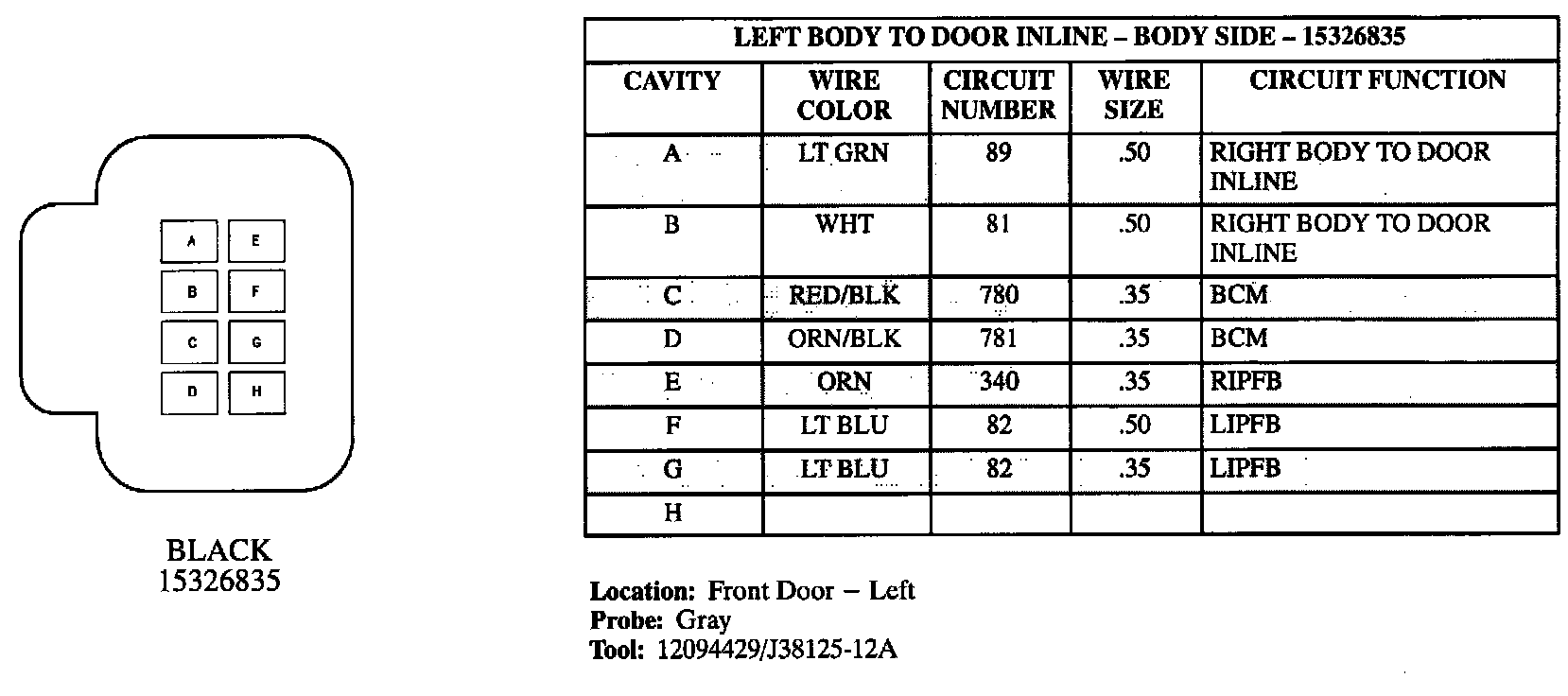

Left Body To Door Inline - Body Side:

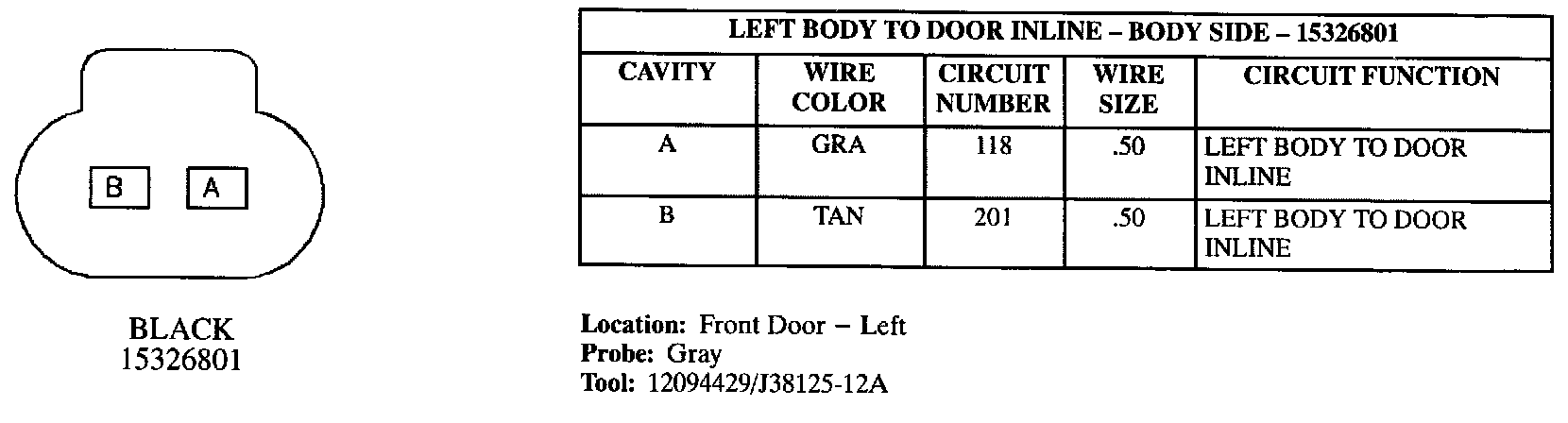

Left Body To Door Inline - Body Side:

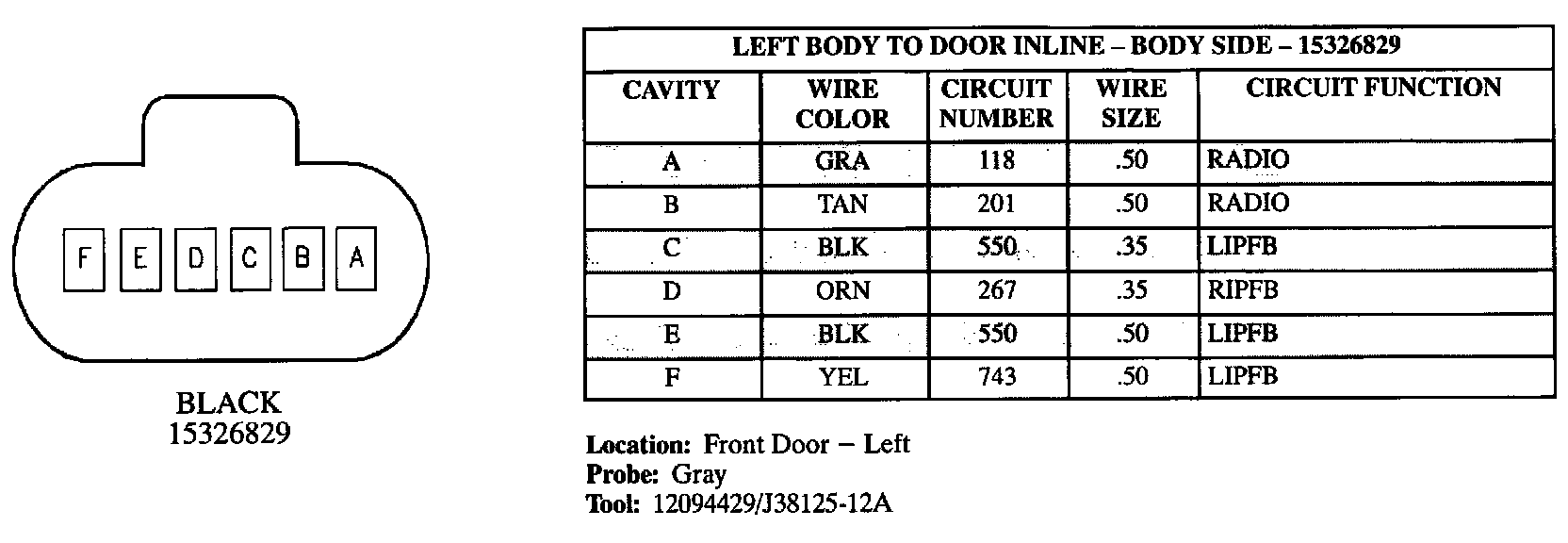

Left Body To Door Inline - Body Side:
