Brake Pedal Push Rod Adjustment

IMPORTANT: The push rod length is adjusted at the factory and should not need adjustment. If the adjustment has been tampered with, the following procedure should be used.





1. Remove brake booster from vehicle.

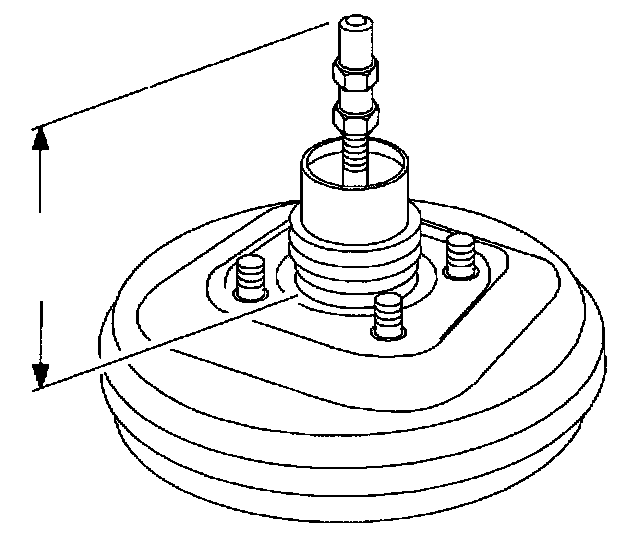

2. Using adjustment nut, adjust push rod to 149.5 mm + 0.5 mm (5.9 inch ± 0.02 inch).
