Rear Park Brake Cable (Disc)

REMOVAL





1. Disengage console park brake boot by squeezing boot on sides while pulling upward.





2. Loosen park brake adjusting nut to allow slack in cable.

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON HOIST.

3. Raise vehicle on hoist.

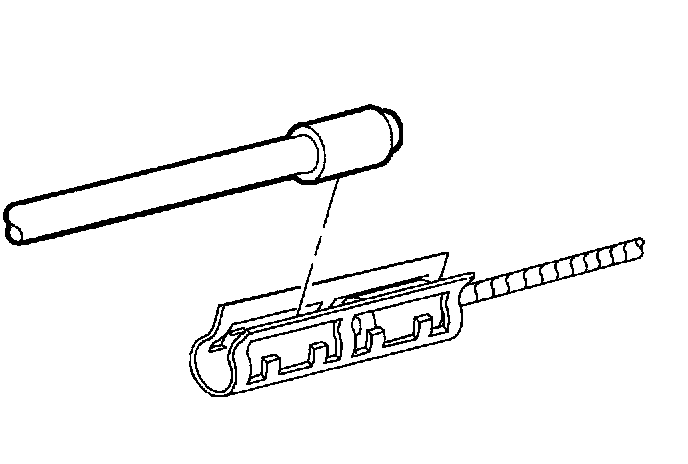

4. Disconnect rear park brake cable to front park brake cable and discard clip.
5. Remove park brake cable return spring from backing plate and remove cable.

INSTALLATION
1. Install park brake cable onto park brake actuator and install return spring.

NOTICE: A new attachment clip must be used whenever park brake cables are disconnected.

2. Using a new clip, attach rear park brake cable to front park brake cable.
3. Adjust park brake cable.





4. Install park brake boot.
5. Lower vehicle from hoist.
