Master Cylinder Reservoir Replacement

REMOVAL

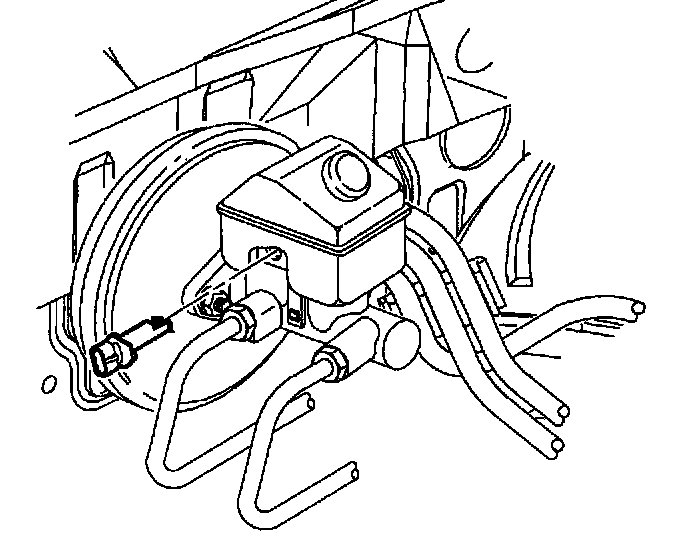

1. Remove brake fluid level sensor electrical connector and remove switch by depressing tabs on opposite end of switch.
2. Remove master cylinder.

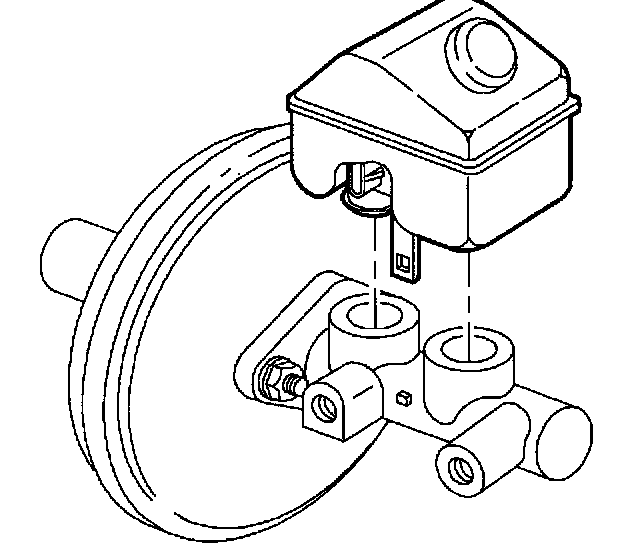

3. Unclip reservoir hold down clamps and remove reservoir by pulling upward.
4. Remove reservoir seals.

INSTALLATION
1. Lubricate new reservoir seals with clean brake fluid and install into master cylinder.
2. Install reservoir into master cylinder. Be sure locking tabs are engaged.
3. Install brake fluid level sensor and electrical connector.
4. Install brake master cylinder.
5. Fill brake reservoir with clean brake fluid up to "MAX" mark on reservoir.
6. Bleed brake system.
