Brake Pads Replacement - Rear

REMOVAL

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON HOIST.





1. Raise vehicle on hoist.
2. Remove rear wheel and tire assemblies.

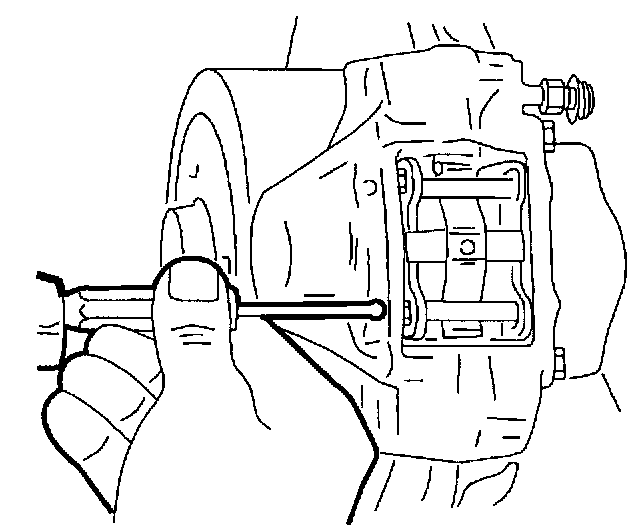

3. Drive out brake pad retaining pins from outside-to-inside, remove pins and retaining spring.

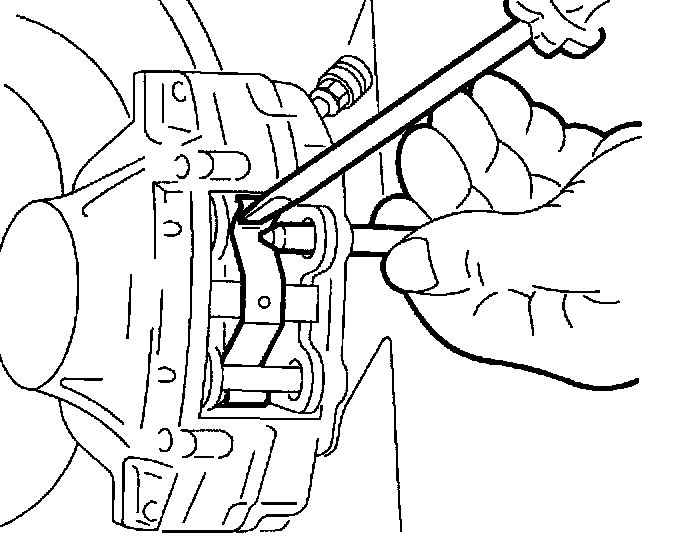

4. Remove brake pads.
5. Inspect:
a. Brake pad retaining pins for deterioration or damage. If damaged, replace.
b. Brake pad retaining spring for deterioration or damage. If damaged, replace.
c. Brake caliper piston seal for leakage or damage. If damaged, overhaul caliper.

INSTALLATION

IMPORTANT: Never replace brake pads on one side of axle only. Left and right side brake pads must be replaced as axle sets.

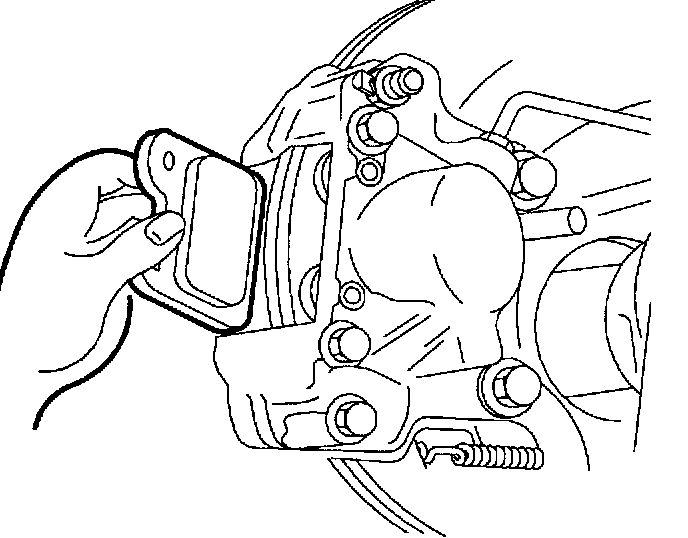

1. Install new brake pads into caliper.
2. Apply small amount of silicone grease to retaining pins.

IMPORTANT: Check to ensure brake pads move freely in guide.

3. Install brake pad retaining spring, and drive brake pad retaining pins in from inside outward.

NOTICE: Before installing wheels, remove rust or corrosion from wheel mounting surfaces and brake rotors/drums. Failure to do so can cause wheel bolts to loosen in service.

4. Position wheel and tire assembly onto hub.
5. Install bolts and tighten in a crisscross pattern. Repeat tightening pattern to be sure torque is correct.
Torque: 125 Nm (92 ft. lbs.)
6. Lower vehicle from hoist.

CAUTION: IF THIS OPERATION IS NOT CARRIED OUT, BRAKES WILL NOT OPERATE PROPERLY DURING INITIAL BRAKE APPLICATIONS.

7. Prior to operating vehicle, depress brake a few times until brake pads are seated against rotor.
