Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> ABS/TCS Brake Switch Circuit Malfunction - Fail Low Chart

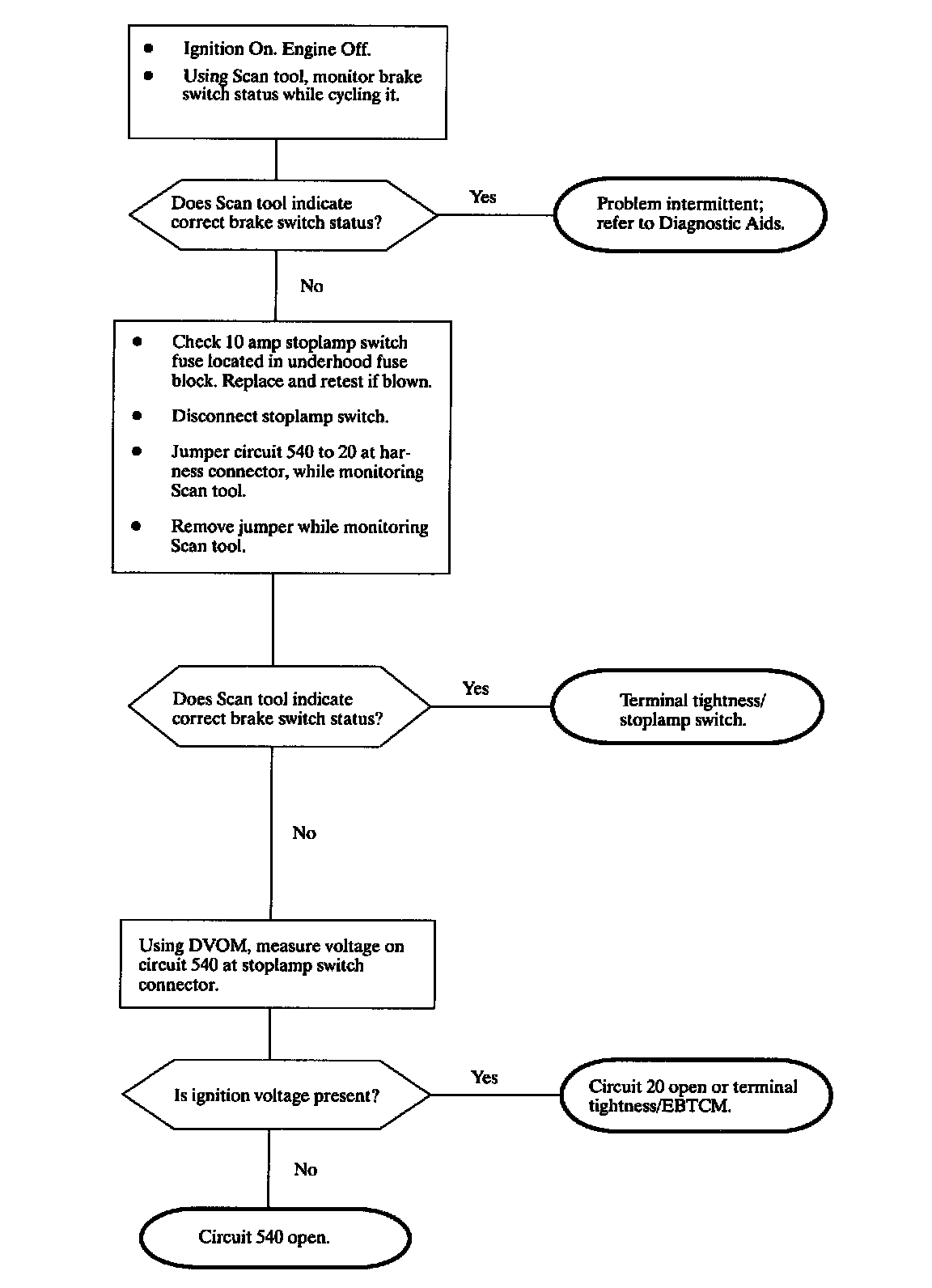

ABS/TCS Brake Switch Circuit Malfunction - Fail Low Chart
