Rear Door Weatherstrip Replacement

Rear Door Weatherstrip Replacement

Removal Procedure

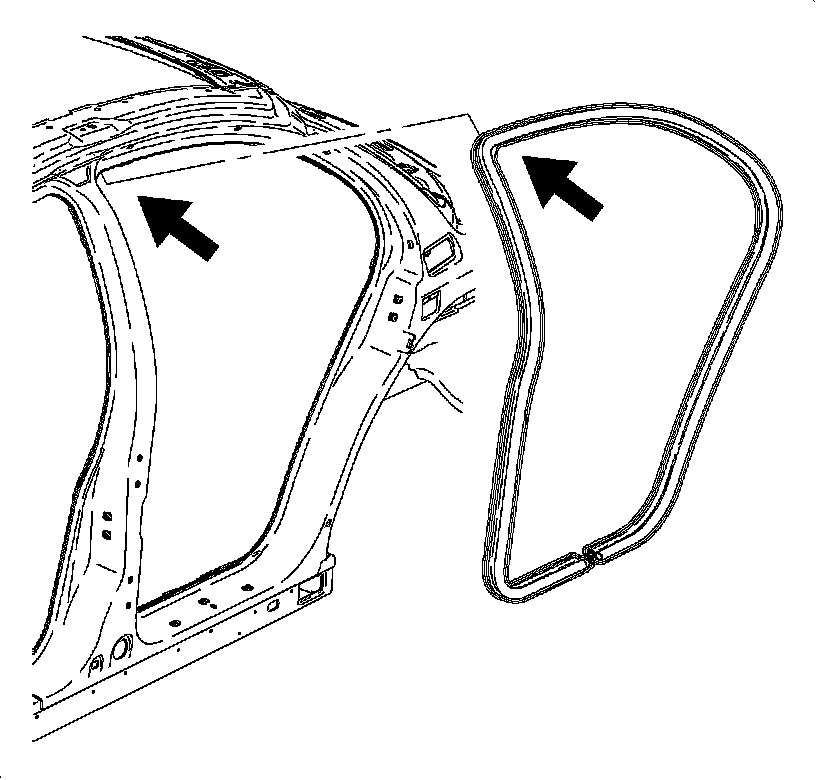

1. Remove the weather-strip from the door opening by starting at he seal joint at the bottom of the door opening.
2. Slowly pull the seal loose.



Installation Procedure





1. Start the seal over the flange area in position noted above.
2. Press the seal over the flange firmly to the seal.
