Outer Belt Seal - Front Door

REMOVAL

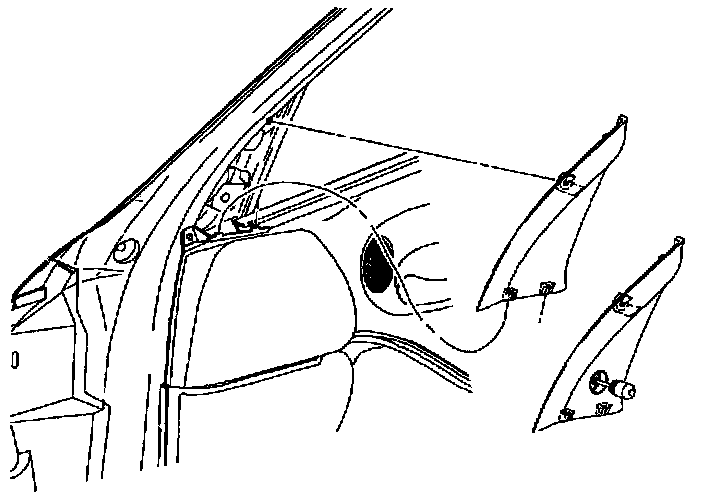

1. Remove mirror trim panel and remove foam filler.

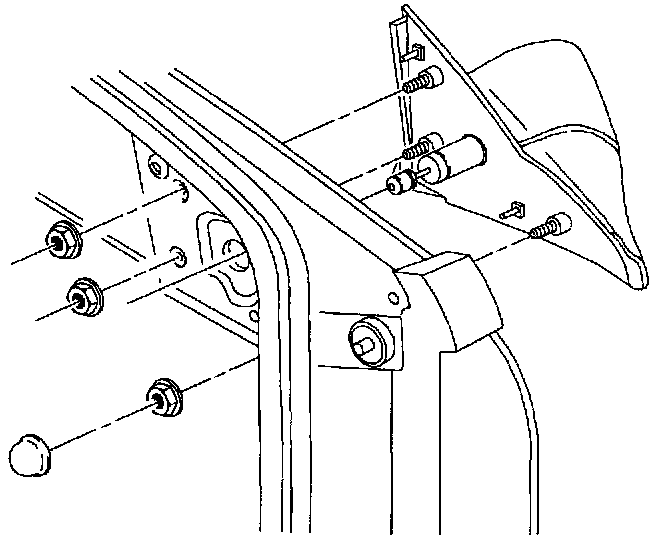

2. Loosen mirror attachment nuts.

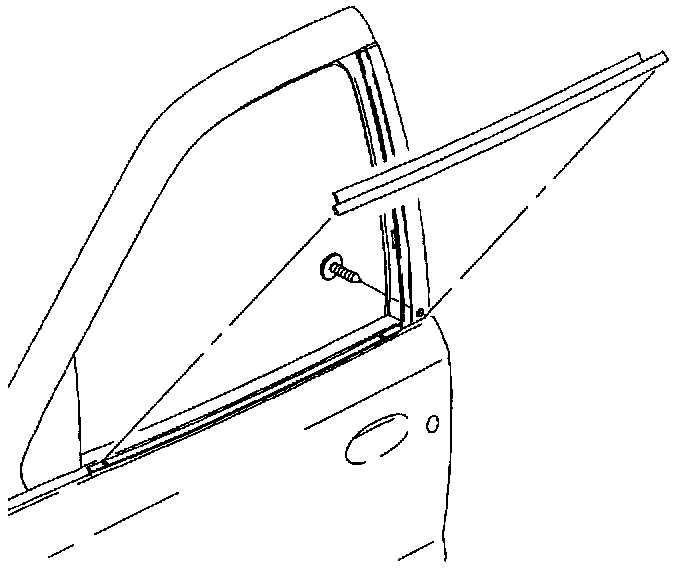

3. Remove outer belt seal retaining screw at rear.
4. Carefully lift up on outer belt seal starting at rear and working forward.

INSTALLATION




1. Install outer belt seal by sliding forward end of outer belt seal toward front of door.
2. Starting at rear of belt seal, push belt seal down onto flange until fully seated.




3. Install and tighten mirror attaching nuts.

Torque: 10 N.m (89 in-lbs)




4. Install foam filler and mirror trim panel.




5. Install and tighten outer belt seal retaining screw at rear.

Torque: 2 N.m (20 in-lbs)
