Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> System Diagnostic Charts >> Chart 5 - Power Seat Recliner Inoperable - Driver Seat Only

Chart 5 - Power Seat Recliner Inoperable - Driver Seat Only

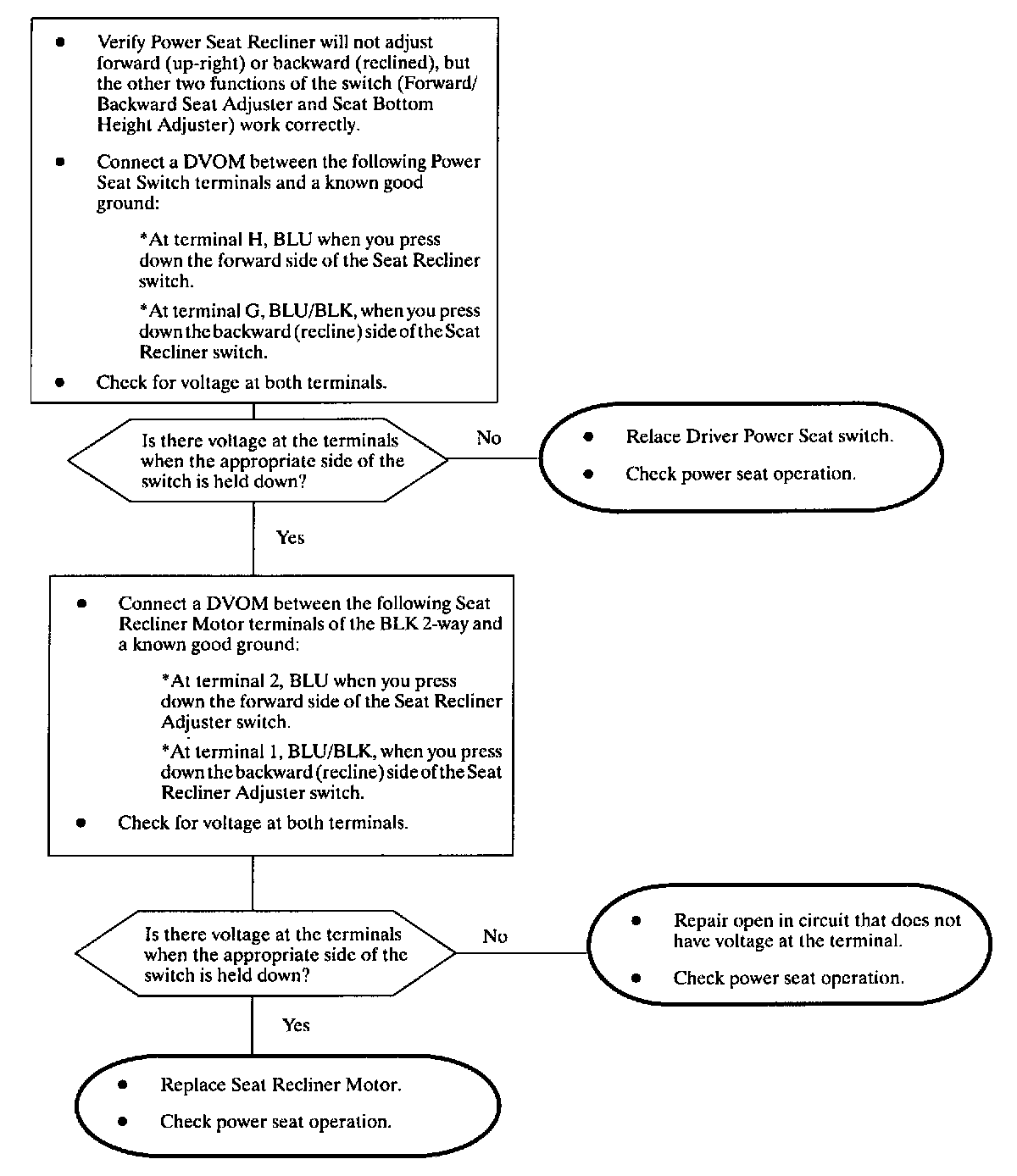

Diagnostic Chart 5:
