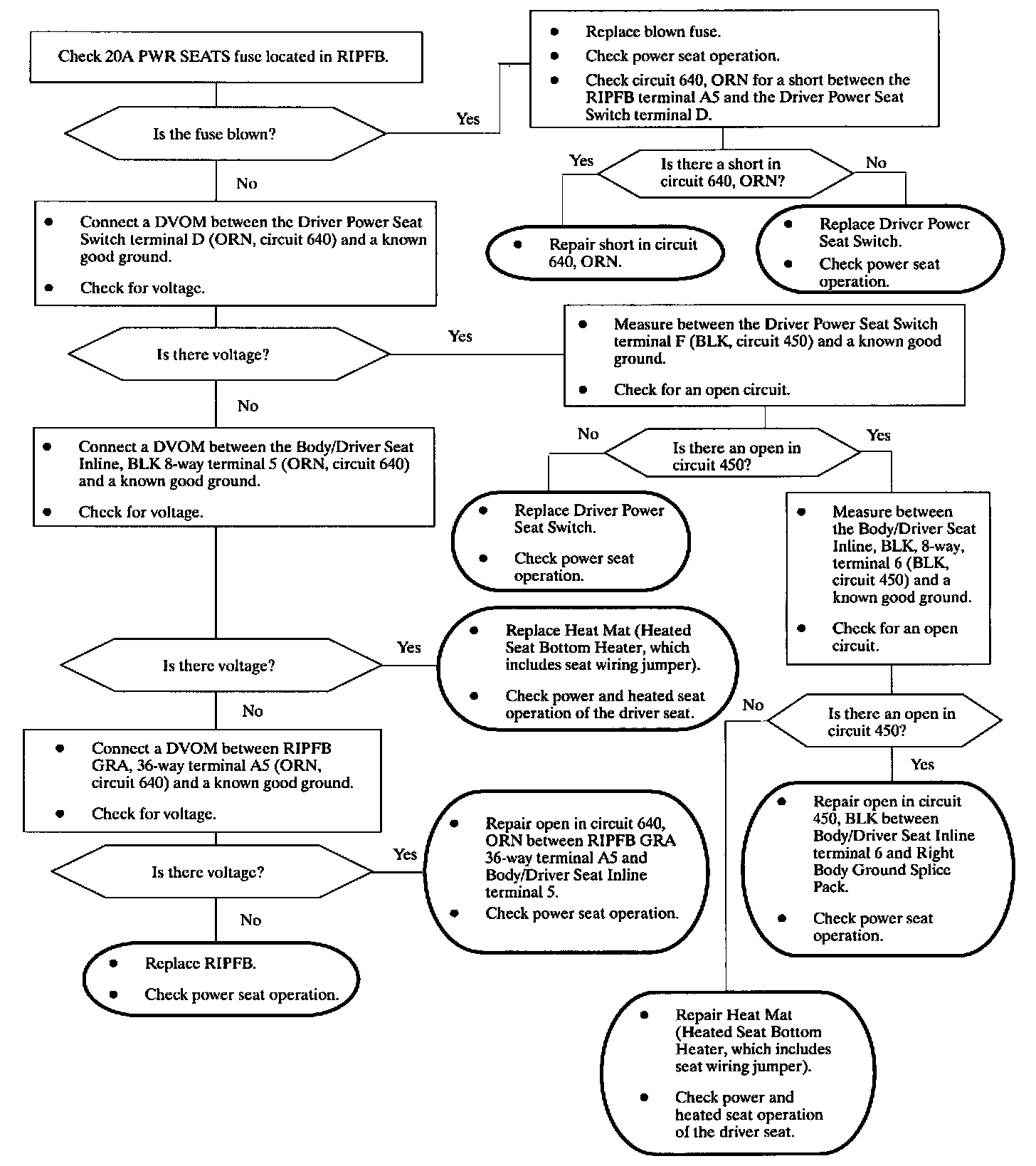

Chart 2 - All Power Seat Functions Inoperable - Driver Seat Only
Chart 2 - All Power Seat Functions Inoperable - Driver Seat Only
Diagnostic Chart 2:
