Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Component Tests and General Diagnostics >> Switch Continuity Check - Sunroof Switch

Switch Continuity Check - Sunroof Switch

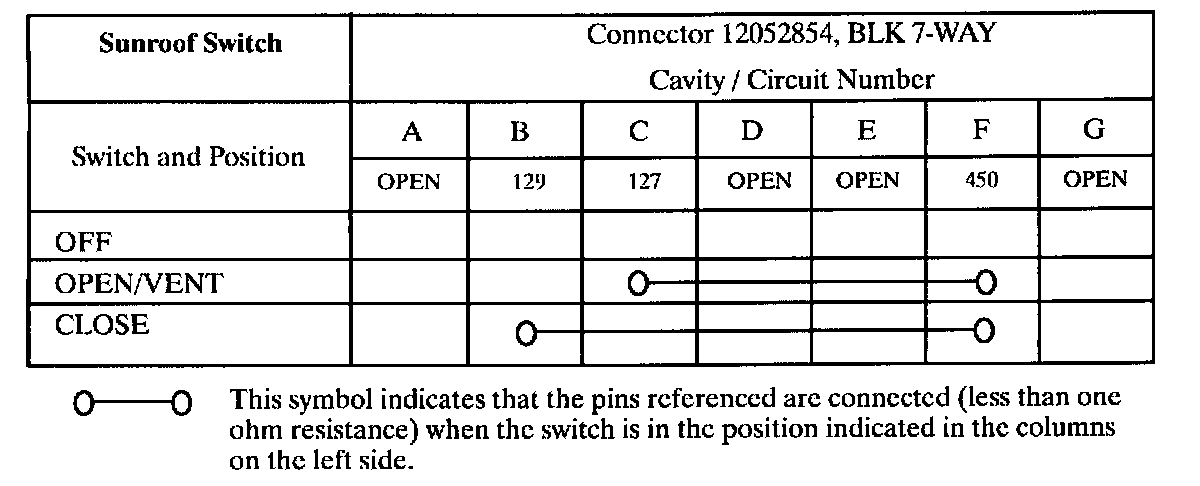

Switch Continuity Check:
