Sunshade Lamp Bulb




REMOVAL
1. Lower vanity mirror.

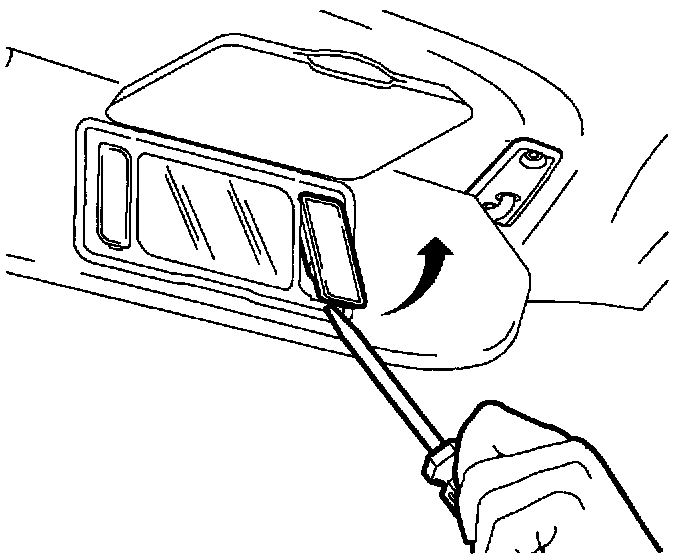

2. Using a small flat blade screwdriver, remove vanity mirror lamp cover.
3. Remove the vanity mirror lamp bulb.

INSTALLATION
1. Install vanity mirror lamp bulb.
2. Snap vanity mirror lamp cover into vanity mirror.
3. Check vanity lamp function.
4. Raise sunshade.
