Chart 3 - Right Mirror Does Not Operate In Up/Down or Right/Left Mode, Left Mirror Operates Normally
Chart 3 - Right Mirror Does Not Operate In Up/Down or Right/Left Mode, Left Mirror Operates Normally

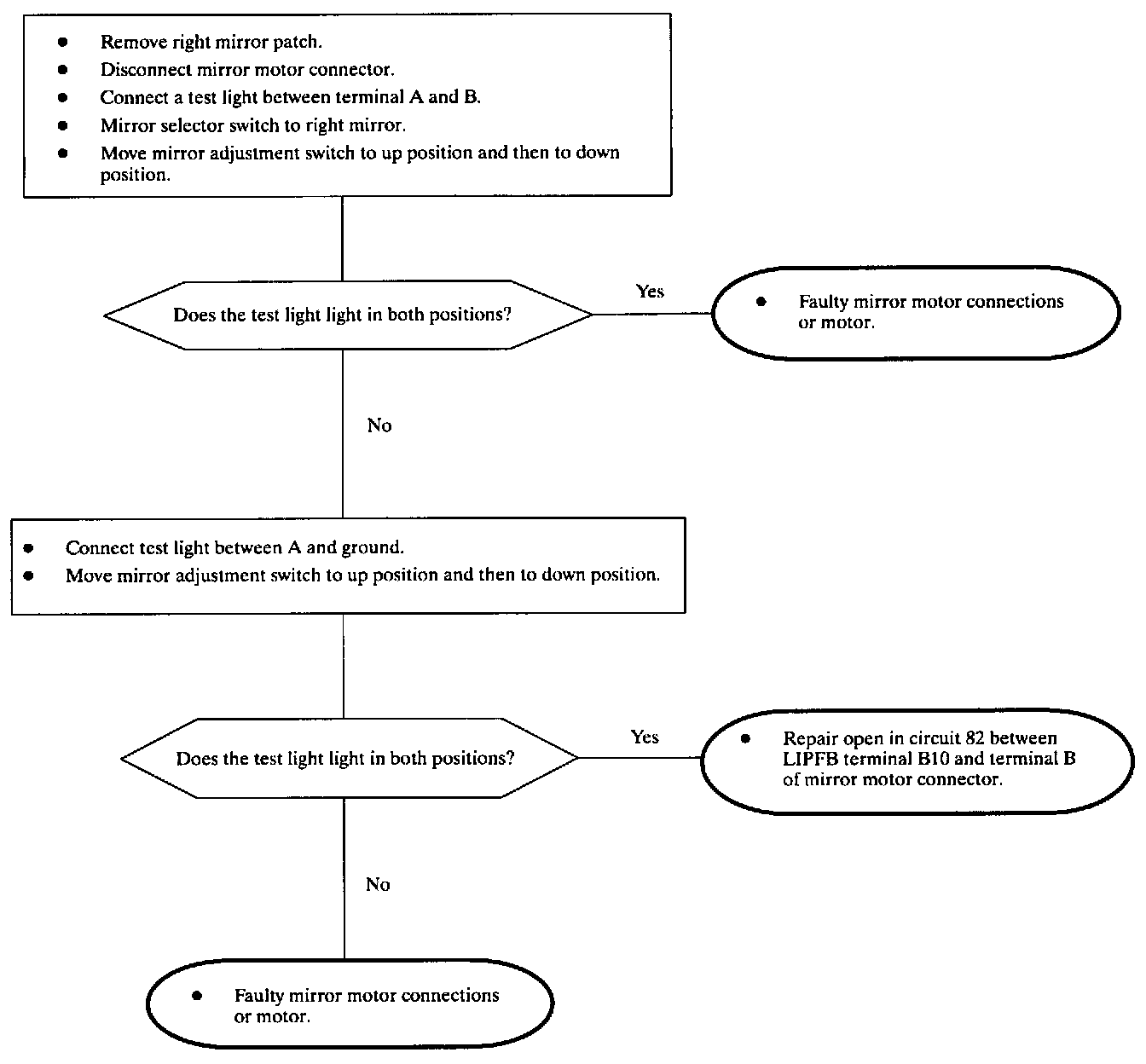

Diagnostic Chart 3:
