Home
>>
Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Testing and Inspection
>>
Chart 2 - Left Mirror Does Not Operate In Up/Down Or Right/Left Mode Right Mirror Operates Normally
Chart 2 - Left Mirror Does Not Operate In Up/Down Or Right/Left Mode Right Mirror Operates Normally

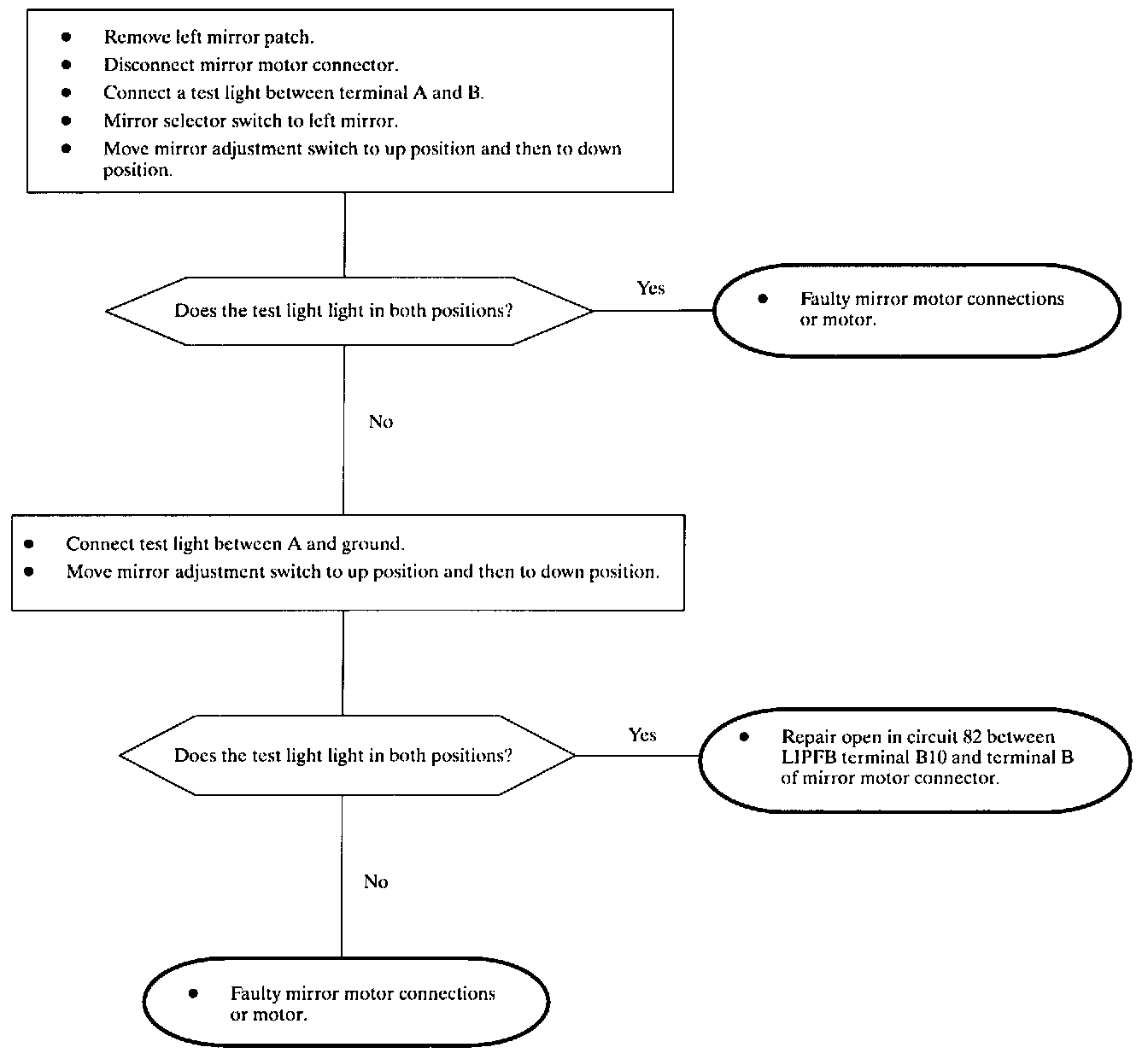

Diagnostic Chart 2:
