Home
>>
Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Testing and Inspection
>>
Chart 1 - Both Mirrors Do Not Operate
Chart 1 - Both Mirrors Do Not Operate

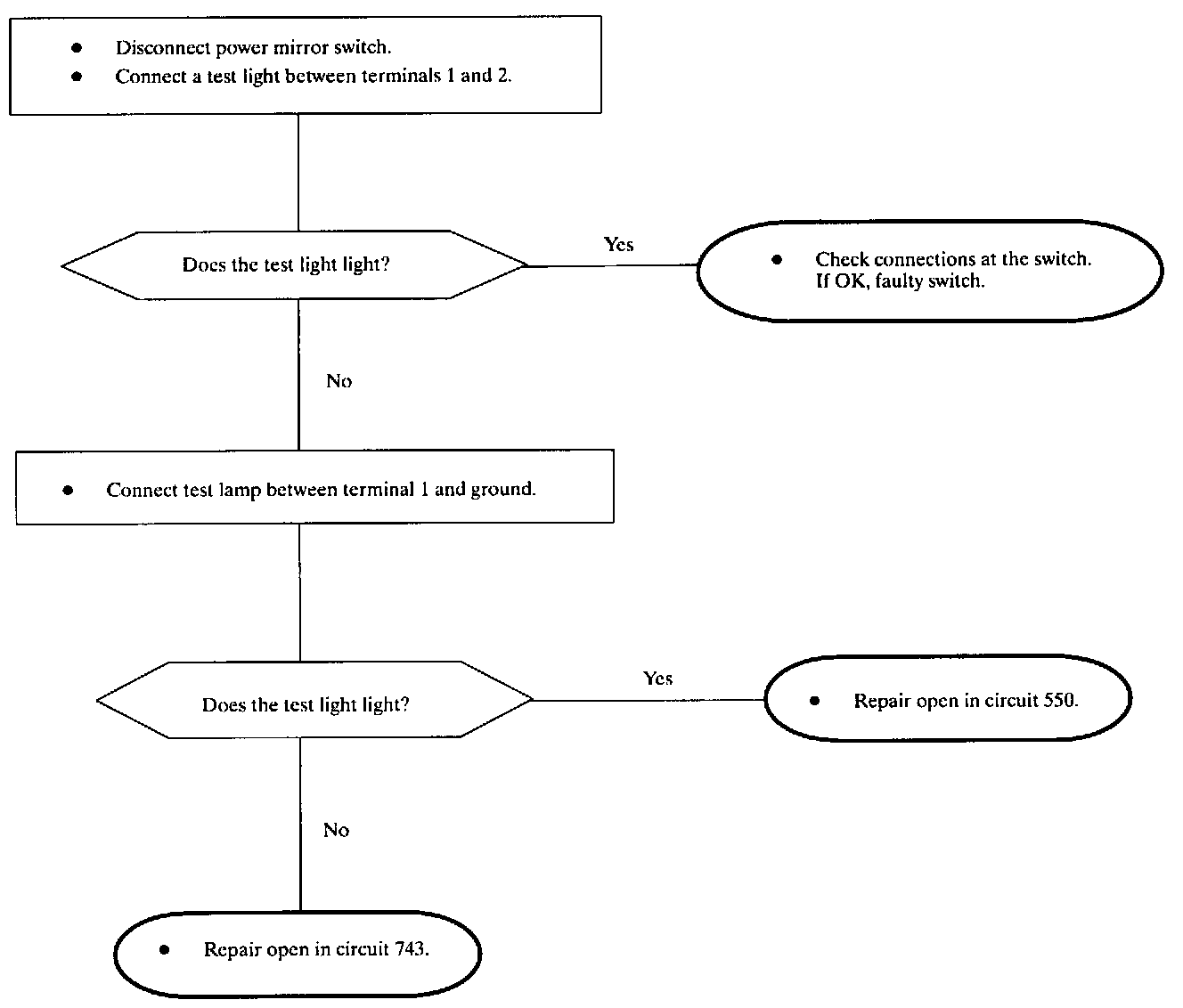

Diagnostic Chart 1:
