Sunshade Mirror Lamp Bulb




REMOVAL
1. Lower sunshade.

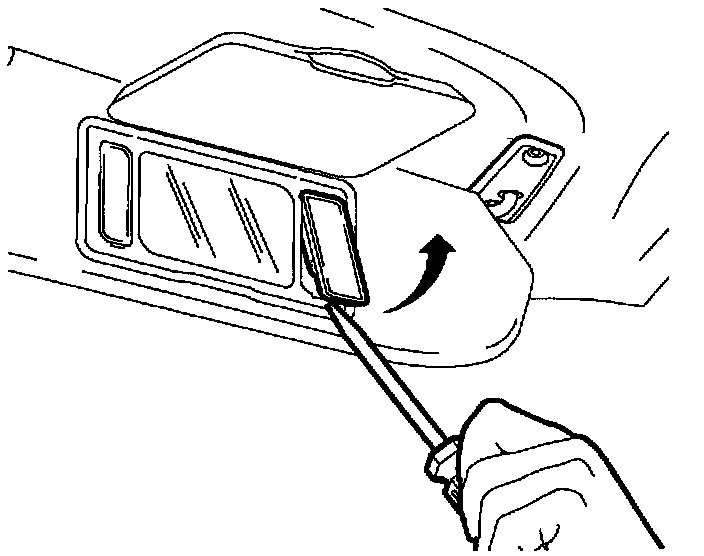

2. Using a small flat blade screwdriver, remove sunshade mirror lamp cover.
3. Remove sunshade mirror lamp bulb.

INSTALLATION
1. Install sunshade mirror lamp bulb.
2. Snap sunshade mirror lamp cover into sunshade mirror.
3. Check sunshade lamp function.
4. Raise sunshade.
