Rear Corner Trim Panel Carpet Replacement

Rear Corner Trim Panel Carpet Replacement

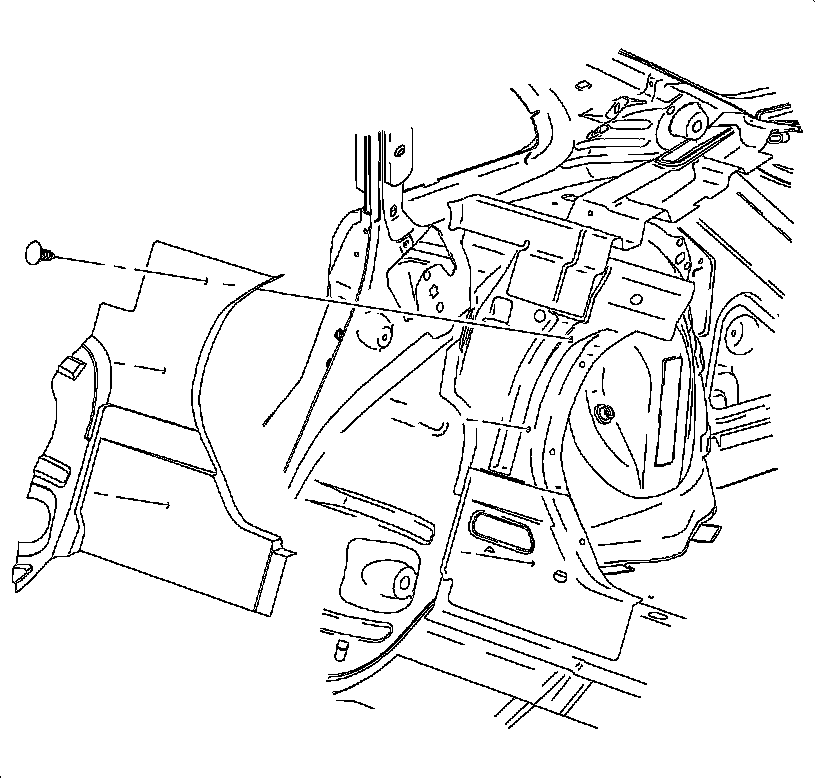

Removal Procedure





1. Lower rear seat back..
2. Remove the rear compartment carpet push pin retainers.
3. Remove the carpet.



Installation Procedure





1. Position the carpet in the vehicle.
2. Install the push pin retainers to secure the trunk trim to the vehicle.
3. Raise the rear seat back.
