Finish Panel Replacement - Rear End Sill Molding

Finish Panel Replacement - Rear End Sill Molding

Removal Procedure





1. Open the liftgate.
2. Gently pull up on the trim plate to remove the trim plate.



Installation Procedure

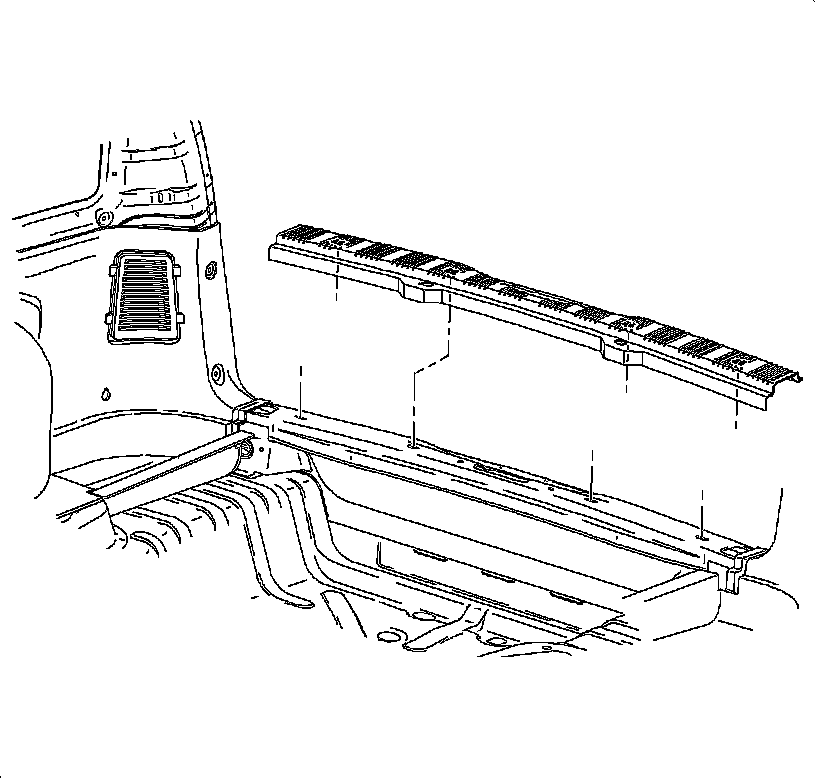

1. Position the trim plate onto the liftgate sill then push at the attaching clip locations to install the trim plate.
2. Reposition the weatherstrip over the trim plate.
