Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Headliner >> Diagrams

Headliner: Diagrams

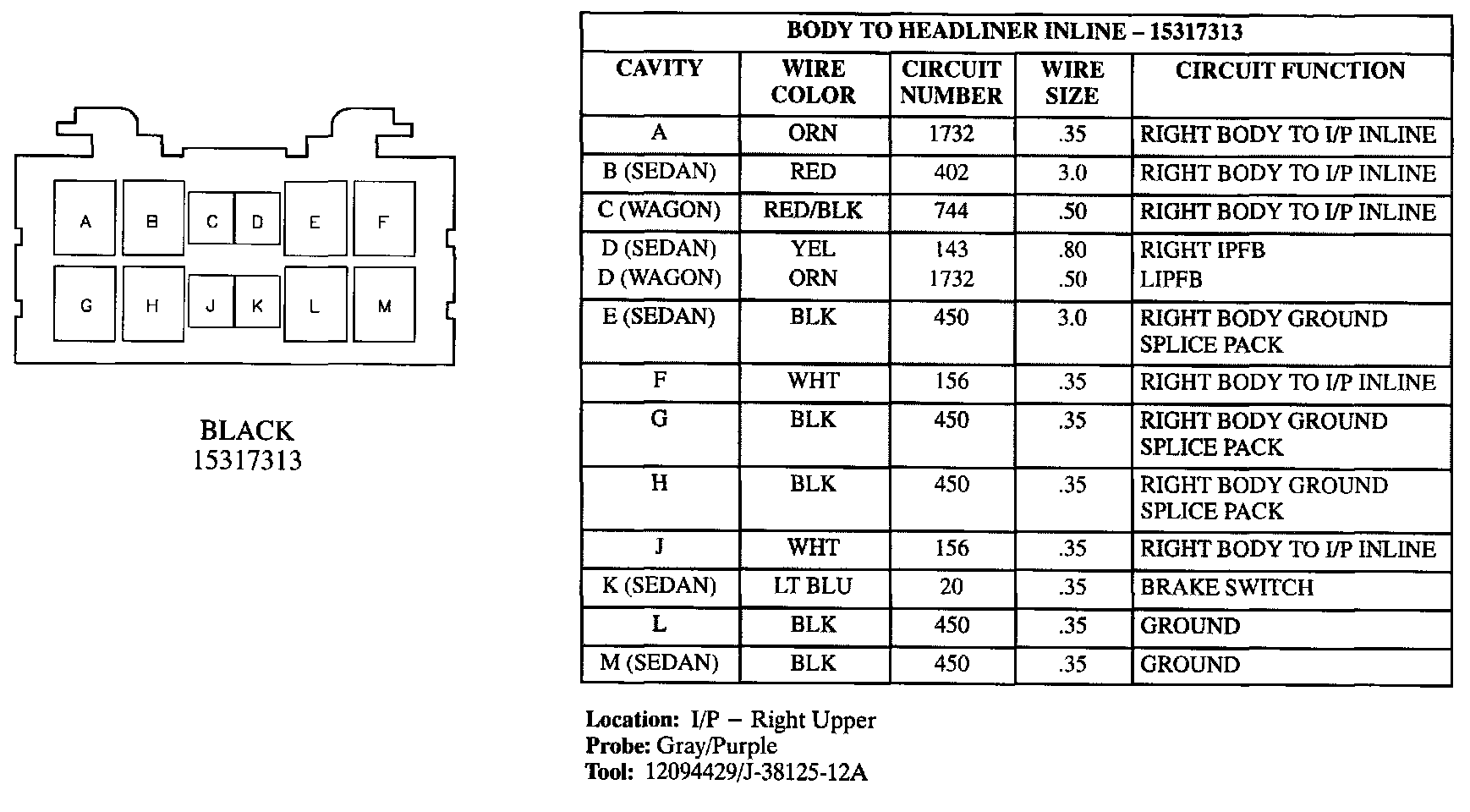

Body To Headliner Inline:

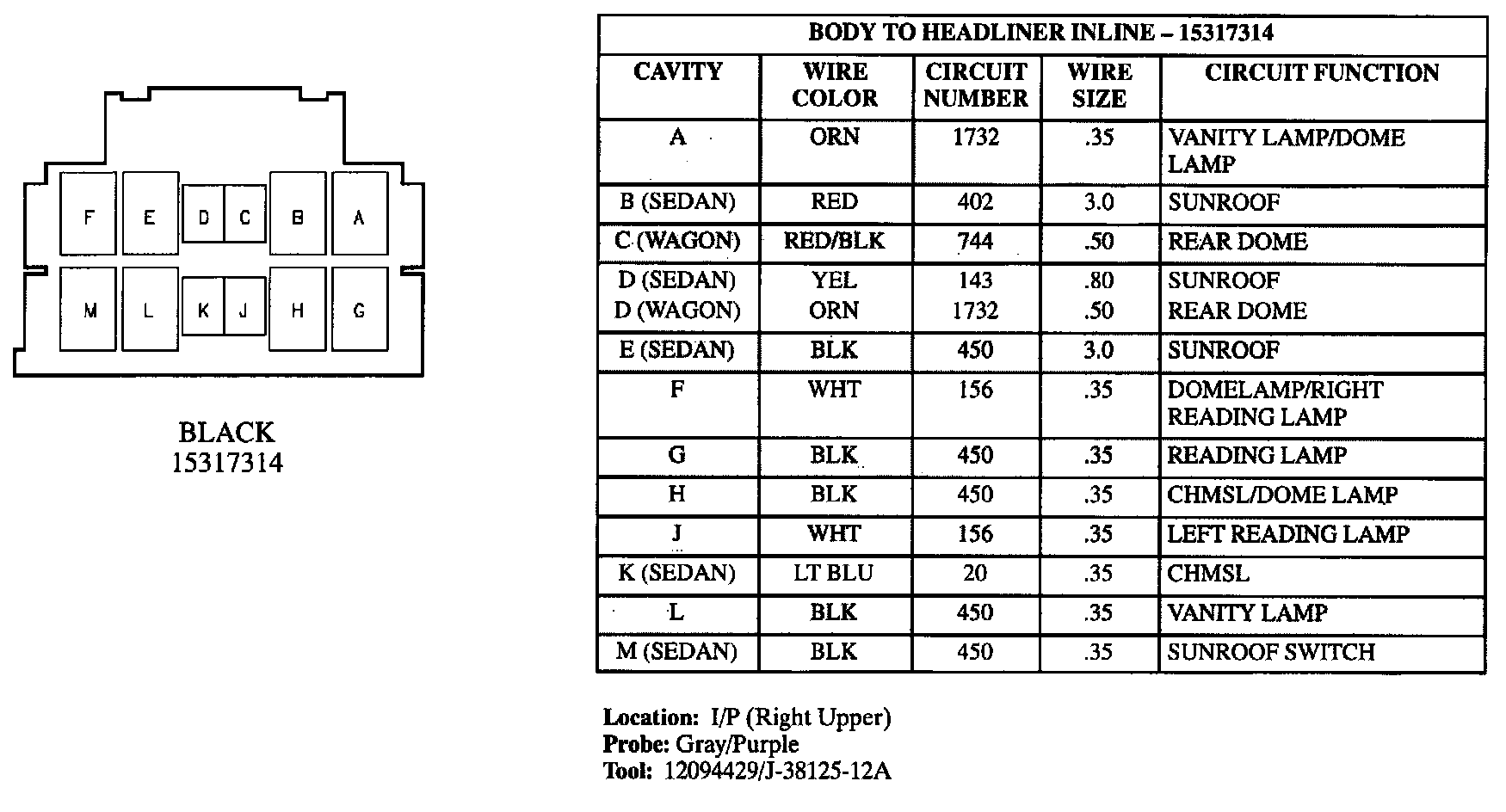

Body To Headliner Inline:
