Procedures

1. Remove glovebox door lock.

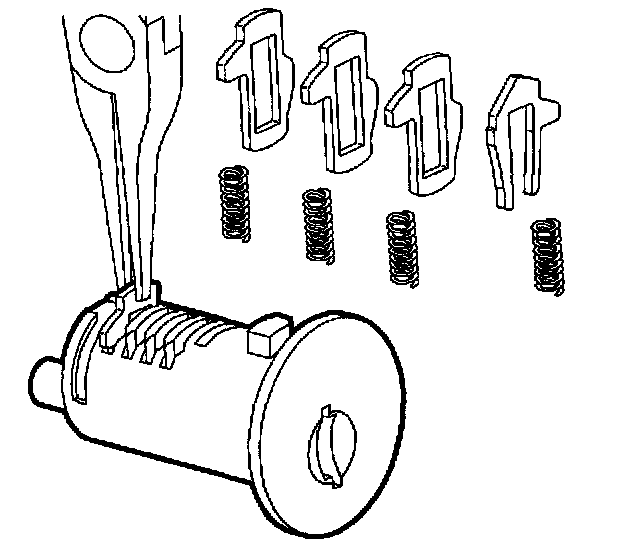

2. Remove tumblers from lock cylinder by pulling with needle nose pliers.

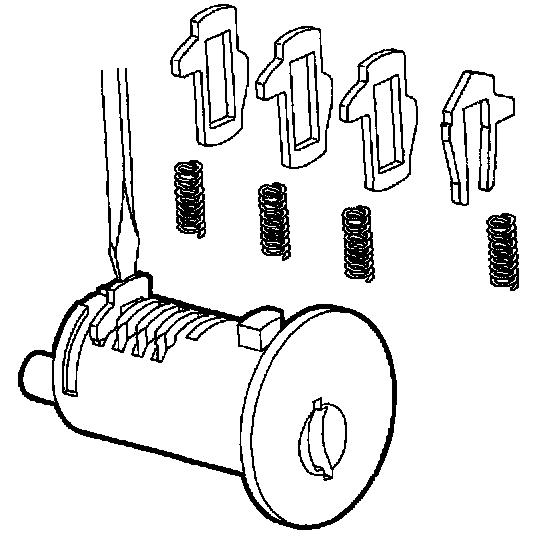

3. If necessary, remove retainer tumbler using this method.

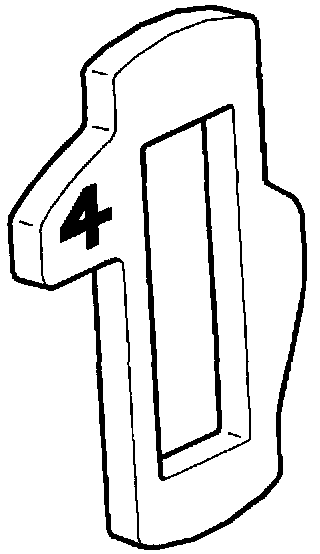

4. Select the correct lock tumblers for the desired code by the number stamped on the tumbler.




5. Install lock tumblers and retainer tumbler, if removed, by applying downward pressure until they lock into position.
6. To check coding of cylinder, insert key. If coding is correct, all tumblers except the retainer tumbler will be flush with the lock cylinder.
