Ashtray Replacement - Rear Floor Console

Front Floor Console Rear Ashtray Replacement

Removal Procedure

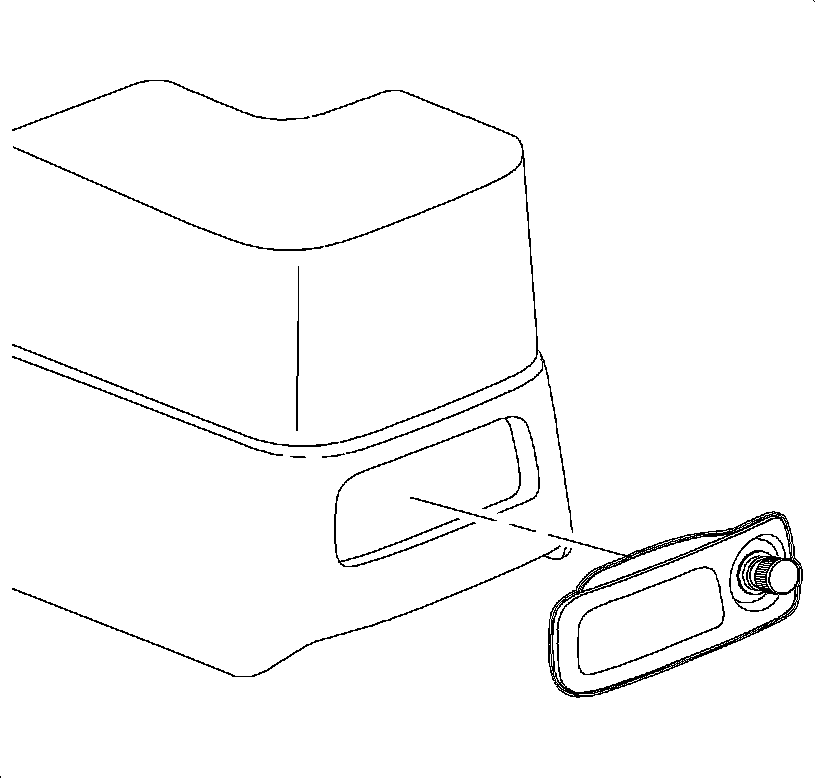

Using a small flat blade screwdriver, remove ash tray assembly from console.


Installation Procedure





Position ash tray assembly into opening and snap in retainer to engage ash tray to console.
