Rear Fender Liner: Service and Repair

Rear Wheelhouse Liner Panel Replacement

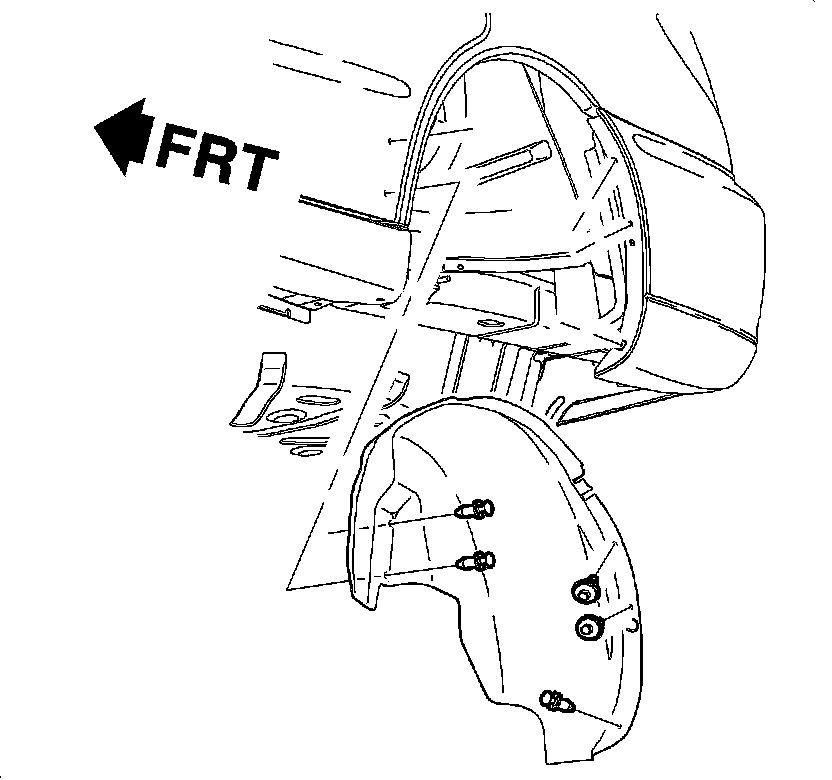

Removal Procedure





1. Remove the wheelhouse panel-to-fascia screws.
2. Remove the rear wheelhouse panel-to-quarter panel and rocker panel cover panel push-in retainers.
3. Remove the wheelhouse panel.
Slide the top of the wheelhouse panel out of the quarter panel wheelhouse.



Installation Procedure





1. Position the top of the wheelhouse panel to the quarter panel.
2. Install the rear wheelhouse panel-to-quarter panel and rocker panel cover push-in retainers.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the wheelhouse panel-to-fascia screws.

Tighten the screws to 2.8 N.m (25 lb in).
