Front Door Limiter: Service and Repair

Front Side Door Check Link Replacement

Removal Procedure





1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement Service and Repair
2. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement Service and Repair
3. Remove the check link bolt at the hinge pillar.

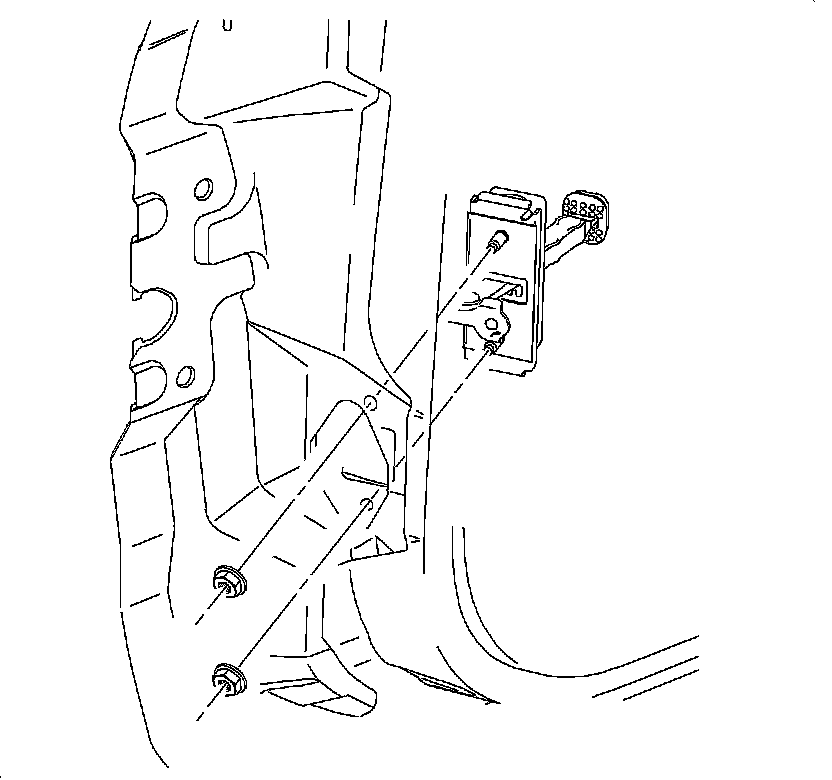

4. Remove the check link nuts from the door frame.
5. Remove the check link from the door.



Installation Procedure





1. Install the check link to the door frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the nuts to the check link.

Tighten the nuts to 10 N.m (89 lb in).





3. Install the check link bolt.

Tighten the bolt to 10 N.m (89 lb in).

4. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement Service and Repair
5. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement Service and Repair
