Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Diagrams >> Right Body To Door Inline - Jumper

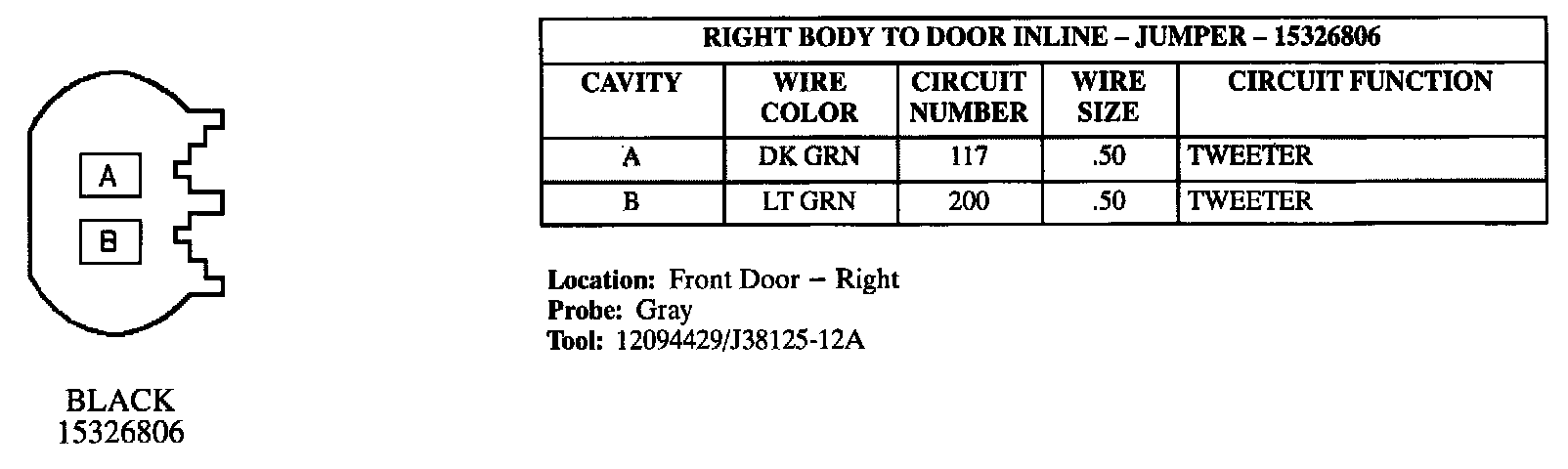

Right Body To Door Inline - Jumper

Right Body To Door Inline - Jumper:



Right Body To Door Inline - Jumper:
