Rear Bumper Fascia Outer Support Replacement

Rear Bumper Fascia Outer Support Replacement

Removal Procedure

1. Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Service and Repair) .

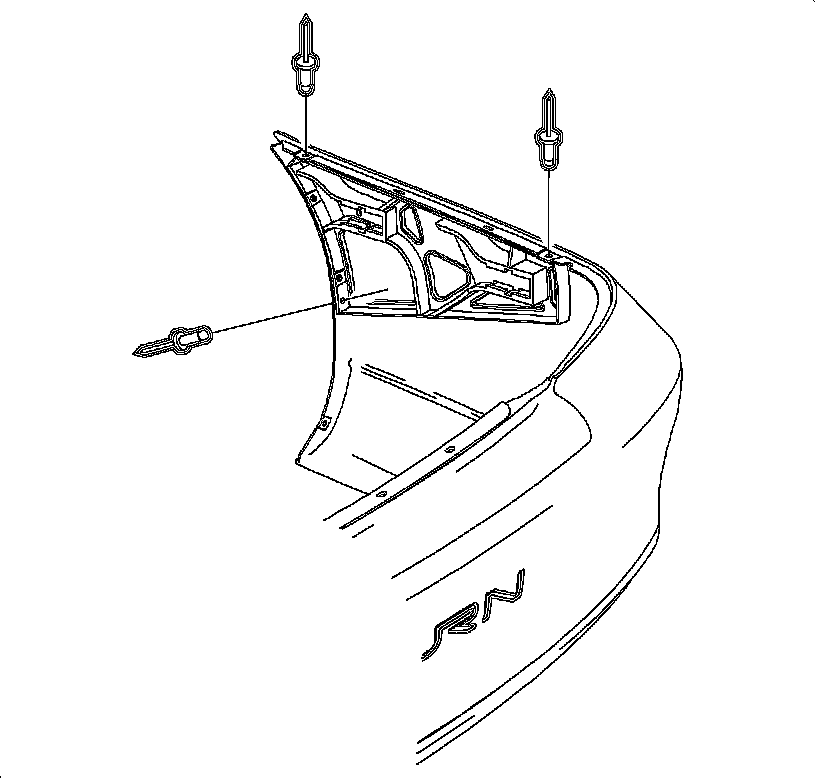

2. Remove the rivets from the fascia outer reinforcement.
3. Remove the fascia outer reinforcement from the fascia.



Installation Procedure





1. Position the fascia outer reinforcement onto the fascia.
2. Install the rivets to the fascia outer reinforcement.
3. Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Service and Repair) .
