Front Bumper Lower Fascia Grille Replacement

Front Bumper Lower Fascia Grille Replacement

Removal Procedure

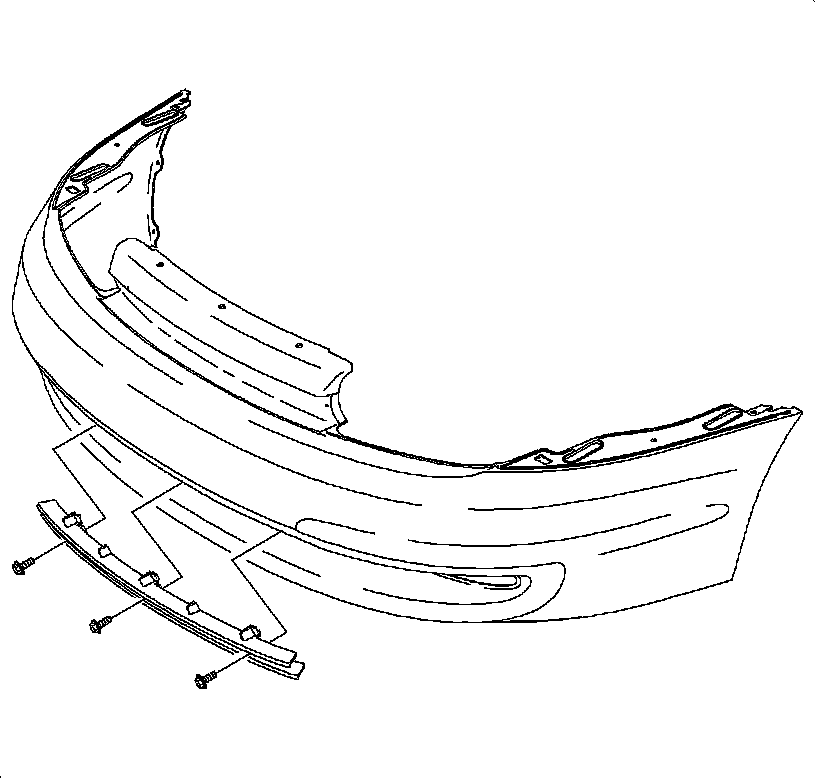

1. Remove the bolts from the grill.
2. Remove the grill from the fascia.



Installation Procedure





1. Position the grill into the fascia.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolts to the grille.

Tighten the bolts to 10 N.m(89 in lb).
