Front Bumper Fascia Air Deflector Replacement

Front Bumper Fascia Air Deflector Replacement

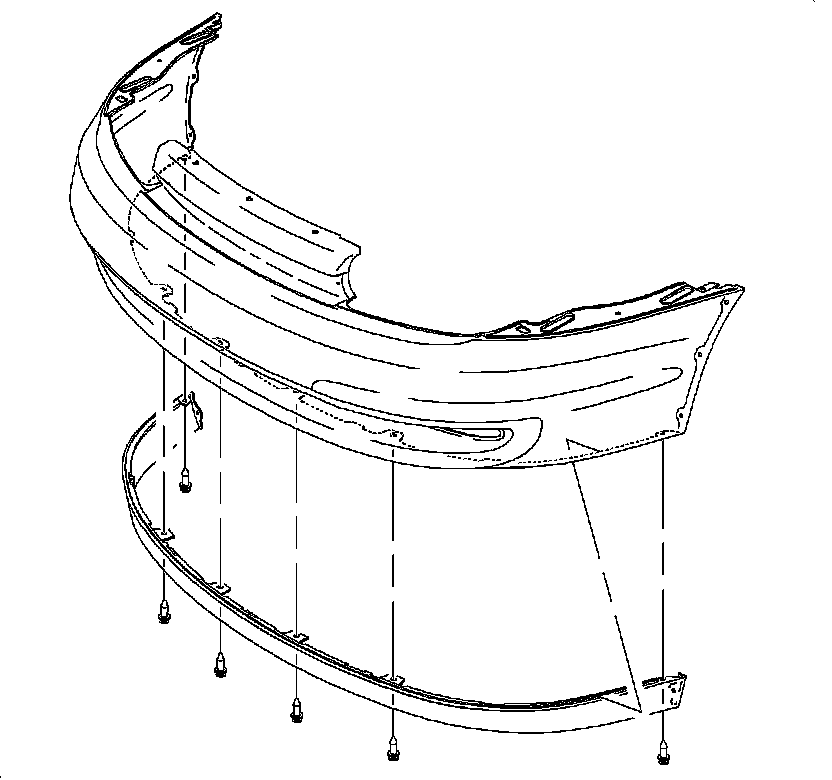

Removal Procedure





1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Front Bumper Fascia Replacement) .
2. Remove the push-in retainers from the outer edge of the front air deflector to the fascia.
3. Remove the front air deflector from the fascia.



Installation Procedure





1. Position the lower deflector to the fascia.
2. Install the push-in retainers to the front air deflector to the fascia.
3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Front Bumper Fascia Replacement) .
