Chart 23

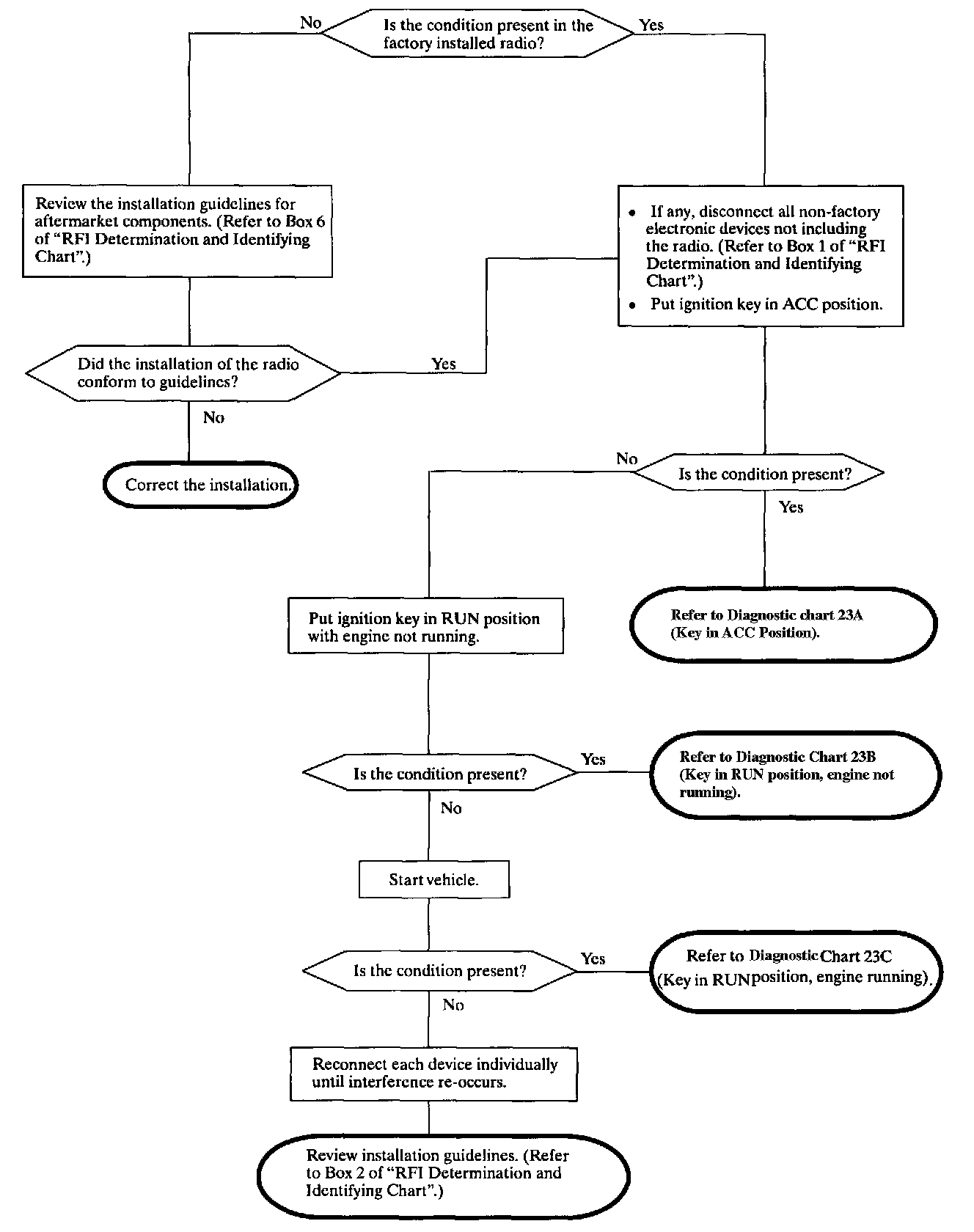

Diagnostic Chart 23:




Purpose: To determine if condition is RFI and to identify source of RFI condition.
