Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Audio, Display Problems, Inoperative Functions >> Symptom Table

Symptom Table

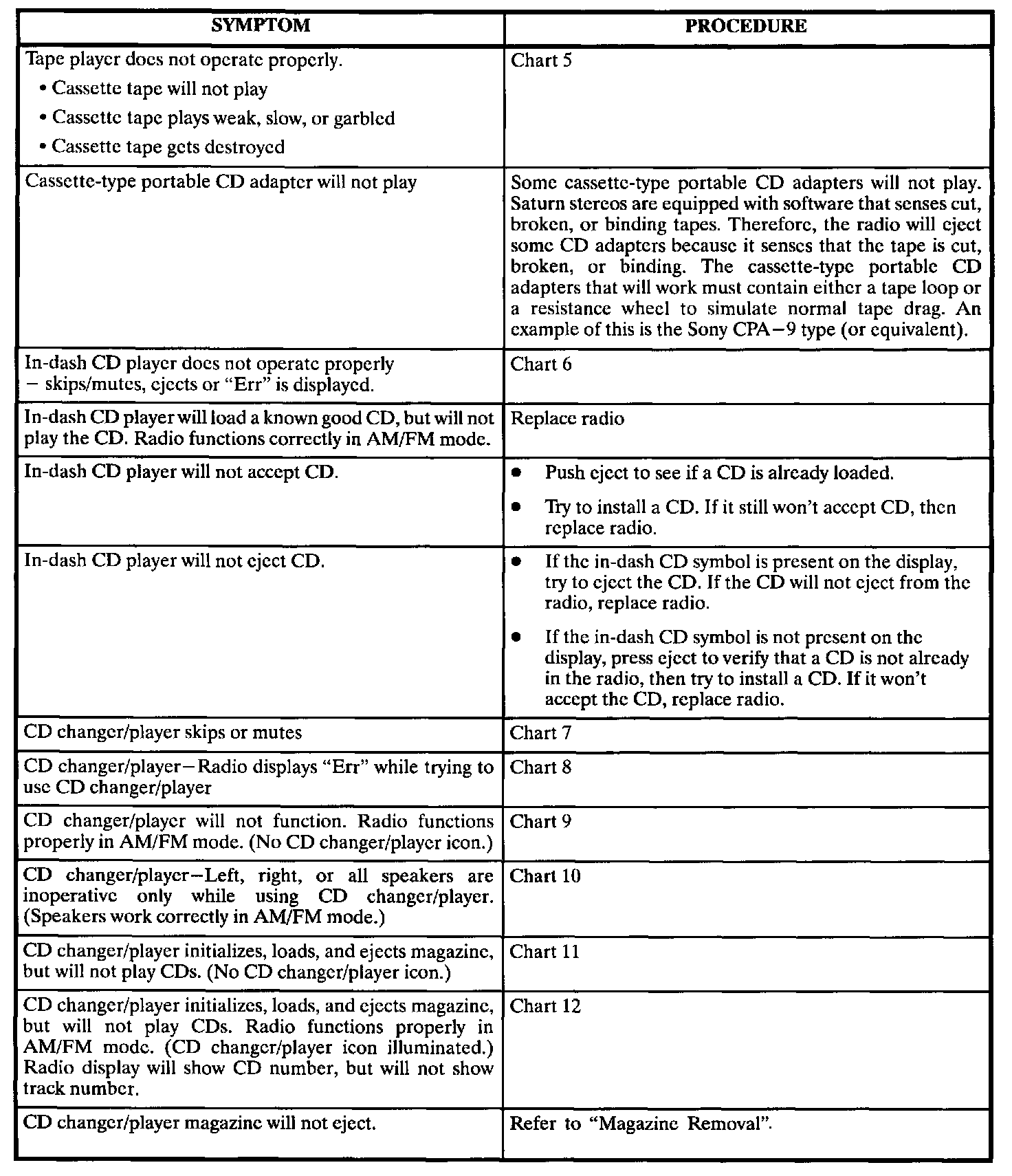

Symptom Table - Hardware Related Failures (No Audio, Display Problems, Inoperative Functions) (Part 1 Of 4):

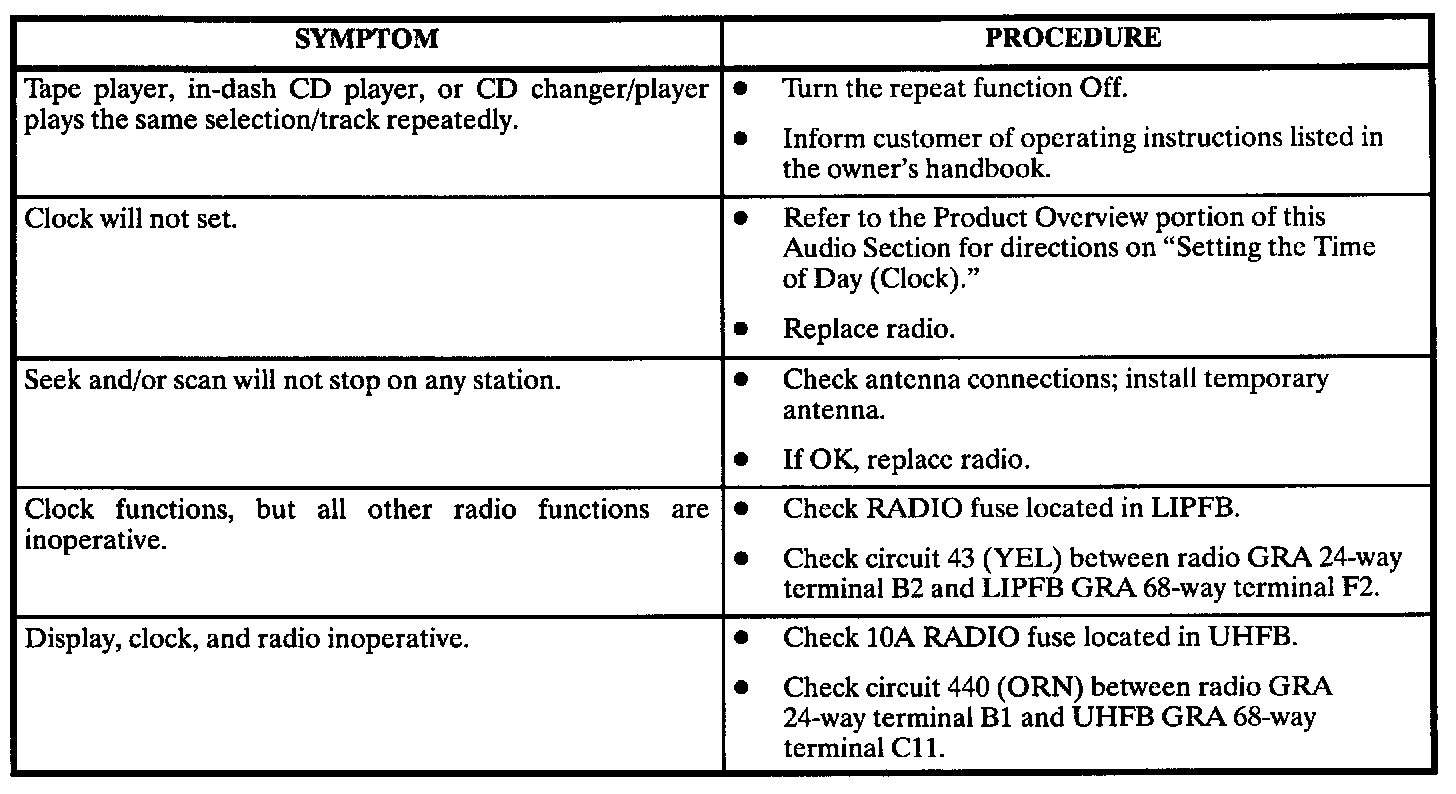

Symptom Table - Hardware Related Failures (No Audio, Display Problems, Inoperative Functions) (Part 2 Of 4):

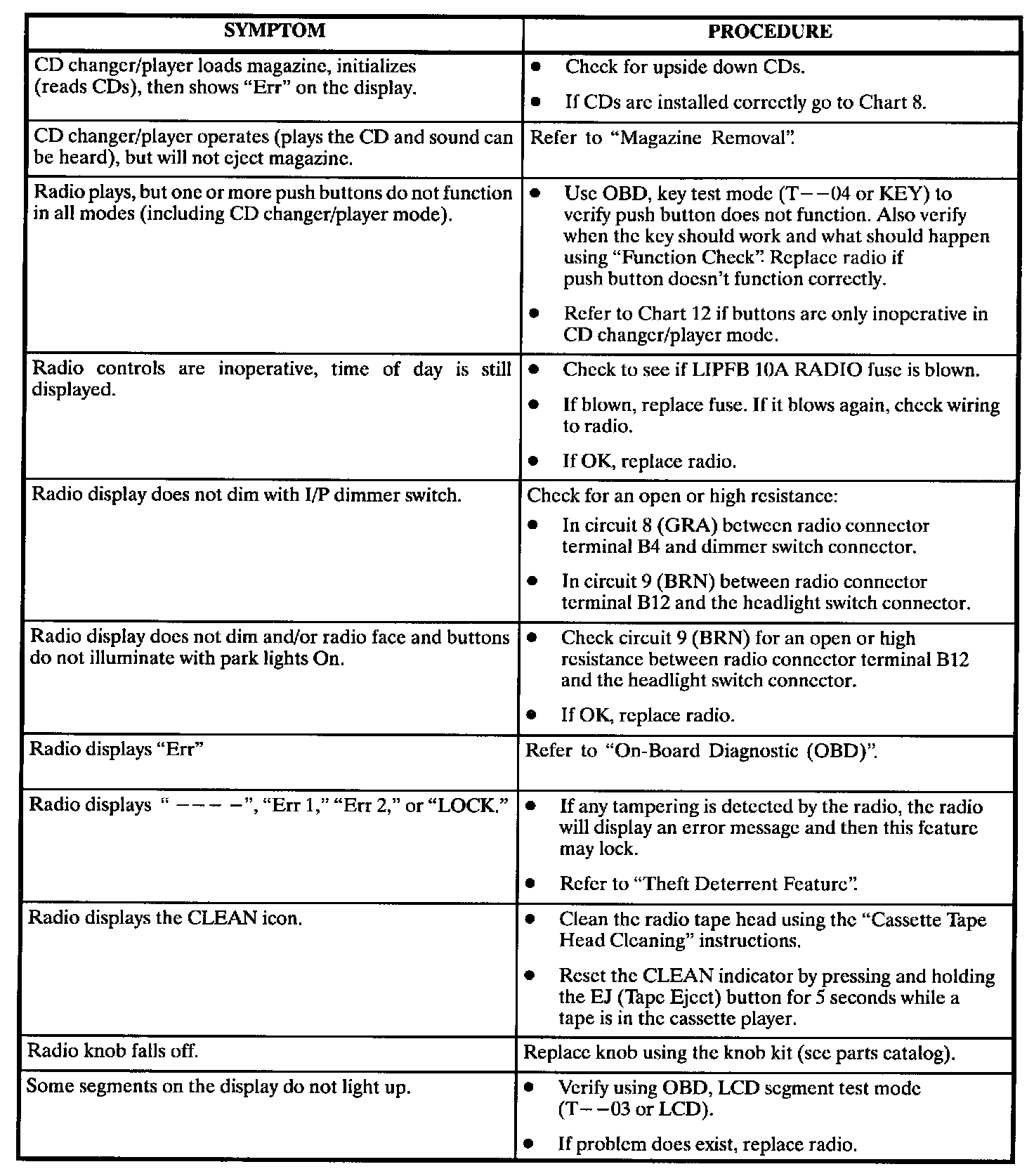

Symptom Table - Hardware Related Failures (No Audio, Display Problems, Inoperative Functions) (Part 3 Of 4):

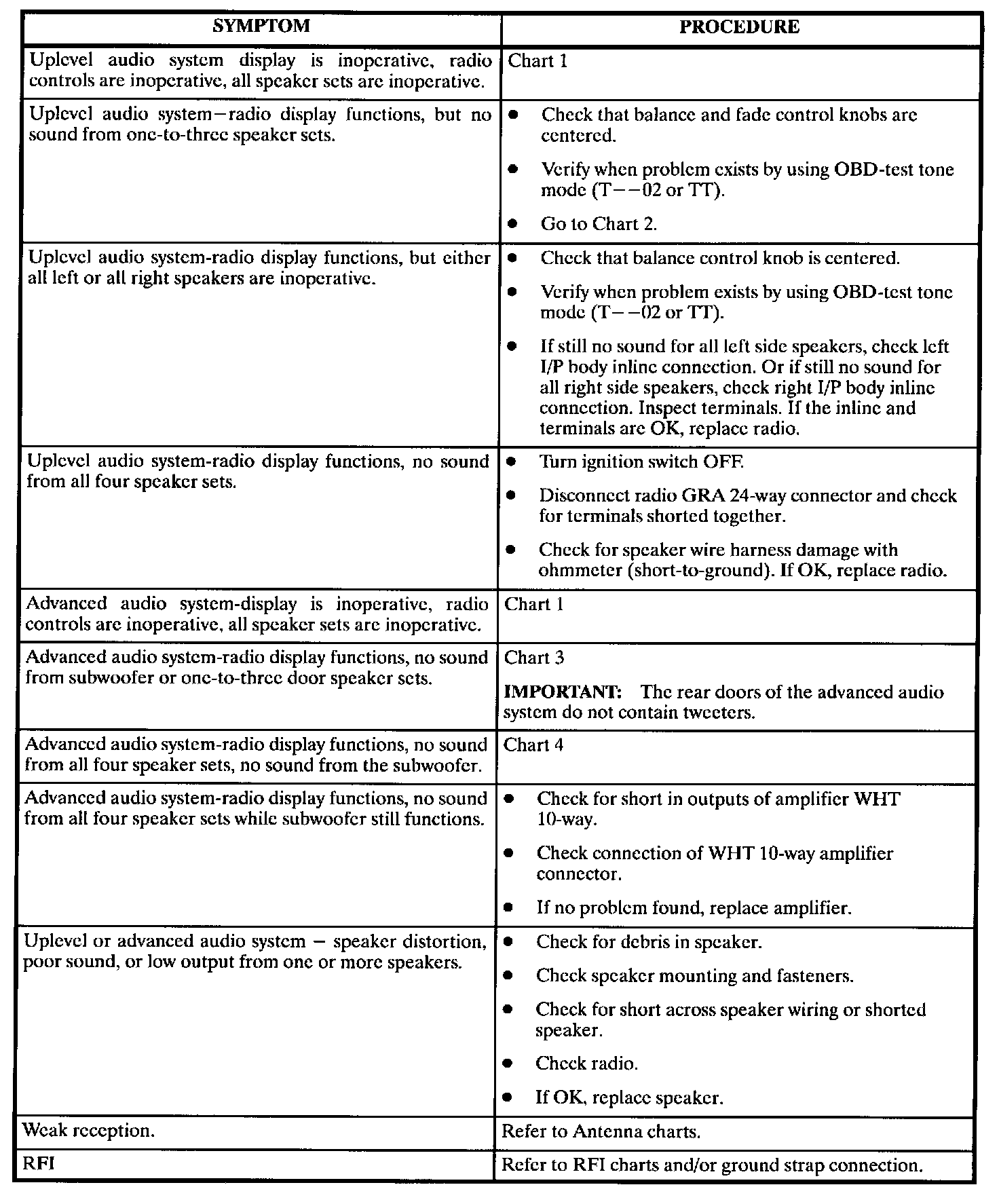

Symptom Table - Hardware Related Failures (No Audio, Display Problems, Inoperative Functions) (Part 4 Of 4):
