Tweeter Speaker - Rear Door (Uplevel Audio System Only)

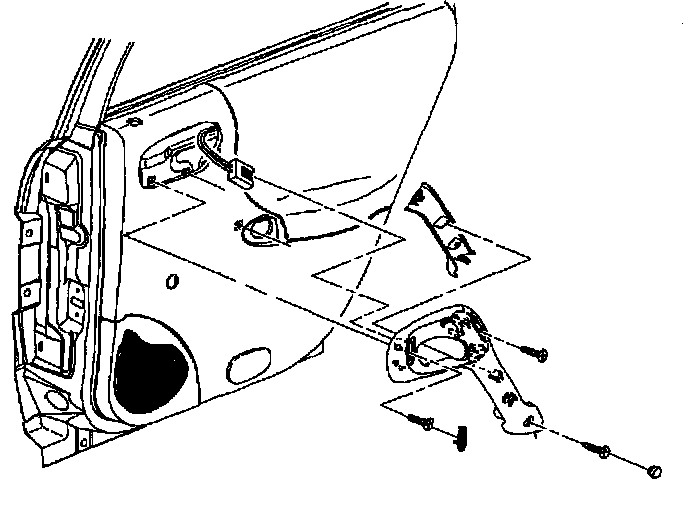

REMOVAL




1. Using a small flat blade tool, remove lower fastener plug from inner door handle to expose door handle fastener.
2. Using a small flat blade tool, remove tweeter speaker cover and power door lock switch/cover to expose door handle fastener.
3. On power door lock vehicles, disconnect power door lock harness from power door lock switch.
4. Remove fasteners and remove door handle.
5. Remove door handle inner grip by unsnapping retainers.

IMPORTANT: Observe wiring harness routing inside door handle to aid in installation.




6. Disconnect tweeter speaker harness while holding the inner door handle away from the door trim panel.
7. Remove tweeter speaker.

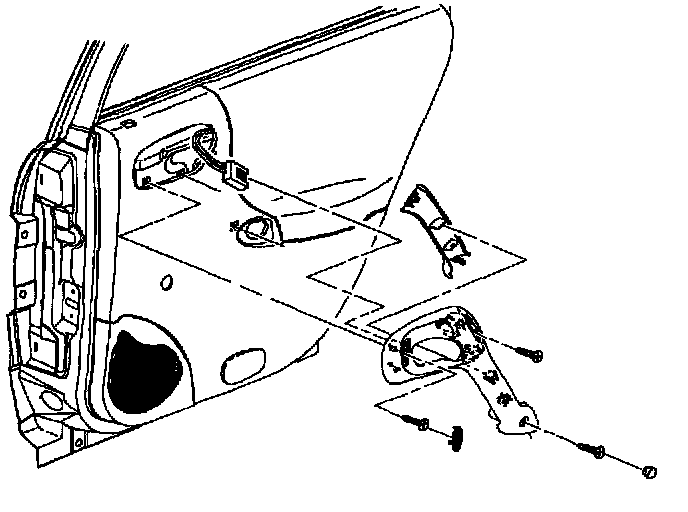

INSTALLATION




1. Install tweeter speaker to inner door handle assembly.
2. Connect tweeter speaker wiring harness to tweeter speaker.




3. Route door wiring harness to inner door handle assembly.
4. Snap door inner door handle grip to door handle making sure not to pinch door wiring harness.
5. Tuck door handle under upper weatherstrip and install inner door handle with fasteners.

Torque: 1.5 Nm (13 in-lbs).

6. Install door handle fastener lower plug.
7. Snap tweeter speaker cover into place.
8. On power door lock vehicles, connect power door lock harness and snap door lock switch into place.
9. On non-power door lock vehicles, snap cover into place.
