Tweeter Speaker - Front Door

REMOVAL

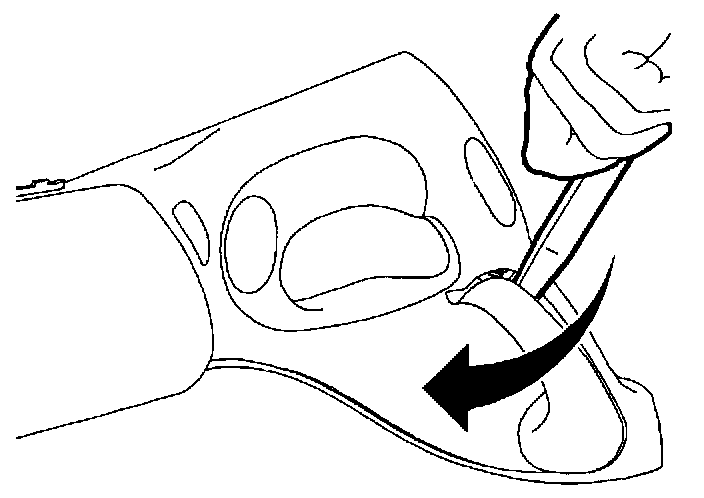

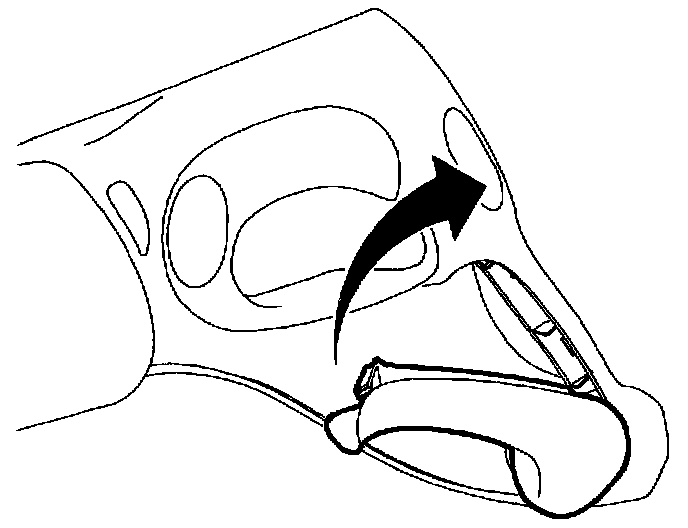

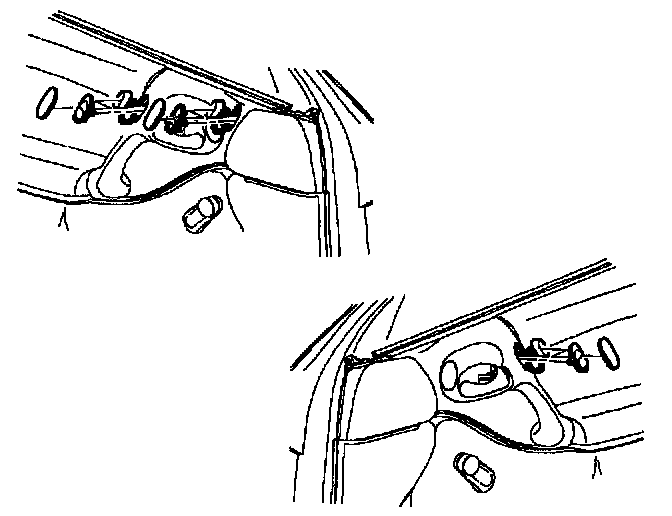

1. Insert trim tool into door handle grip then twist tool to disengage grip from handle and expose door handle fastener.

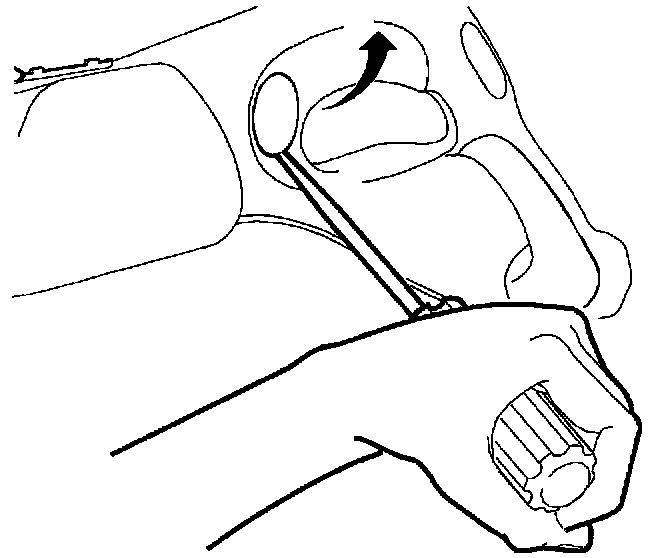

2. Using a small flat blade tool, disengage power door lock switch (or cover on a non-power door lock vehicle) to expose door handle fastener.
3. On power equipped vehicles, disconnect power door lock switch wiring harness and remove switch.
4. Using a small flat blade tool, gently pry on tweeter speaker cover to remove speaker cover and expose attaching fastener.




5. On Driver's side, using a small flat blade tool, disengage power mirror switch (or cover on non-power mirror vehicles) to expose door handle fastener.
6. On Driver's side with power mirrors, disconnect power mirror switch connector and remove power mirror switch.




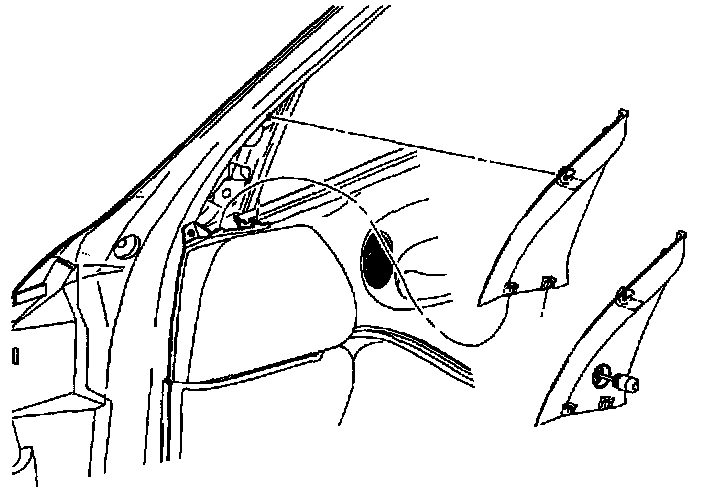

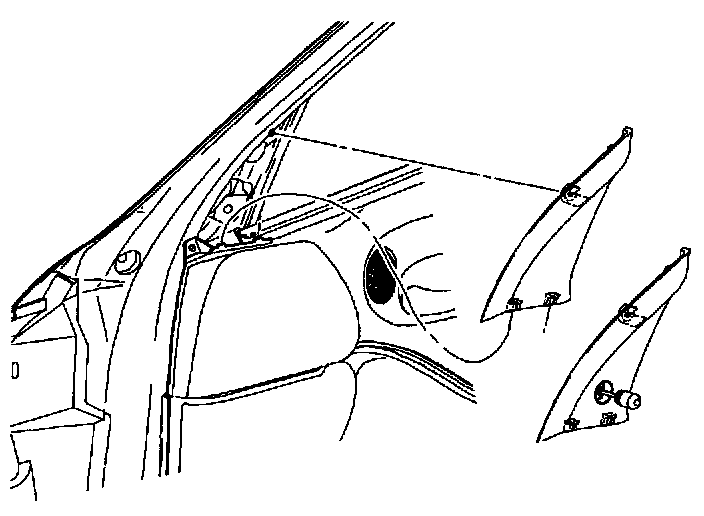

7. Pull gently to remove mirror trim panel to expose door handle fastener.

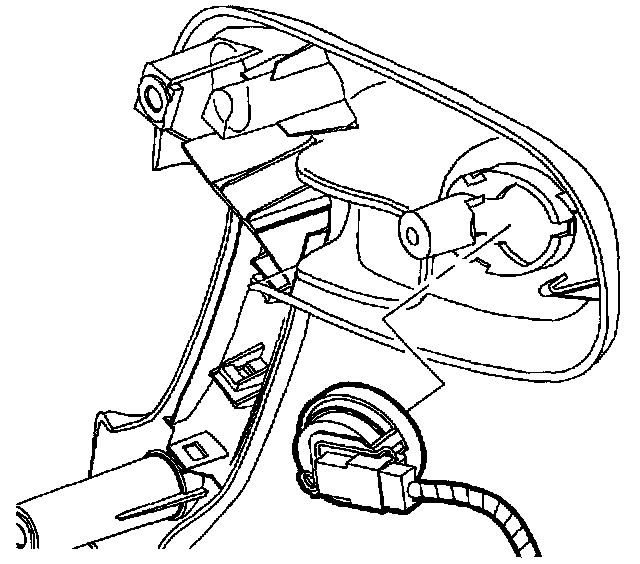

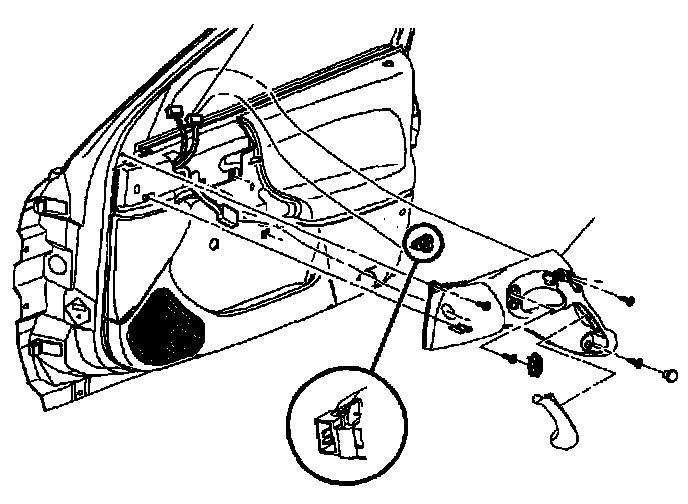

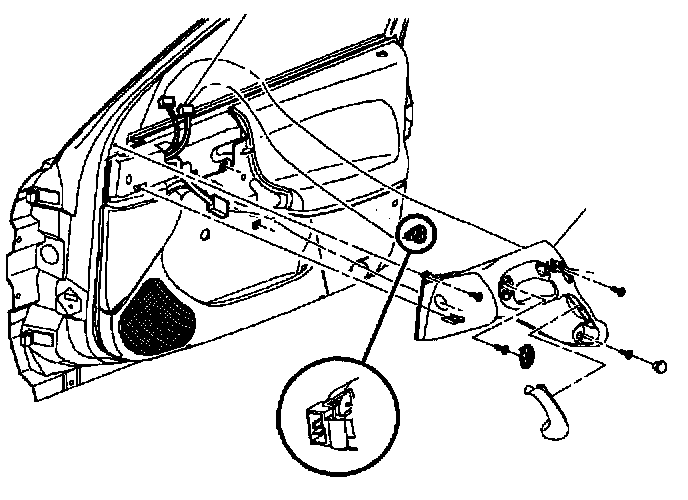

8. Remove door handle fasteners and while holding inner door handle away from the door trim panel, disconnect tweeter speaker harness.
9. Remove tweeter speaker.

INSTALLATION




1. Install tweeter speaker to inner door handle assembly.
2. While holding the door handle assembly, connect tweeter speaker wiring harness.




3. If equipped, route power door lock and power mirror wiring harnesses through the door handle opening.
4. Tuck door handle under door trim panel upper weather strip, then install door handle with door handle fasteners.

Torque: 1.5 N.m (13 in-lbs.)




5. Snap door handle grip into place.
6. Snap tweeter speaker cover into place.




7. Snap mirror trim panel into place.




8. On non-power equipped vehicles, snap covers into place.
9. On power equipped vehicles, connect power door lock switch and power mirror switch to harness connectors and snap switches into place.
10. Operate power locks, power mirrors, and speakers to ensure proper operation.
