Chart 6 - Decklid/Liftgate Inoperative Lock & Unlock Operate Normally

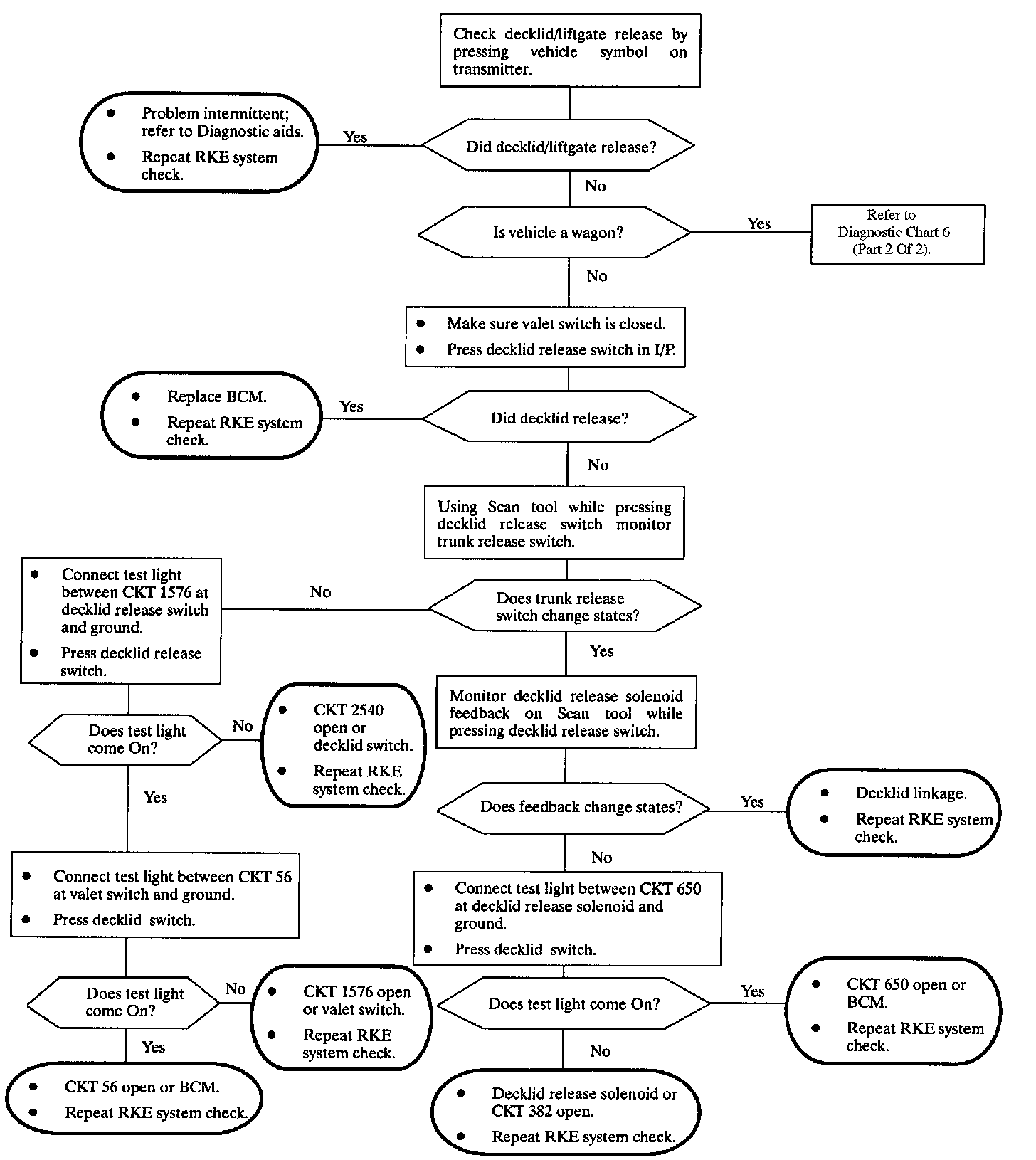

Diagnostic Chart 6 (Part 1 Of 2):

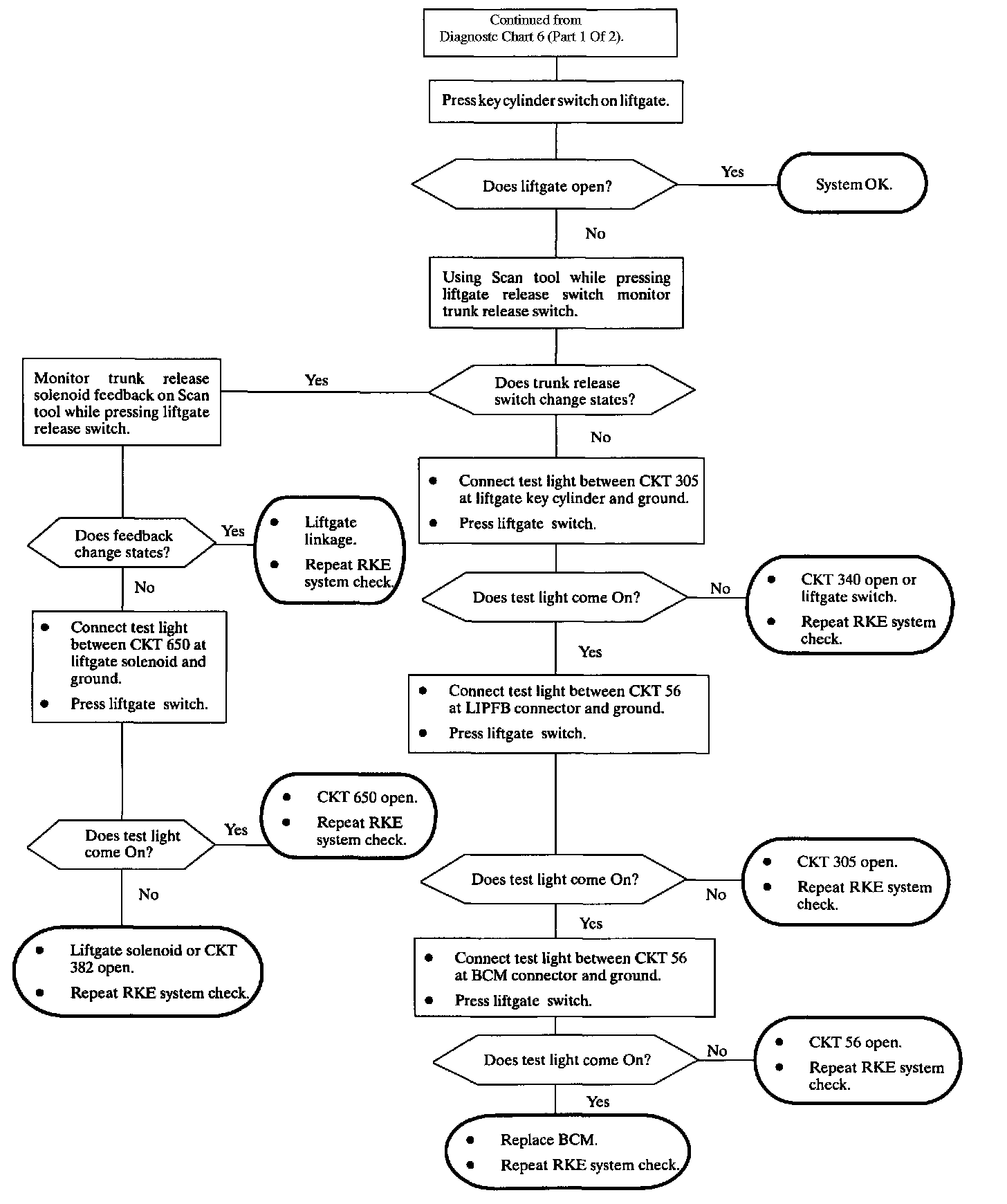

Diagnostic Chart 6 (Part 2 Of 2):




Was the RKE system check performed? If not, perform RKE system check to make sure system is operating as designed.
