Roof Mounted Antenna Mast and Base

REMOVAL




1. Remove roof mounted antenna mast by turning it counterclockwise.

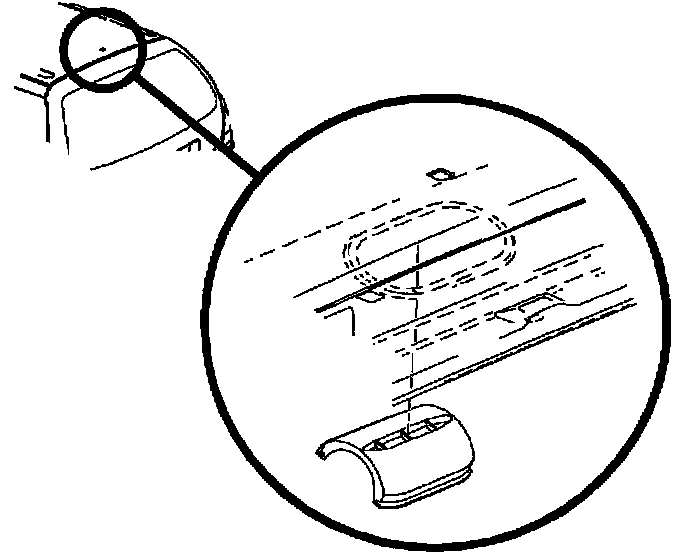

2. Remove rear headliner molding.

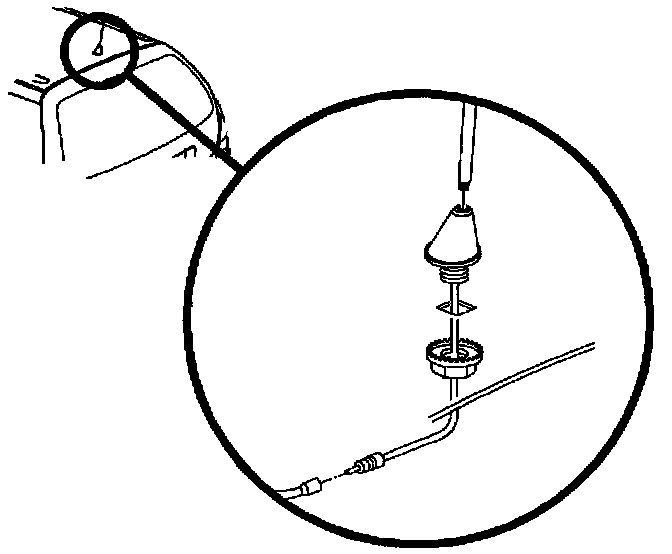

3. Remove rear dome lamp.
4. Remove rear dome lamp heat shield.




5. Disconnect coax antenna cable from antenna base cable.
6. Remove nut that secures antenna base to the roof by accessing it through the dome lamp opening.
7. Remove antenna base from roof panel hole.

INSTALLATION




1. Route antenna base cable through roof panel hole.
2. Install and position threaded end of antenna base to roof panel.
3. Secure antenna base to roof panel with nut.

Torque: 5 N.m (44 in-lbs)

4. Connect coax antenna cable to antenna base cable.




5. Install rear dome lamp heat shield.
6. Install rear dome lamp.

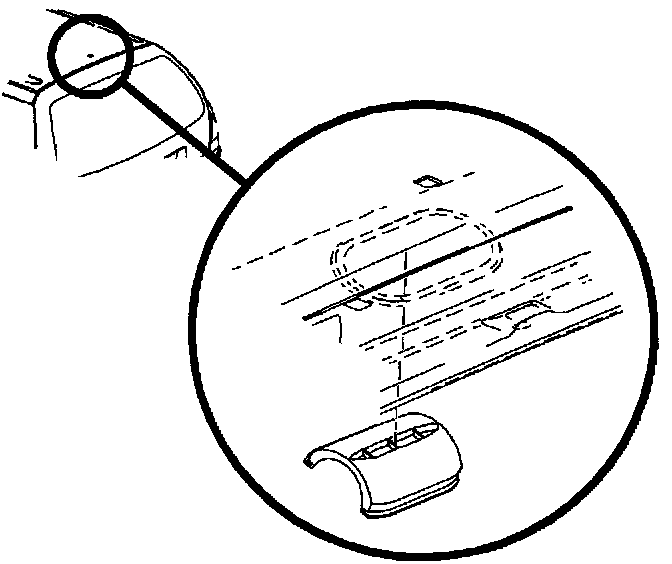

7. Install rear headliner molding.
8. Install antenna mast to antenna base and hand tighten.
