P0712

Diagnostic Chart:

Schematic:

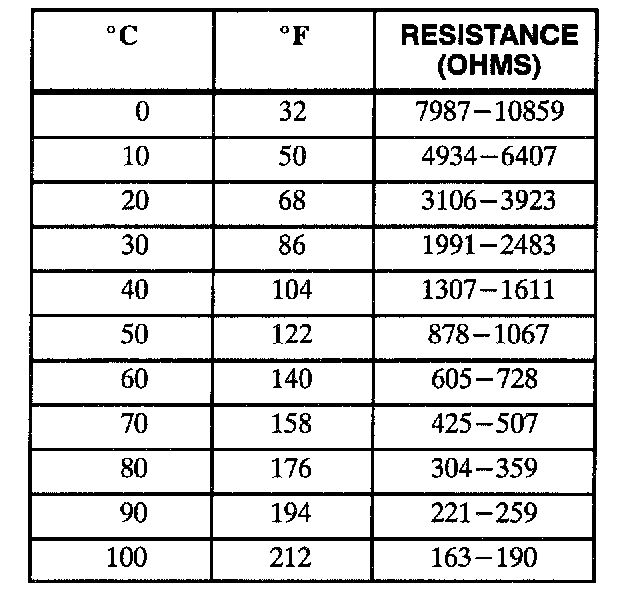

TFT SENSOR - Temperature To Resistance (Approximate):

The Transaxle Fluid Temperature (TFT) sensor is a negative coefficient thermistor. The TFT sensor is part of the Transaxle Fluid Pressure (TFP) switch assembly. The TCM supplies a five volt reference signal to the sensor on circuit 1227. When the transmission fluid is cold, the sensor resistance is high and the TCM senses a high signal voltage. As the transmission fluid warms, the sensor resistance decreases and the TCM senses lower voltage. The TCM uses the TFT reading in order to control the Torque Converter Clutch (TCC), line pressure adjustments, and temperature compensated shifts. DTC P0712 is a type C DTC.

DTC PARAMETERS
DTC P0712 will set if TFT is less than 0.33 volts for ten seconds when:
- Ignition voltage is between 8 and 18 volts.
- Ignition is On.

DIAGNOSTIC AIDS
DTC P0712 is not set when the transaxle is overheated. That would cause DTC P0218 - Transmission Fluid Over Temperature to set.

IMPORTANT: The TCM uses two internal circuits to identify transaxle temperature. One circuit is used for temperatures of 48°C (118°F) and below. If either circuit has failed the DTC will set, however the temperature may look normal in the other range.

Test low scale with engine at room temperature and high scale with engine at normal operating temperature (above 70°C [158°F]).
